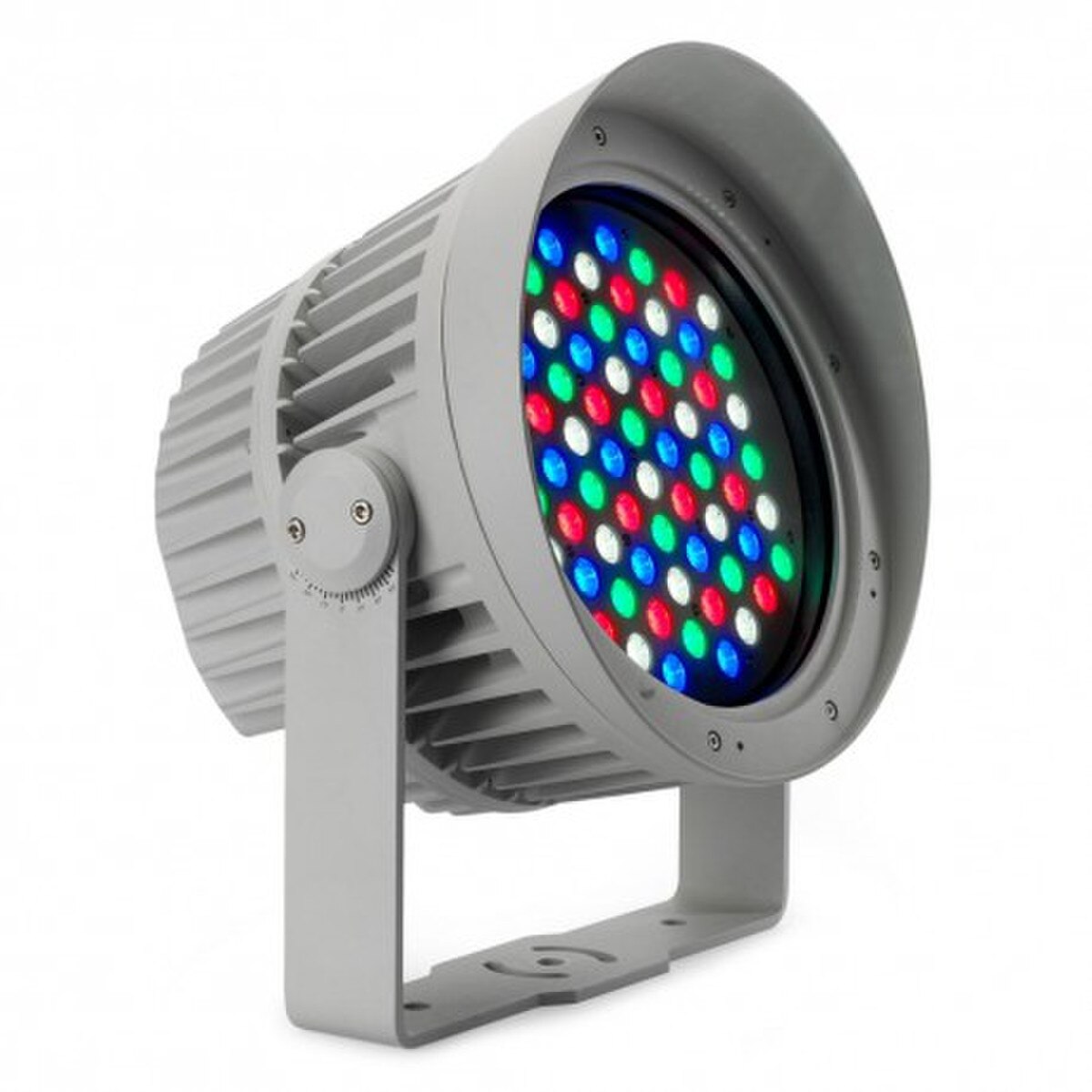

Martin EXTERIOR WASH 200 - 7°

Exterior™ Wash 200 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate mid-sized structures and building facades. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 200 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white

• Narrow beam configuration with 6 beam angle options
• Functional and discreet optional snoot which integrates with the design of the fixtures
• Control via DMX, RDM and OLED display

Features:

• Powerful single color R,G,B,W LEDs
• Up to 6500 lumens at full white (RGBW)
• Six different beam angle options
• Internal power and control (DMX, RDM and OLED display)
• Rugged IP66 housing
• 0–100% intensity control

Specifications:

• PHYSICAL
  • Length: 270 mm (10.7 in.)
  • Width: 334 mm (13.2 in.)
  • Height: 382 mm (15.1 in.)
  • Weight: 13.0 kg (28.7 lbs.)
• DYNAMIC EFFECTS
  • Color mixing: RGBW
  • Intensity: 0 - 100%
• CONTROL AND PROGRAMMING
  • Control systems: DMX, RDM
  • Setting, addressing, standalone programming: Control panel with OLED display
  • DMX channels: 3-5 depending on DMX mode
  • Receiver: RS-485
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Firmware update: Serial upload via DMX link
• OPTICS
  • Light source: 16 x R, 18 x G, 16 x B, 18 x W single-color LEDs
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
  • LED manufacturer: Cree
  • Beam Angle Options:
  • No diffuser: 7.5°
  • Narrow diffuser: 11.5°
  • Medium diffuser: 25°
  • Wide diffuser: 36°
  • Very wide diffuser: 60°
  • Asymmetric diffuser: 59° x 14.5°
  • *Figure obtained under manufacturer's test conditions
• PHOTOMETRIC DATA
  • CRI (Color Rendering Index) : > 70
  • CCT: 6500 K (White LED)
  • Total luminous output: 6500 lumens
• CONSTRUCTION
  • Housing: Cast aluminum
  • Color: Light grey (white, black or other colors available on request)
  • Ingress protection rating: IP66
  • Surface treatment: Anodized and electrostatic powder-coated
  • Effective Projected Area (EPA): 0.1 m² including snoot
  • Impact resistance: IK08 (with control panel display cover plate installed)
  • Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
  • Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
  • 0,7g RMS Random (IEC 60068-2-64)
  • RoHS compliant
• INSTALLATION
  • Mounting: Adjustable yoke
  • Orientation: Any
  • Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
• CONNECTIONS
  • Power connection: 1.8 m (5.9 ft.) cable tail without connector
  • Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm
  • Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm
  • Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail
  • All cable entries: IP68 cable gland
• ELECTRICAL
  • AC power: 100 - 240 / 277 V nominal, 50/60 Hz
  • Power supply unit: Integrated, auto-sensing multi-voltage
  • Power Consumption: 3 W (steady state, all LEDs at zero intensity)
  • Typical half-cycle RMS inrush current: 10.3 A
  • Surge protection: 4 KV
  • Maximum total power consumption: 185 W
• TYPICAL POWER AND CURRENT
  • 100 V, 60 Hz: 1.6 A, 160 W, PF 0.99
  • 120 V, 60 Hz: 1.35 A, 160 W, PF 0.99
  • 230 V, 50 Hz: 0.75 A, 160 W, PF 0.94
  • 277 V, 60 Hz: 0.65 A, 160 W, PF 0.89
  • Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
• THERMAL
  • Cooling: Convection
  • Maximum ambient temperature (Ta max.): 45° C (113° F)*
  • Minimum ambient temperature (Ta min.): -30° C (-22° F)**
  • Maximum surface temperature, steady state, at 40° C ambient: 55° C (131° F)
  • Total heat dissipation (calculated, +/- 10%): 485 BTU/hr
  • *Above this temperature, the fixture regulates output to protect from overheating
  • **Power must be maintained below -20° C (-4° F)
• APPROVALS
  • EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
  • EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5
  • US safety: ANSI/UL 1598
  • US EMC: 47 CFR Part 15 Class A
  • Canadian safety: CSA C.22.2 No. 250
  • Australia/NZ: RCM
• INCLUDED ITEMS
  • Cover plate for control panel
• ACCESSORIES
  • Exterior Wash 200 Series, narrow diffuser kit: P/N 91610154
  • Exterior Wash 200 Series, medium diffuser kit: P/N 91610153
  • Exterior Wash 200 Series, wide diffuser kit: P/N 91610152
  • Exterior Wash 200 Series, very wide diffuser kit: P/N 91610151
  • Exterior Wash 200 Series, asymmetric diffuser kit: P/N 91610150
  • Exterior Wash 200 Series, glare shield / snoot: P/N 91611745
  • Exterior Wash 200 Honeycomb Louvre: P/N 91611857
• RELATED ITEMS
  • Martin Companion Cable: P/N 91616091
• ORDERING INFORMATION
  • Exterior Wash 200, 7°, EU, aluminum: P/N 90509087
  • Exterior Wash 200, 7°, US, aluminum: P/N 90509090
