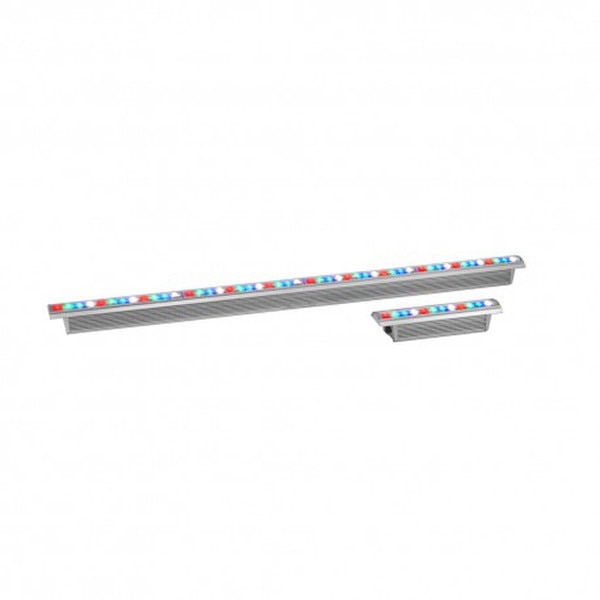

Martin Exterior Linear 300 Cove 120 deg. RGBW

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

Exterior™ Linear 300 Cove RGBW feature superb color mixing and a uniform light distribution at a beam angle of 120°, suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures

The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

• Linear LED fixture with high output color mixing
• Robust outdoor-rated fixture available in two lengths
• Easy installation with integrated power supply

Features:

• Wide spread and uniform color mixing.
• Very low power consumption (max 20 W/ft).
• No extra control boxes required – connects directly to line voltage and DMX.
• Internal power and control (DMX, RDM and magnetic tool).
• Super rugged IP66 housing.
• 0–100% intensity control.

Specifications:

• PHYSICAL
  • 300 series (1 ft.) fixtures:
  • Length: 305 mm (12.0 in.)
  • Width: 72 mm (2.8 in.)
  • Height: 95 mm (3.8 in.) including bracket
  • Weight: 1.6 kg (3.6 lbs.)
• DYNAMIC EFFECTS
  • Color mixing: RGBW
  • Intensity: 0 - 100%
• CONTROL AND PROGRAMMING
  • Control systems: DMX, RDM
  • Control resolution: 8-bit DMX control of each color
  • User interface: Magnetic button to call up fixture status and test fixture
  • DMX compliance: USITT DMX512/1990 RDM
  • RDM compliance: ANSI/ESTA E1.20
• OPTICS
  • Light source: Quad-color OSRAM Ostar
  • Beam angle: 120°
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
  • *Figure obtained under test conditions
• PHOTOMETRIC DATA
  • Exterior Linear 300 RGBW Cove:
  • Total luminous output: 874 lumens
  • Red output: 134 lumens
  • Green output: 296 lumens
  • Blue output: 42 lumens
  • White output: 308 lumens
• CONSTRUCTION
  • Housing: Aluminum
  • Front: Clear polycarbonate with diffuser
  • Protection rating: IP66
  • IK rating: IK08
  • Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
  • Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
  • 0,7g RMS Random (IEC 60068-2-64)
  • RoHS compliant
• INSTALLATION
  • Orientation: Any
  • Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
• CONNECTIONS
  • Power/data in/thru: 8-pin custom connectors
• ELECTRICAL
  • AC power: 100-277 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)
  • Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)
  • Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A
  • Surge protection: 4 KV
• TYPICAL POWER AND CURRENT
  • 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05
  • 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05
  • Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
• THERMAL
  • Cooling: Convection
  • Maximum ambient temperature (Ta max.): 45° C (113° F)
  • Minimum ambient temperature (Ta min.): -30° C (-22° F)
  • Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
• APPROVALS
  • EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3
  • US safety: ANSI/UL 1598
  • US EMC: 47 CFR Part 15 Class B
  • Canadian safety: CSA C22.2 No. 250.0
  • Australia/NZ: RCM
  • Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)
• ACCESSORIES
  • Magnetic Test Tool, set of 10: P/N 91610139
  • Cables:
    • Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    • Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    • Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    • Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    • Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    • Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    • Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    • Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    • Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    • Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    • Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    • Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
  • End Termination Cap for power + data link: P/N 91611766
  • Optical:
    • Exterior Linear 300 Glare Shield, set of 4: P/N 91611752
• RELATED ITEMS
  • Martin™ RDM 5.5 Splitter: P/N 90758150
  • Martin Companion Cable: P/N 91616091
  • Martin Companion Software Suite (including firmware uploader)
• ORDERING INFORMATION
  • Exterior Linear 300 RGBW COVE: P/N 90356976
