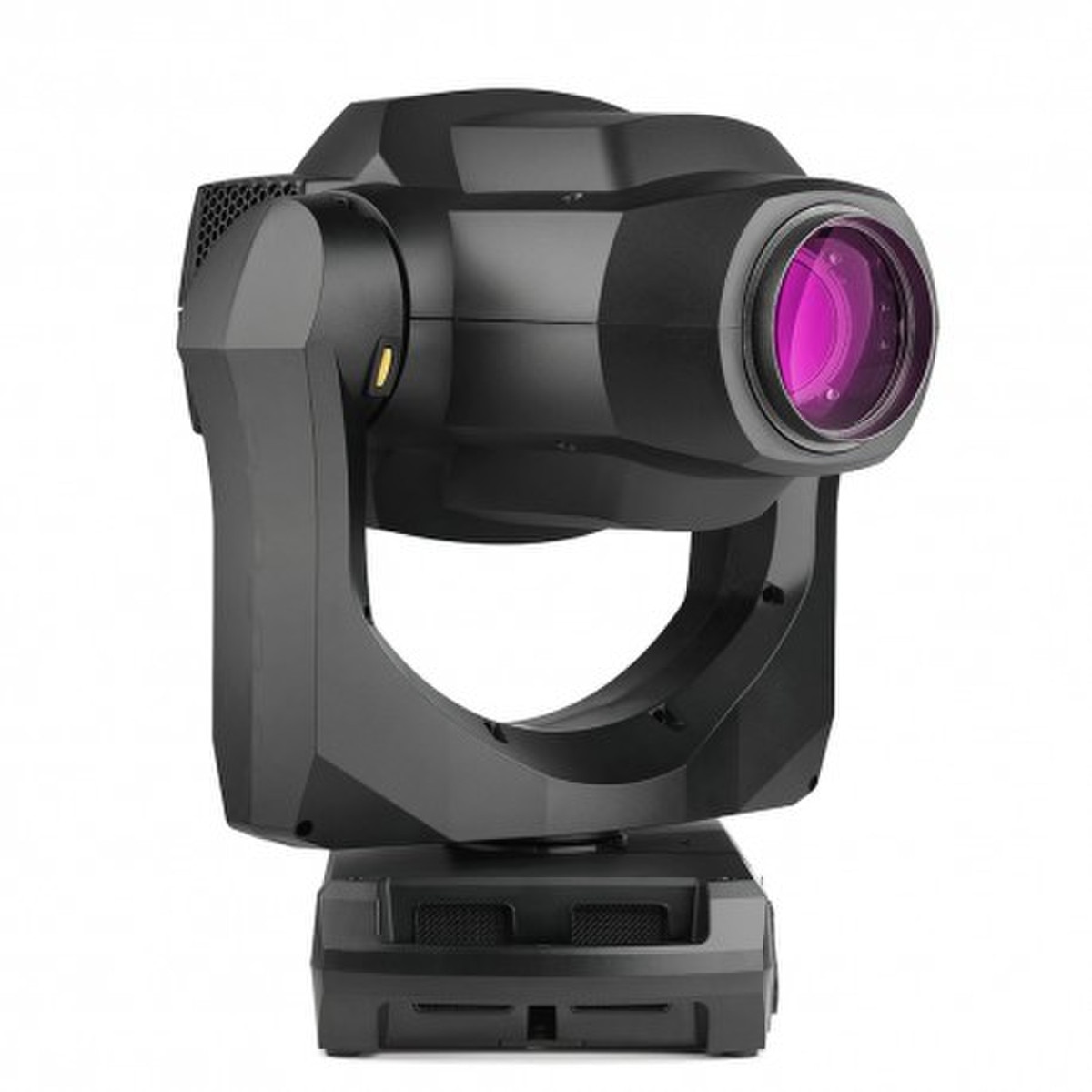

Martin MAC Allure Profile SIP

The MAC Allure™ Profile features a novel RGBW light engine with unique 7-segmented beam control. With instant color control and pixelated beam, the MAC Allure Profile enables dynamic projection and mid-air effects, previously not possible. The proprietary light engine sets new standards in compactness and efficiency, previously associated with larger, costlier fixtures. To ease programming and content creation, this is also the first lighting fixture to incorporate Martin's P3 control. The pixelated beam can still be controlled or pixel-mapped via DMX and Art-Net protocols, however, switching or cross-fading to P3 or vice versa is now instantly possible. Designed to support rental and install clients, the MAC Allure Profile is ideal for concert/touring, TV, corporate, houses of worship, concert venues, nightclubs, and cruise ships.

Features:

• First pixelated spot with light and color engine divided into seven full color pixels
• Truly sustainable workhorse moving head
• Integrated Martin P3 visual control as well as DMX, Art-Net and sACN incorporated onboard
• Built for pixel mapping with an all solid state color mixing system, instant color and intensity response, and seven pixel beam technology
• High and precise refresh rates ensure no flicker or banding on any broadcast application
• Color calibrated system excels on subtle pastels and white tones to ensure consistent colors across fixtures
• Boasts an extremely compact footprint in spite of its powerful performance features

Specifications:

• PHYSICAL
  • Length: 385 mm (15.2 in.)
  • Width: 410 mm (16.2 in.) across yoke
  • Height: 609 mm (24.0 in.) maximum 603 mm (23.8 in.) head straight up
  • Weight: 17.6 kg (38.8 lbs.)
  • Minimum center-to-center distance in side-by-side installation: 510 mm (20.1 in.)
• DYNAMIC EFFECTS
  • Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
  • Color mixing: RGB(W), independently variable 0 - 100%
  • Color temperature control: Variable 2000 - 8000 K
  • Color wheel: Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color
  • Rotating gobo wheel: 6 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
  • Iris: Variable 0 - 100% including pulse effects
  • Zoom: Motorized
  • Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
  • Prism: 4 facet, fully indexed
  • Dimmer/shutter: 0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout
  • Dimming options: Choice of four dimming curves
  • Pan: 540°
  • Tilt: 268°
  • Position correction system: Absolute position monitoring
• CONTROL AND PROGRAMMING
  • 16-bit control: Dimming, color, rotating gobos, zoom, focus, pan and tilt
  • Setting and addressing: Control panel with backlit graphic display and 4 buttons or via DMX
  • DMX channels: 32/68
  • Fixture Identification: User-settable ID number
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485
  • Fixture software update: USB memory device or over DMX link
• OPTICS
  • Zoom range: 12° - 36° one-tenth peak (1:3)
  • Light source: 7 x 60W RGBW LEDs
  • Total LED engine power: ~420 W
  • Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
  • *Figure obtained under manufacturer's test conditions
• PHOTOMETRIC DATA
  • Light engine luminous output: 14,000 lumens
  • Fixture luminous output: 6500 lumens
  • Calibrated default white: 6500 K
  • CRI (Color Rendering Index) : >80
  • CQS (Color Quality Scale): 88
  • TM-30 Rf (IES TM-30-15 Fidelity Index): 82
  • TM-30 Rg (IES TM-30-15 Gamut Index): 109
  • TLCI (Television Lighting Consistency Index): 82
• CONSTRUCTION
  • Housing: High-impact flame-retardant thermo-plastic
  • Color: Black (white housing option available, made to order)
  • Protection rating: IP20
• INSTALLATION
  • Mounting Parts: 2 pairs of 1/4-turn locks
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (8 in.)
  • Minimum distance to illuminated surfaces: 1.0 m (3.3 ft.)
• CONNECTIONS
  • AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector or NAC3FX-M connector)
  • DMX and RDM data in/out: 5-pin locking XLR
  • Ethernet data: Neutrik EtherCon in/out
• ELECTRICAL
  • AC power: 120-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Power Consumption: 73 W (all effects static, zero light output)
  • Half-cycle RMS inrush current at 230 V, 50 Hz: 16.6 A
• TYPICAL POWER AND CURRENT
  • Typical power data, extended color mode, all LEDs at 100% intensity:
    • 100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
    • 120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
    • 208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
    • 230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
    • 240 V, 50 Hz: 2.0 A, 480 W, PF 0.97
  • Typical power data, calibrated mode, full intensity at 6500 K:
    • 100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
    • 120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
    • 208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
    • 230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
    • 240 V, 50 Hz: 1.6 A, 370 W, PF 0.95
  • Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
• THERMAL
  • Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum surface temperature, steady state, Ta=40° C: 75° C (167° F)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)
  • Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
• APPROVALS
  • EU safety: EN 60598-2-17, EN 62471, EN62493
  • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: FCC Part 15 Class B
  • Canadian safety: CSA C22.2 No. E598-2-17
  • Canadian EMC: CAN ICES-003(B)/NMB-003(B); CAN ICES-005 (B) / NMB-005 (B)
  • Australia/NZ: RCM
  • Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
• INCLUDED ITEMS
  • Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
• ACCESSORIES
  • SIP Packaging MAC Allure™: P/N 91611860
  • Three-unit flight case for MAC Allure™: P/N 91515052
  • Cables, 16 A, for connection to power in chains:
    • Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    • Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
  • Cables, 16 A, for relaying power in chains:
    • Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    • Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    • Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
  • Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
  • Connectors:
    • Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    • Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
    • (*Please order SIP variant fixtures to obtain the required SIP foam flight case inserts)
  • Installation hardware:
    • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    • Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    • Half-coupler Clamp: P/N 91602005
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
• RELATED ITEMS
  • Martin™ RDM 5.5 Splitter: P/N 90758150
  • Martin Companion Cable: P/N 91616091
  • Martin Companion Software Suiter (including firmware uploader) Free download from www.martin.com
