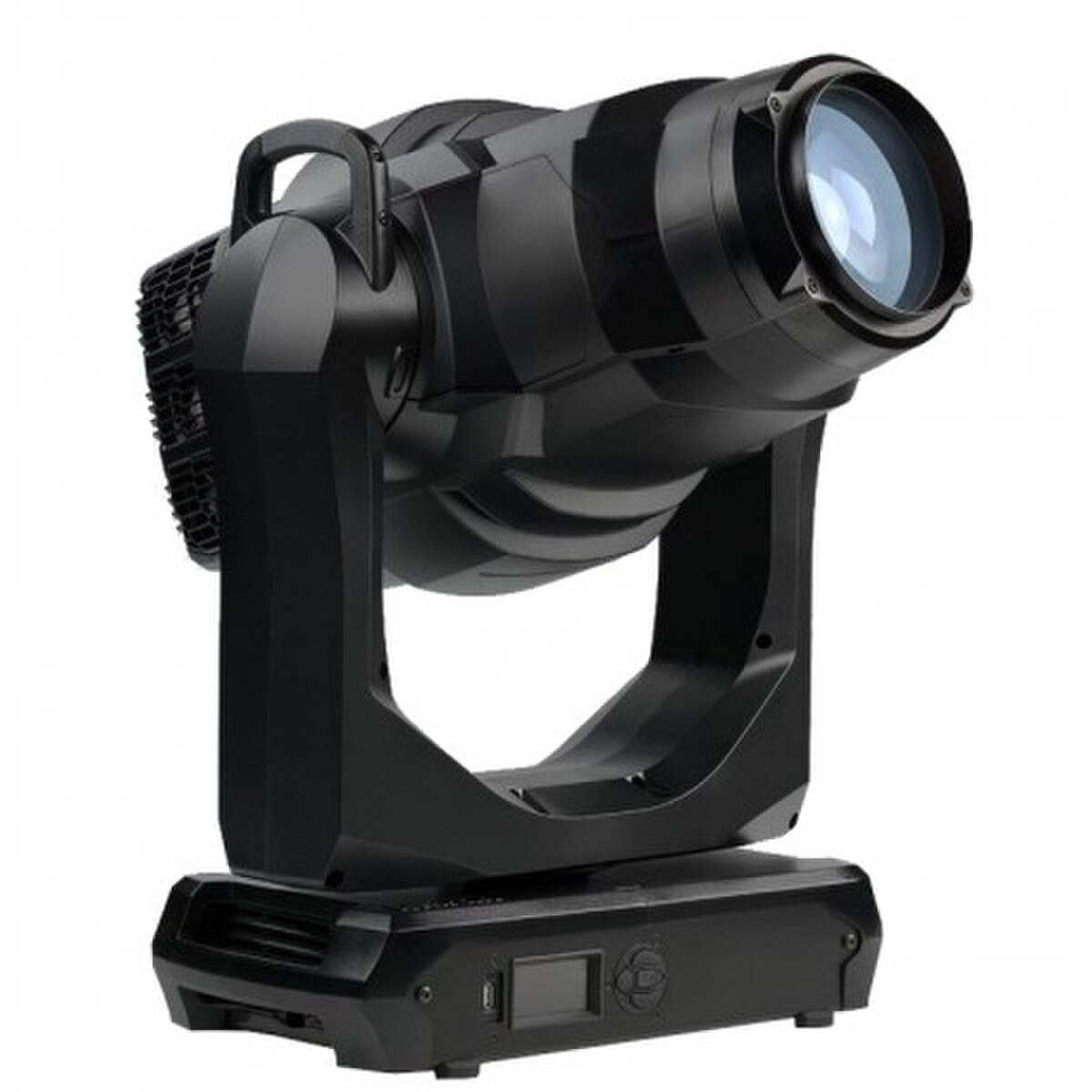

Martin MAC ENCORE PERFORMANCE CLD - SIP

(0)No Reviews yet
$13,486.50
SKU: Martin 90234005HU

Add this item to get free shipping! (Motor Freight Excluded)

Details

MAC Encore™ Performance CLD integrates cutting-edge LED technology with a proprietary and innovative light engine carefully engineered to generate pristine, full spectrum light with ultra-high color rendition. The feature-packed moving head offers unparalleled 6000 K crisp, neutral daylight. Its advanced color mixing system delivers the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Moreover, it offers a fully variable color correction to tungsten/orange.

Features:

  • Unparalleled 6000 K cold white light quality
  • Super silent cooling and effects operation
  • Best-in-class size/weight/performance ratioPure white LED engine with 6000 K CCT
  • A flat field without color temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Ultra-low noise—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY color mixing with a superior palette of colors ranging from light and smooth pastel shades to rich, saturated primaries.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • 1:4 zoom—precise and fast, silent zoom with auto- linked focus.
  • Four framing shutter blades with individual +/- 30° adjustment and entire system rotation of +/- 55° allow for high-precision cue repeats.
  • Five rotating glass gobos with next to zero focal separation from the framing system.
  • Animation wheel with continuous multi-directional rotation and indexing with variable angle, speed and direction.
  • Animotion™ FX System—internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Precise and tight iris with adjustable dynamic effects.
  • Soft frost—a light frost that leaves gobo artwork and framed images visible with a beautiful soft edge.
  • Heavy frost available as an optional accessory.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 mm x W: 480 mm x H: 733 mm (L: 17.8 in x W: 18.9 in x H: 28.9 in).
  • Low weight—31 kg/68 lbs.
  • Foam rubber (SiP) flightcase insert for secure shipment.

Specifications:

  • PHYSICAL
    • Length: 452 mm (17.8 in.)
    • Width: 480 mm (18.9 in.) across yoke
    • Height: 740 mm (29.2 in.) maximum | 731 mm (28.8 in.) head straight up
    • Weight: 31 kg (68.4 lbs.)
    • Minimum center-to-center distance in side-by-side installation: 700 mm (27.6 in.)
  • DYNAMIC EFFECTS
    • Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
    • Color mixing: CMY, independently variable 0 - 100%
    • Color temperature control: Variable 6000 - 2700 K
    • Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
    • Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
    • Rotating gobo wheel: 5 x interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
    • Iris: Variable 0 - 100%
    • Zoom: Motorized
    • Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
    • Framing: Rotatable framing module, +/- 55°, 4 x individually controllable blades with variable angle and position
    • Frost: Variable 0 - 100%
    • Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
    • Dimming options: Choice of four dimming curves
    • Pan: 540°
    • Tilt: 268°
    • Position correction system: Absolute position monitoring
  • CONTROL AND PROGRAMMING
    • 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt
    • Movement control options: Tracking and vector
    • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
    • DMX channels: 38
    • Fixture Identification: User-settable ID number
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Transceiver: Opto-isolated RS-485
    • Fixture software update: USB memory device or over DMX link
  • OPTICS
    • Zoom range: 12° - 48° one-tenth peak (1:4)
    • Light source: 6000 K white LEDs
    • CRI (Color Rendering Index): >80
    • Total LED engine power: 468 W
    • Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
    • *Figure obtained under manufacturer's test conditions
  • PHOTOMETRIC DATA
    • Light engine luminous output: ≥ 39,400 lumens
    • Fixture luminous output: 11,600 lumens
    • CQS (Color Quality Scale): >80
    • TM-30 Rf (IES TM-30-15 Fidelity Index): >80
    • TM-30 Rg (IES TM-30-15 Gamut Index): >95
    • TLCI (Television Lighting Consistency Index): >70
  • CONSTRUCTION
    • Housing: High-impact flame-retardant thermoplastic
    • Color: Black
    • Protection rating: IP20
  • INSTALLATION
    • Mounting points: 4 pairs of 1/4-turn locks
    • Location: Dry location only, must be fastened to surface or structure
    • Orientation: Any
    • Minimum distance to combustible materials: 0.2 m (8 in.)
    • Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
  • CONNECTIONS
    • AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
    • DMX and RDM data in/out: 5-pin locking XLR
  • ELECTRICAL
    • AC power: 120-240 V nominal, 50/60 Hz
    • Power supply unit: Auto-ranging electronic switch-mode
    • Power Consumption: 64 W, all effects static, zero light output
    • Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
  • TYPICAL POWER AND CURRENT
    • 120 V, 60 Hz: 5.0 A, 596 W, PF 0.998
    • 208 V, 60 Hz: 2.9 A, 581 W, PF 0.988
    • 230 V, 50 Hz: 2.6 A, 580 W, PF 0.981
    • 240 V, 50 Hz: 2.2 A, 585 W, PF 0.979
    • Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
  • THERMAL
    • Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
    • Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
  • APPROVALS
    • EU safety: EN 60598-2-17, EN 62471, EN62493
    • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
    • US safety: UL 1573
    • US EMC: FCC Part 15 Class A
    • Canadian safety: CSA C22.2 No. E598-2-17
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: RCM
  • INCLUDED ITEMS
    • Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
  • ACCESSORIES
    • Gelframe MAC Encore: P/N 91001000
    • Set of Followspot Handles MAC Encore: P/N 91001001HU
    • Heavy Frost Assy MAC Encore Performance: P/N 91001002HU
    • SIP Packaging MAC Encore Family: P/N 91616115HU
    • Static GOBO Wheel MAC Encore Performance: P/N 91001003
    • Top Hat MAC Encore Performance: P/N 91001004
    • Cables and connectors:
      • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
      • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
      • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
      • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    • Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
    • Flightcase: Two-unit Flightcase for MAC Encore™*: P/N 91515048
    • *Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
    • Installation hardware:
      • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
      • Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
      • Half-coupler Clamp: P/N 91602005
      • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
      • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
  • RELATED ITEMS
    • Martin™ RDM 5.5 Splitter: P/N 90758150
    • Martin Companion Cable: P/N 91616091
    • Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
