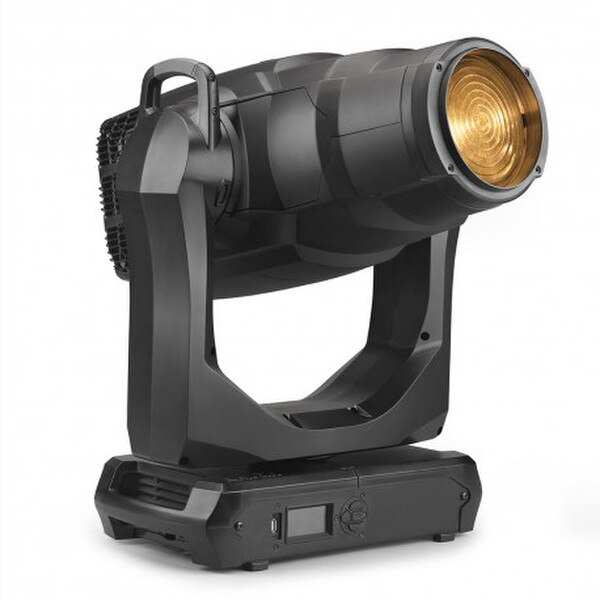

Martin MAC ENCORE WASH WRM - SiP

Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash WRM is a perfect, LED-based, replacement for the much-loved, discontinued MAC TW1. The feature-packed soft edge moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source, and doubles as a modern replacement for generic fixtures like tungsten based Fresnel fixtures, with the additional benefit of color mixing and movement.

• Unparalleled 3000 K warm white light quality
• Super silent cooling and effects operation
• Best-in-class size/weight/performance ratio

Features:

• Pure white LED engine with 3000 K CCT.
• No color temperature variation during zoom and dimming.
• Flicker-free operation—LED driver frequency suitable for all camera applications.
• Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
• Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
• Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades.
• Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
• Color wheel—6 interchangeable dichroic filters + open.
• Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
• PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
• Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
• Precise and tight iris with adjustable dynamic effects.
• Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
• Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
• Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
• Low weight—28.5 kg/62.9 lbs
• Foam rubber (SIP) flight case insert for secure shipment.

Specifications:

• PHYSICAL
  • Length: 452 mm (17.8 in.)
  • Width: 480 mm (18.9 in.) across yoke
  • Height: 755 mm (29.8 in.) maximum | 745 mm (29.4 in.) head straight up
  • Weight: 28.5 kg (62.9 lb.)
  • Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
• DYNAMIC EFFECTS
  • Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
  • Color mixing: CMY, independently variable 0 - 100%
  • Color temperature control: Variable 3000 - 7000 K
  • Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
  • Iris: Variable 0 - 100%
  • Zoom: Motorized
  • Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
  • Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
  • Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
  • Dimming options: Choice of four dimming curves
  • Pan: 540°
  • Tilt: 268°
  • Position correction system: Absolute position monitoring
• CONTROL AND PROGRAMMING
  • 16-bit control: Dimming, pan and tilt
  • Movement control options: Tracking and vector
  • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
  • DMX channels: 24
  • Fixture Identification: User-settable ID number
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Transceiver: Opto-isolated RS-485
  • Fixture software update: USB memory device or over DMX link
• OPTICS
  • Light source: 3000 K white LEDs
  • CRI (Color Rendering Index): >90
  • Total LED engine power: 468 W
  • Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
  • Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)
  • Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)
  • *Figure obtained under manufacturer's test conditions
• PHOTOMETRIC DATA
  • Light engine luminous output: ≥ 31,500 lumens
  • Fixture luminous output with Fresnel lens (standard): 8500 lumens
  • Fixture luminous output with PC lens (optional): 9500 lumens
  • CQS (Color Quality Scale): >90
  • TM-30 Rf (IES TM-30-15 Fidelity Index): >90
  • TM-30 Rg (IES TM-30-15 Gamut Index): >98
  • TLCI (Television Lighting Consistency Index): >90
• CONSTRUCTION
  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP20
• INSTALLATION
  • Mounting points: 4 pairs of 1/4-turn locks
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (8 in.)
  • Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
• CONNECTIONS
  • AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
  • DMX and RDM data in/out: 5-pin locking XLR
• ELECTRICAL
  • AC power: 120-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Power Consumption: 64 W, all effects static, zero light output
  • Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
• TYPICAL POWER AND CURRENT
  • 120 V, 60 Hz: 5.0 A, 596 W, PF 0.998
  • 208 V, 60 Hz: 2.9 A, 581 W, PF 0.988
  • 230 V, 50 Hz: 2.6 A, 580 W, PF 0.981
  • 240 V, 50 Hz: 2.2 A, 585 W, PF 0.979
  • Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
• THERMAL
  • Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)
  • Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
  • Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
• APPROVALS
  • EU safety: EN 60598-2-17, EN 62471, EN62493
  • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: FCC Part 15 Class A
  • Canadian safety: CSA C22.2 No. E598-2-17
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: RCM
• INCLUDED ITEMS
  • Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
• ACCESSORIES
  • Gelframe MAC Encore: P/N 91001000
  • Set of Followspot Handles MAC Encore: P/N 91001001HU
  • PC Lens Assy MAC Encore Wash: P/N 91616110HU
  • SIP Packaging MAC Encore Family: P/N 91616115HU
  • Cables and connectors: Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797 Power Input Cable, H07RN-F, 2.5 mm2, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174 Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
  • Flightcase: Two-unit Flightcase for MAC Encore™*: P/N 91515048
  • *Please order SIP variant fixtures to obtain the required SIP foam flightcase inserts
  • Installation hardware: G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
• RELATED ITEMS
  • Martin™ RDM 5.5 Splitter: P/N 90758150
  • Martin Companion Cable: P/N 91616091
  • Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
