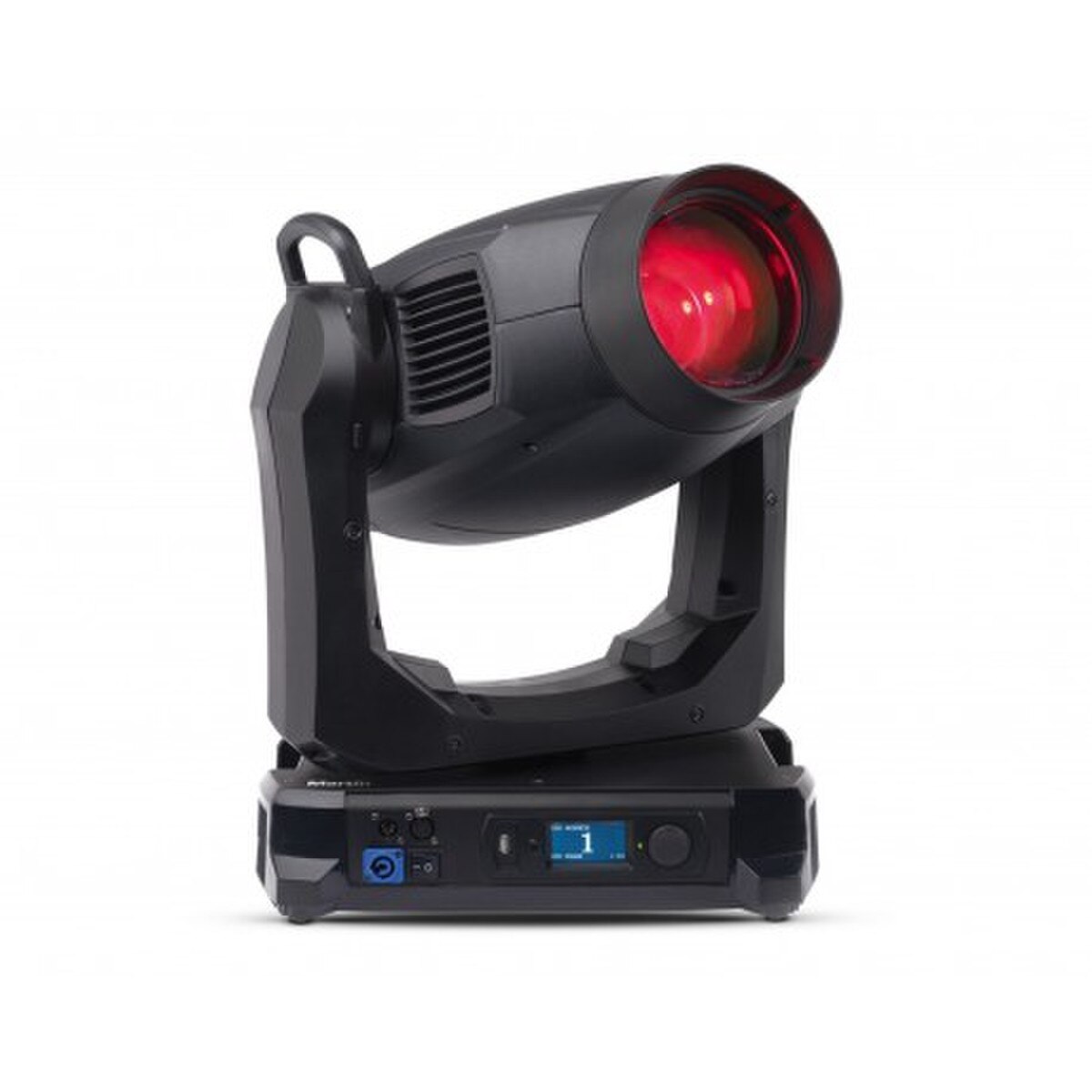

Martin MAC Viper Profile with 2-unit Flightcase

The MAC Viper Profile is a new breed of high-output profile luminaire with an exceptional feature set, superior light quality and a highly efficient optical system. It outperforms all market-leading profiles in the 1200-watt range and is even an alternative to 1500-watt fixtures. The Viper Profile is not only brighter, it is also a faster and more compact solution. With its 1000-watt HID source, the Viper consumes less power, making it over 50% more efficient than its 1200-watt rivals.

Features:

• 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
• 1:4 zoom – Fast zoom with auto-linked focus
• Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
• 2 x 5-slot rotating gobo wheels - All glass gobos with optimal focal separation for superior morphing effects
• FX wheel – Patent-pending FX wheel provides an additional 4 fixed gobos and 135° animation effect
• CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
• 8-slot color wheel – Static colors and correction filters for added color choice and bump effects
• Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
• Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
• Iris – Fast and tight iris with adjustable dynamic effects
• Strobe – Diverse strobe effects using mechanical or electronic control or in combination
• Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
• 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling

Specifications:
Physical:

• Length: 566 mm (22.3 in.) head
• Width: 472 mm (18.6 in.)
• 335 mm (13.2 in.) base

Height:

• 731 mm (28.8 in.) head straight up
• 748 mm (29.5 in.) maximum
• Weight: 37.2 kg (82.0 lbs.)

Dynamic Effects:

• Color mixing: CMY, independently variable 0 - 100%
• Color temperature control: CTO, variable 6000 - 3200 K
• Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color
• Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake
• Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
• FX wheel: Interchangeable static gobo and gobo animation effects
• Iris: 0 - 100%, pulse effects
• Zoom: Motorized
• Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
• Prism: Interchangeable 4-facet rotating prism
• Frost: Frost filter
• Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
• Dimming options: Choice of four dimming curves
• Zoom-focus linking system: 3-zone
• Pan: 540°
• Tilt: 268°
• Position correction system: Absolute position monitoring

Control and Programming:

• 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt
• Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
• DMX channels: 26/34
• Receiver: Opto-isolated RS-485
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Firmware update: USB memory device or USB/DMX hardware interface over DMX link

Optics:

• Zoom range: 10-44° (1:4)
• Color temperature: 6000 K
• Output: 26,000 lumens

Lamp:

• Type: 1000 W short-arc discharge
• CRI (Color rendering index): >85
• Average lifetime: 750 hours
• Socket: PGJX36
• Ballast: Electronic
• Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W

Service Utilities

• Fixture identification: User-settable fixture ID number

Construction:

• Housing: UV-resistant fiber-reinforced composite
• Color: Black
• Reflector: Glass, cold light
• Protection rating: IP20

Gobos:

• Size: E27 (Size E, max. image diameter 27 mm)
• Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved)
• Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.)
• Maximum image diameter: 27 mm (1.1 in.)
• Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)

Installation:

• Mounting points: Eight quarter-turn locking points
• Orientation: Any
• Minimum distance to combustible materials: 0.3 m (1.0 ft.)
• Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)

Connections:

• AC power input: Neutrik PowerCon
• DMX and RDM data in/out: 5-pin locking XLR
• USB memory devices: USB host socket

Electrical:

• AC power: 120-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical half-cycle RMS inrush current: 16.2 A

Typical Power and Current:

• 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999
• 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996
• 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994
• 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993
• Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.

Thermal:

• Cooling: Filtered forced air (temperature-regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 5° C (41° F)
• Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
• Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr

Approvals:

• US safety: UL 1573
• US EMC: FCC Part 15 Class A

Included Items:

• Lamp (installed): P/N 97010346
• Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001
• Safety and installation manual: P/N 35000258

Accessories:
Power Input Cables:

• Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
• Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
• Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
• Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
• (H07RN-F are European approved cables, SJOOW are US approved cables)
• Power connectors: Power Connector PowerCON Female : P/N 91611794
• Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
• T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
• Half-coupler (tube) clamp: P/N 91602005
• G-clamp (suspension with yoke vertically downwards only): P/N 91602003
• Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
• Flightcase for 2 x MAC Viper: P/N 91510180

Related Items:

• Martin™ RDM 5.5 Splitter: P/N 90758150
• Martin Companion Cable: P/N 91616091
• Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com

Spare Parts:

• Osram HTI 1000/PS Lok-it lamp: P/N 97010346
• Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270

Ordering Information:

• MAC Viper™ Profile in cardboard box: P/N 90233000
• MAC Viper™ Profile in double flightcase: P/N 90233010

Shipping Information:

• In cardboard carton:
• Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
• Shipping weight: 41 kg (90.4 lbs.)
