Martin RUSH MH 10 BEAM FX

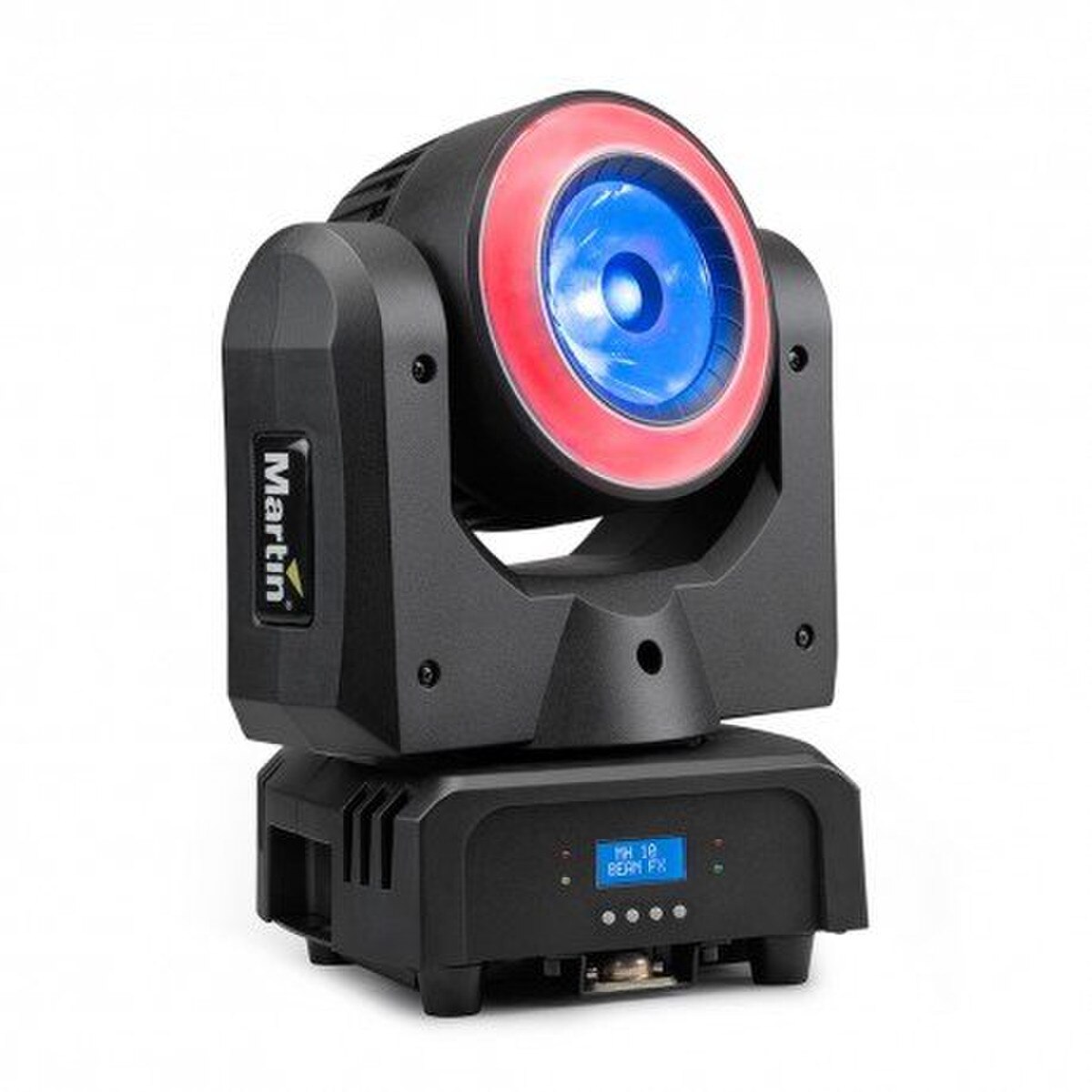

The Martin RUSH MH 10 Beam FX is a compact 60W RGBW LED Beam moving head fixture with an independent, built-in LED ring. With 24 individually-controllable RGB LEDs surrounding a central beam lens, the RUSH MH 10 FX offers a variety of exciting visual effect possibilities at an affordable price.

The Martin RUSH MH 10 Beam FX uses a collimator lens design, creating a striking, high-intensity look on stage. The OSRAM OSTAR LEDs on the MH 10 Beam offers excellent color mixing with Martin MAC Aura, RUSH MH 6, and RUSH Par 2 fixtures. Independent control of the ring LEDs also allows the fixture to easily blend into on-stage LED video elements.

Other features include continuous pan and tilt and lightweight build, providing a number of interesting rigging possibilities and high-speed looks. The Martin RUSH MH 10 is a perfect fit for nightlife, houses of worship, cruise ships and small-to-medium touring and rental customers.

Features:

• Bright 60 W Osram RGBW LED engine
• Collimator lens for a super-tight 4.5° high intensity beam angle
• Ambient glow ring with 24 individually pixel-controllable RGB LEDs
• Electronic dimming and Strobe
• Temperature-controlled fan cooling
• Unlimited Pan & Tilt rotating
• 3 + 5 pin XLR DMX connection
• Neutrik TRUE 1 in and thru socket
• Compact size—L: 275 x W: 188 x H: 325 mm / L: 10.8 x W: 7.4 x H: 12.8 in
• Low weight—7.5 kg/16.5 lbs.

Specifications:

• PHYSICAL
  • Length: 275 mm (10.8 in.)
  • Width: 188 mm (7.4 in.)
  • Height: 325 mm (12.8 in.)
  • Weight: 7.5 kg (16.5 lbs.)
• DYNAMIC EFFECTS
  • Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring)
  • Beam color mixing: RGBW
  • Pre-programmed effects: FX (effect macros) in ring with variable speed and direction of sequences, synchronization and chases across multiple fixtures
  • Ring color mixing: RGB, grouped or individual control of 24 cells
  • Virtual color wheel: 33 color presets, virtual color wheel rotation effects, random color (independent in beam and ring)
  • Pan: 540°
  • Tilt: 270°
  • Pan and tilt speed: Adjustable via onboard control panel and DMX
  • Dimming: 0-100%, coarse and fine control (independent in beam and ring)
  • Pan and tilt rotation effect: Constant, variable speed and direction
• CONTROL AND PROGRAMMING
  • Control options: DMX, RDM, stand-alone, master/client
  • Setting and addressing: Control panel with backlit LCD display
  • DMX channels: 24 or 93
  • Stand-alone trigger options: Music trig, auto trig
  • DMX compliance: USITT DMX512/1990
  • RDM compliance: ANSI/ESTA E1.20
• OPTICS
  • Beam effect light source: 60 W RGBW Osram LE RTDUW S2WP
  • Ring effect light source: 24 x 0.25 W RGB LEDs
  • Cutoff beam angle: 4.4°
  • Minimum LED lifetime: 20,000 hours to >70% luminous output*
  • *Under manufacturer's test conditions.
• CONSTRUCTION
  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP20
• INSTALLATION
  • Minimum clearance around fan and air vents: 100 mm (4 in.)
  • Mounting points: One quarter-turn omega bracket for rigging clamp
  • Location: Indoor use only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 100 mm (4 in.)
  • Minimum distance to illuminated surfaces: 200 mm (8 in.)
• CONNECTIONS
  • AC power in, thru: Neutrik TRUE1
  • DMX data in, thru: 3-pin and 5-pin locking XLR
• ELECTRICAL
  • AC power: 100-120 / 200-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
• TYPICAL POWER AND CURRENT
  • 120 V, 60 Hz: 0.85 A, 100 W, PF 0.99
  • 230 V, 50 Hz: 0.49 A, 108 W, PF 0.99
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
• THERMAL
  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 0° C (32° F)
  • Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)
• APPROVALS
  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
  • US safety: UL 1573
  • US EMC: CFR Title 47 Part 15 Class A
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: RCM (pending)
• INCLUDED ITEMS
  • Power cable, 1.5 m (4.9 ft.), without mains plug
• ACCESSORIES
  • Cables, 16 A, for connection to power in chains:
    • Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    • Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    • Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
  • Cables, 16 A, for relaying power in chains:
    • Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    • Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    • Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    • Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
  • Connectors:
    • Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    • Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
  • Installation hardware:
    • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    • Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    • Half-coupler clamp: P/N 91602005
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
• RELATED ITEMS
  • Martin™ RDM 5.5 Splitter: P/N 90758150
  • Martin Companion Cable: P/N 91616091
  • Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
