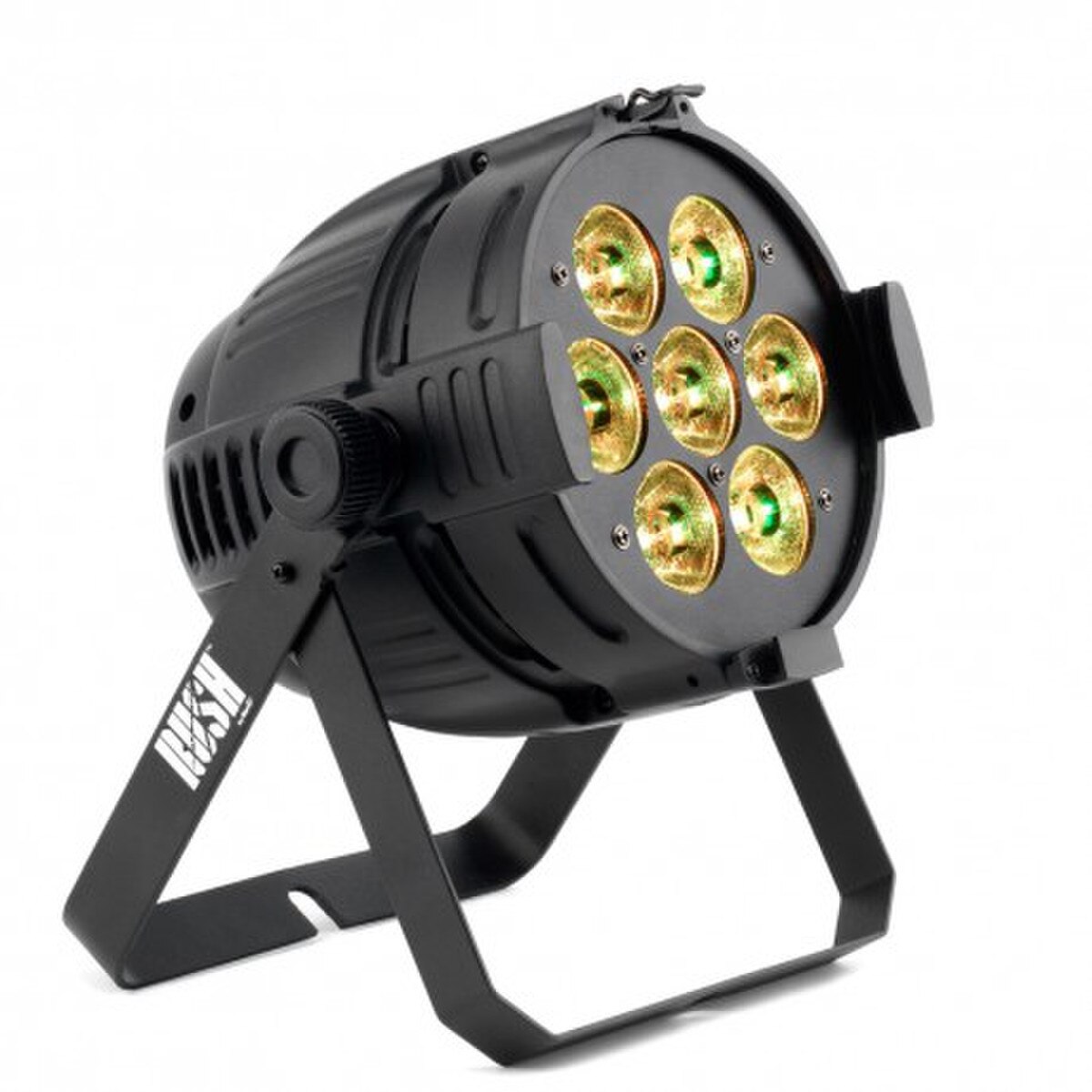

Martin RUSH PAR 1 RGBW

The RUSH PAR 1 RGBW is a bright LED PAR Can with premixed RGBW color mixing. It offers electronic dimming and strobe and comes with a flexible bracket for floor or truss mounting.

Features:

• Bright LED PAR Can
• Premixed RGBW color mixing
• 17° one-tenth peak angle
• Electronic dimming and strobe
• Flexible bracket – floor or truss-mounted
• 5-pin XLR

Specifications:

• PHYSICAL
  • Length: 260 mm (10.3 in.)
  • Width: 195 mm (7.7 in.)
  • Height: 293 mm (11.6 in.)
  • Weight: 3.6 kg (8.0 lbs.)
• DYNAMIC EFFECTS
  • Electronic shutter effect: Instant open and blackout
  • Electronic dimming: 0 - 100%
  • Strobe and pulse effects: Variable speed and action, random strobe
  • Color mixing: RGBW
  • Color selection: 32 color presets
• CONTROL AND PROGRAMMING
  • Control options: DMX, stand-alone
  • White balance control: RGB adjustment
  • DMX channels: 5/7
  • Standalone programming: Control panel with LED display
  • Standalone trigger options: Music trig, auto trig
  • DMX address setting: Control panel with LED display
  • Protocol: USITT DMX512/1990
• OPTICS
  • Light source: 7 x 10 W RGBW Cree MC-E LEDs
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
  • *Figure obtained under manufacturer's test conditions.
• CONSTRUCTION
  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP20
• INSTALLATION
  • Mounting: Adjustable bracket, surface or truss mount
  • Location: Indoor use only
  • Orientation: Any
• CONNECTIONS
  • AC power in, thru: Neutrik PowerCon
  • DMX data in, thru: 5-pin XLR
• ELECTRICAL
  • AC power: 100-240 V nominal, 50/60 Hz
  • Typical total power consumption: 78 W
  • Power consumption figures are typical, not maximum. Allow for +/-10% variation.
• TYPICAL POWER AND CURRENT
  • 110 V, 60 Hz: 1.1 A, 78 W
  • 230 V, 50 Hz: 0.7 A, 78 W
  • Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
• THERMAL
  • Cooling: Forced air (temperature-regulated, low noise)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 0° C (32° F)
  • Total heat dissipation (calculated, +/- 10%): 270 BTU/hr. (at full intensity, full white)
• APPROVALS
  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: 47 CFR Part 15 Class A
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: C-TICK N4241
• INCLUDED ITEMS
  • Power cable 1.5 m
  • Mounting bracket
• ACCESSORIES
  • Power connectors:
    • Power Connector PowerCON Male: P/N 91611795
    • Power Connector PowerCON Female : P/N 91611794
  • Cables, 16 A, for connection to power in chains:
    • Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    • Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    • Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    • Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
  • Cables, 16 A, for power input:
    • Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    • Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    • Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    • Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    • (H07RN-F are European approved cables, SJOOW are US approved cables)
  • Installation hardware:
    • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    • Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    • Half-coupler clamp: P/N 91602005
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
