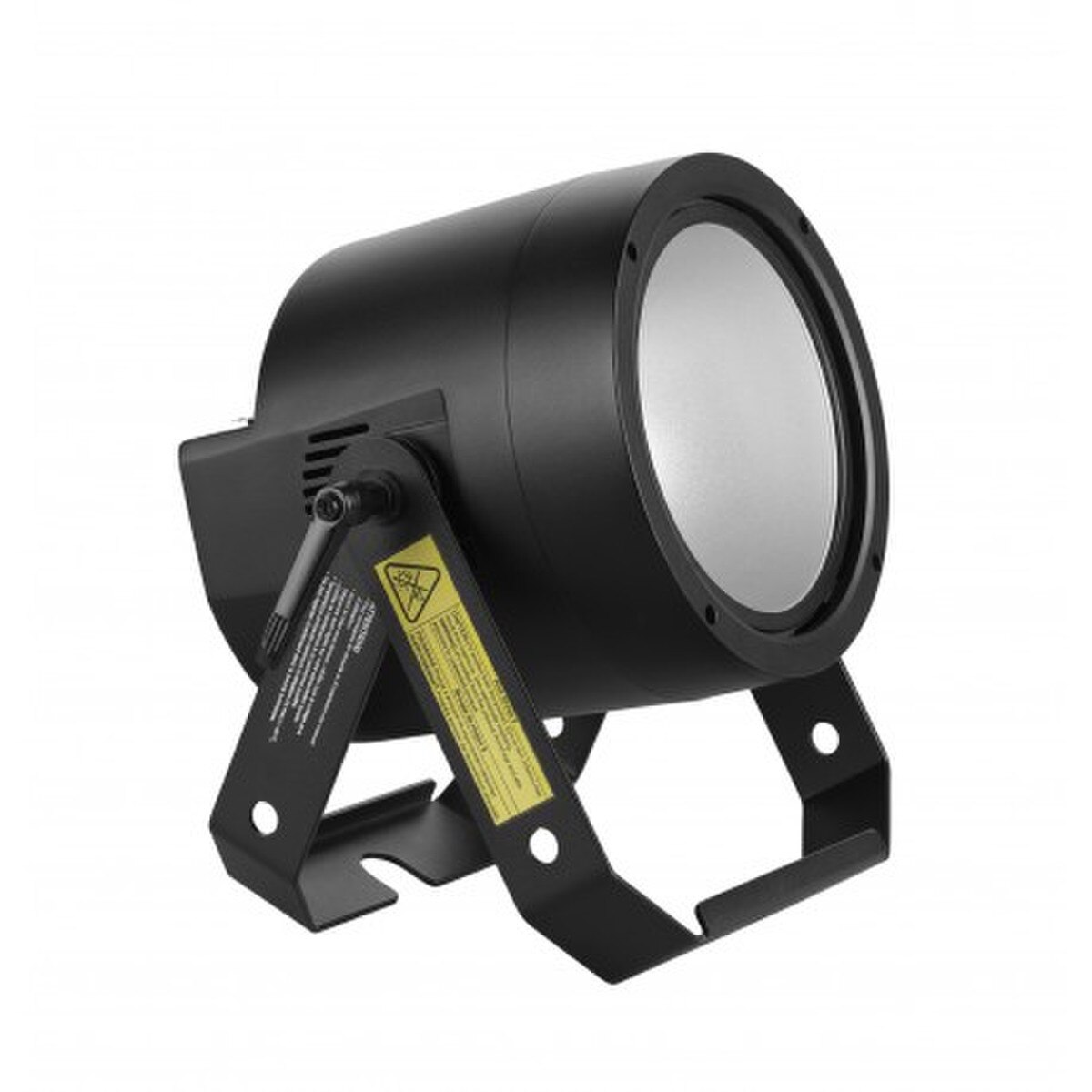

Martin RUSH PAR 4 UV

The RUSH PAR 4 UV is a bright single-lens UV LED PAR can light fixture for use in blacklight applications. The fixture includes a 100 watt COB 400nm UV LED mounted in a reflector for high-output ultraviolet light, and has regulated air cooling for quiet operation. With electronic dimming and strobe and a bracket suitable for floor or truss mounting, the RUSH PAR 4 UV is ideal for a variety of nightlife, stage, and concert applications.

Features:

• 100 watt COB 400nm UV LED
• Single-lens 100W UV LED PAR
• Forced air cooling for quiet operation
• Electronic dimming and strobe
• Bracket suitable for floor or truss mounting
• Lightweight construction (4 kg / 8.8 lbs.)

Specifications:

• PHYSICAL
  • Length: 327 mm (12.8 in.)
  • Width: 312 mm (12.3 in.)
  • Height: 207 mm (8.1 in.)
  • Weight: 4 kg (8.8 lbs.)
• DYNAMIC EFFECTS
  • Dimming: 0 – 100%, coarse & fine control
  • Shutter: Strobe & pulse effects, instant open and blackout
• CONTROL AND PROGRAMMING
  • Control systems: USITT DMX512/1990 with RDM
  • DMX channels: 3
  • RDM compliance: ANSI/ESTA E.120
  • Interface: Control panel with backlit LCD display
• CONSTRUCTION
  • Housing: Cast aluminum
  • Color: Black
  • Protection rating: IP20
• INSTALLATION
  • Mounting points: Adjustable bracket, surface or truss mount
  • Location: Indoor location only
  • Orientation: Any
  • Minimum distance to combustible materials: 0.1 m (4 in.)
  • Minimum distance to illuminated surfaces: 0.5 m (20 in.)
• CONNECTIONS
  • AC power input/output: Neutrik PowerCon
  • DMX/RDM in/out: 5-pin locking XLR
  • RUSH PAR 4 UV User Manual 31
• ELECTRICAL
  • AC power: 100-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Typical half-cycle RMS inrush current: 11.2 A
  • Recommended Miniature Circuit Breaker when power linking: Type D*
  • *Per IEC 60898/UL489/CSA C22.2 No. 5
  • Maximum total power consumption: 114 W
• TYPICAL POWER AND CURRENT
  • 100 V, 60 Hz: 114 W, 1.2 A, PF 1.000
  • 120 V, 60 Hz: 114 W, 1.0 A, PF 0.996
  • 230 V, 50 Hz: 114 W, 0.5 A, PF 0.933
  • Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
• THERMAL
  • Cooling: Forced air, temperature-regulated
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 0° C (32° F)
• APPROVALS
  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: 47 CFR 15 Class A
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: RCM
• INCLUDED ITEMS
  • Power cable, 1.5 m without mains plug
• ACCESSORIES
  • Power connectors:
    • Power Connector PowerCON Male: P/N 91611795
    • Power Connector PowerCON Female: P/N 91611794
  • Cables, 16 A, for connection to power in chains:
    • Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    • Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    • Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    • Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
  • Cables, 16 A, for power input:
    • Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    • Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    • Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    • Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    • (H07RN-F are European approved cables, SJOOW are US approved cables)
  • Installation hardware:
    • Half-coupler clamp: P/N 91602005
    • G-clamp (vertical hanging suspension only): P/N 91602003
    • Quick-trigger clamp (vertical hanging suspension only): P/N 91602007
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604007
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604006
