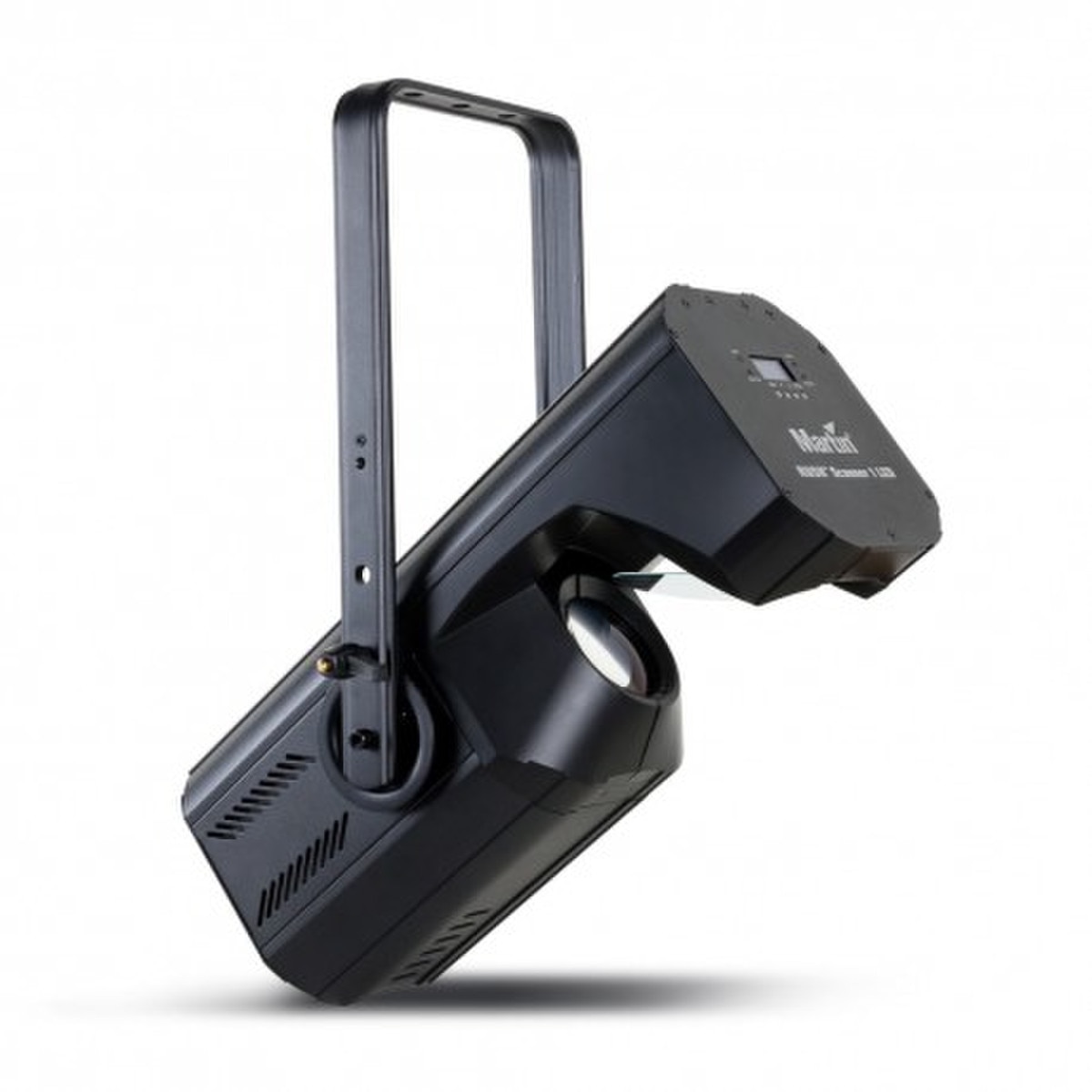

Martin RUSH SCANNER 1 LED

The RUSH Scanner 1 LED is designed to enable lighting designers to boost the wow factor and energize crowds with high-speed mid-air looks in a variety of entertainment venues and nightclubs.

This fixture delivers high output via sharp optics and is packed with eye-catching effects. With its high-speed pan and tilt capabilities, the RUSH Scanner 1 LED is ideal for creating dramatic atmospheres and boosting energy levels on cruise ships, in dance clubs and other nightlife venues.

Compact size, low weight, rugged construction and long-life LEDs also make the RUSH Scanner 1 LED a favorite for rental companies seeking to produce once-in-a-lifetime memorable events through powerful, dynamic lighting effects.

Features:

• High-power, long-life 90W white LED engine
• Breathtakingly fast pan and tilt
• Rich, dynamic feature set including two color wheels, two gobo wheels and rotating prism
• Effects include two gobo wheels. two color wheels and a 3-facet prism
• Sharp projections with motorized focus
• DMX control and standalone operation
• Auto trig and music trig standalone modes
• Compact size and rugged construction

Specifications:

• PHYSICAL
  • Length: 588 mm (23.1 in.)
  • Width: 303 mm (11.9 in.)
  • Height: 193 mm (7.6 in.)
  • Weight: 9.6 kg (21.1 lbs.)
• DYNAMIC EFFECTS
  • Electronic shutter effect: Strobe, pulse effects, instant open and blackout
  • Electronic dimming: 0 - 100%, four dimming curve options
  • Color wheel 1: 8 colors plus open, rotation with variable direction and speed
  • Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
  • Rotating gobo wheel: 6 rotating/indexing gobos plus open
  • Focus: Motorized
  • Prism: Indexing and rotation with variable direction and speed
  • Fixed gobo wheel: 7 gobos plus open
  • Pan: 170°, coarse & fine control
  • Tilt: 75°, coarse & fine control
• CONTROL AND PROGRAMMING
  • Control options: DMX, standalone, synchronized master/client
  • Setting and addressing: Control panel with backlit LCD display
  • DMX channels: 16
  • Standalone trigger options: Sound activation (music trig), auto trig
  • Standalone sequences: 9 pre-programmed shows
  • Standalone memory: 20 scenes
  • Music trig sensitivity: Adjustable
  • DMX compliance: USITT DMX512/1990
• OPTICS
  • Light source: 90 W LED engine
  • Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
  • Rotating gobo size : 24 mm (0.94 in.)
  • Rotating gobo image size : 20 mm (0.79 in.)
  • *Figure obtained under manufacturer's test conditions.
• CONSTRUCTION
  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP20
• INSTALLATION
  • Mounting points: Adjustable bracket, surface or truss mount
  • Location: Indoor use only, must be fastened to surface or structure
  • Orientation: Any
• CONNECTIONS
  • AC power in, thru: Neutrik PowerCon
  • DMX data in/out: 3-pin and 5-pin locking XLR
• ELECTRICAL
  • AC power: 100-240 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Power Consumption: 168 W
  • Fuse: T 6.3 A
  • Typical half-cycle RMS inrush current: 10 A
• TYPICAL POWER AND CURRENT
  • 100 V, 60 Hz: 1.7 A, 170 W, PF 0.997
  • 120 V, 60 Hz: 1.4 A, 165 W, PF 0.994
  • 230 V, 50 Hz: 0.7 A, 162 W, PF 0.937
  • Figures obtained at nominal voltage. Figures are typical, not maximum, allow for +/- 10% variation.
• THERMAL
  • Cooling: Forced air
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 0° C (32° F)
  • Total heat dissipation (calculated, +/- 10%): 570 BTU/hr. (at full intensity)
• APPROVALS
  • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
  • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
  • US safety: UL 1573
  • US EMC: FCC Part 15 Class B
  • Canadian safety: CSA C22.2 No. 166
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: RCM
• INCLUDED ITEMS
  • Power cable, 6 A, 18 AWG, 0.75 mm2, UL- listed, H05VV-F, 1.5 m, without mains plug
  • Mounting bracket
• ACCESSORIES
  • Power connectors:
    • Power Connector PowerCON Male: P/N 91611795
    • Power Connector PowerCON Female : P/N 91611794
  • Cables, 16 A, for connection to power in chains:
    • Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    • Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    • Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    • Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
  • Cables, 16 A, for power input:
    • Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    • Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    • Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    • Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
  • (H07RN-F are European approved cables, SJOOW are US approved cables)
  • Installation hardware:
    • G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    • Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    • Half-coupler clamp: P/N 91602005
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
• RELATED ITEMS
  • Martin™ RDM 5.5 Splitter: P/N 90758150
  • Martin Companion Cable: P/N 91616091
  • Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
