Mega-Lite Drama EC200 RGBAL Ellipsoidal - 36°

(0)No Reviews yet
$1,199.00
SKU: Mega-Lite Drama EC200-36

Details

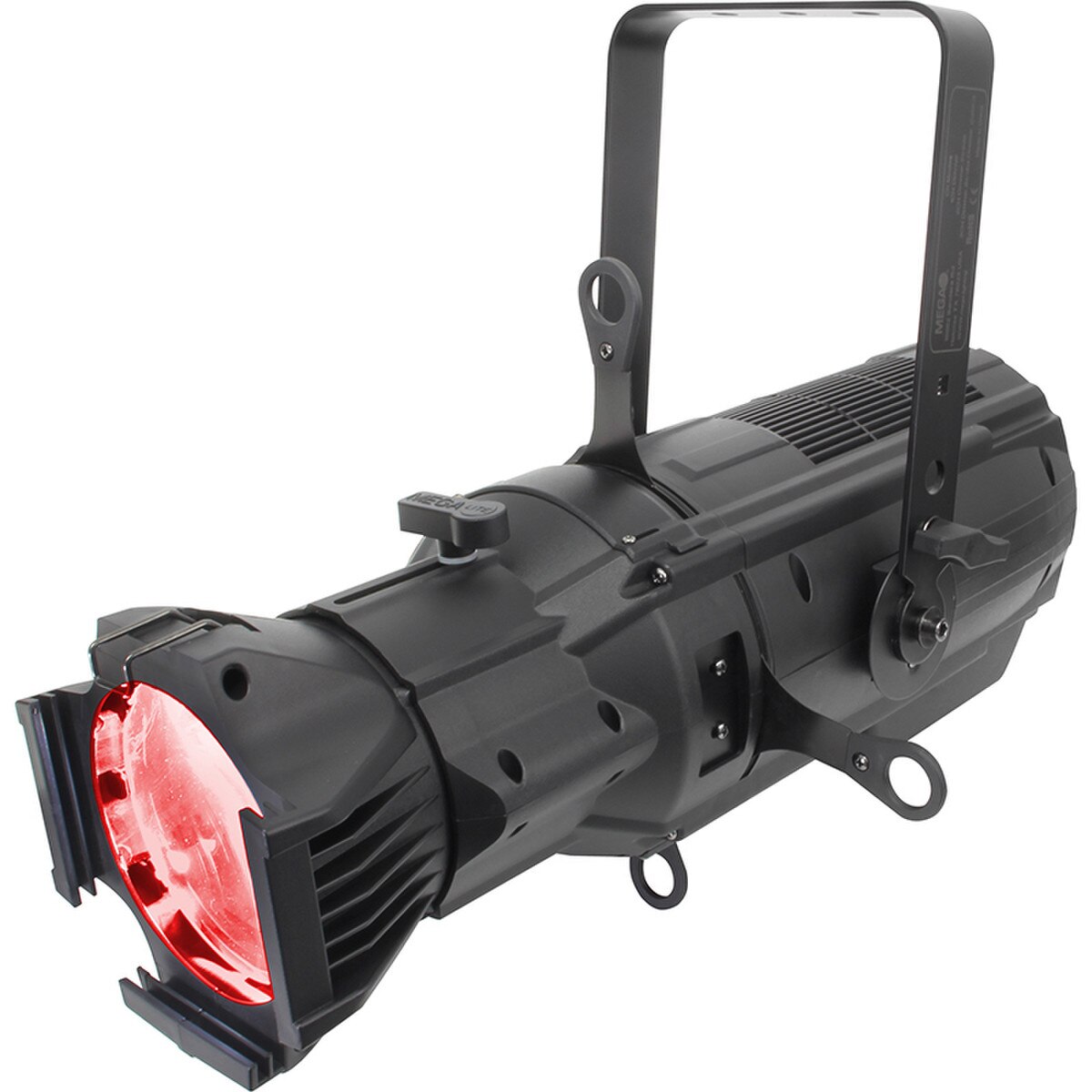

Mega-Lite Drama EC200 RGBAL Ellipsoidal with 36° Beam Angle Lens


The Drama EC200 is a color-changing ellipsoidal that uses Lime and Amber plus a Red, Green, and Blue color mixing system. Using lime results in a higher lumen output and lumen per watt performance than can be achieved with only primary colors. This high-lumen output and efficiency ensure you can deliver high quality and efficient white light in a color-mixing application without sacrificing saturation. The DRAMA EC200 is driven by a 200W engine that is quietly cooled, making it suitable for Theatrical and Church applications. It can be paired with four lenses: select from 19°, 26°, 36° and 50° beam angles. The unit comes with one lens included, which is specified when ordering. The unit is ideal for quiet applications such as theaters and churches. It is an affordable option within its class of luminaires, giving you affordability with confidence in its performance.

Features:
Lime Amber RGB Color Mixing:

The Drama EC200 also offers two unique colors - Lime and Amber - each providing additional color-mixing options. Lime LEDs enable higher lumen output and lumen per watt performance, and Amber allows you to make warmer tones that you wouldn't otherwise be able to.

Even Color Field:

The unique LED grouping and lensing allow for a very even color field, minimizing the color shift seen only in costly fixtures.

Quiet Operation:

The combined heatsink and forced air fan work at a very low noise level, making the unit ideal for theatrical applications.

Specifications:
Mechanical Specifications:

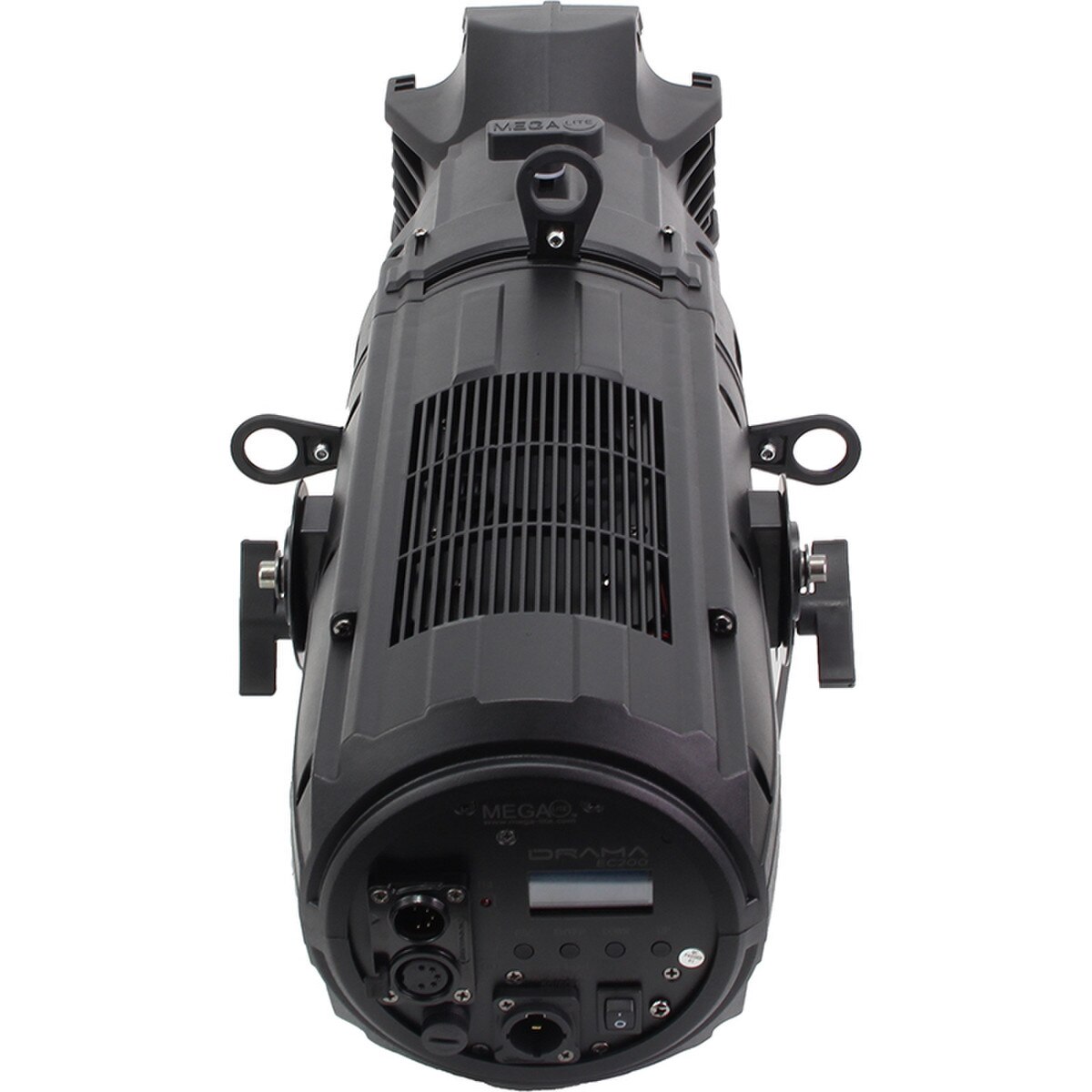

  • Power Connection: True-One type connection to NEMA 5-15
  • Signal Connection: 5 Pin XLR in and out
  • Lens Angle: 36° (One lens included at time of purchase) | 19°, 26° and 50° options are also available.
  • Fastening System: Single Mounting Yoke

Control Systems:

  • Control Protocols: DMX 512
  • Channel Modes: 3 Modes of Operation
  • Mode 1: 5 Channel Mode
  • Mode 2: 6 Channel Mode
  • Mode 3: 8 Channel Mode
  • Display: Digital

Electrical Specifications:

  • Light Source: 1 X 200W COB LED
  • Color Temperature: 6024k
  • CRI (Warm White): 64
  • Lumen Output: 5290 lm @ 19°
  • 5468 lm @ 26°
  • 5391 lm @ 36°
  • 5590 lm @ 50°
  • Power Supply: 100-240VAC 50/60Hz
  • Power Consumption: 185w | 1.68 amps @ 110v

Size and Weight:

  • Fixture Size: 28" X 14.5" X 18" (71.12cm x 36.83 cm x 45.72 cm)
  • Fixture Weight: 11lb (4.99 kg)
  • Packaged Size: 27" X 12" X 12" (68.58 cm x 30.48 cm x 30.48 cm)
  • Packaged Weight: 17lb (7.72 kg)
  • *Lens packaged separately




Drama EC200 Data Sheet.pdf
Drama EC200 Manual v1 Finalized.pdf
Megalite DRAMA EC200 Photometrics.pdf
