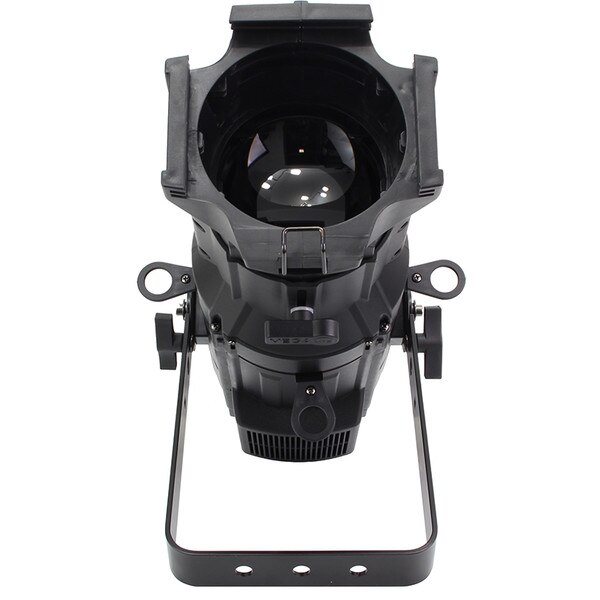

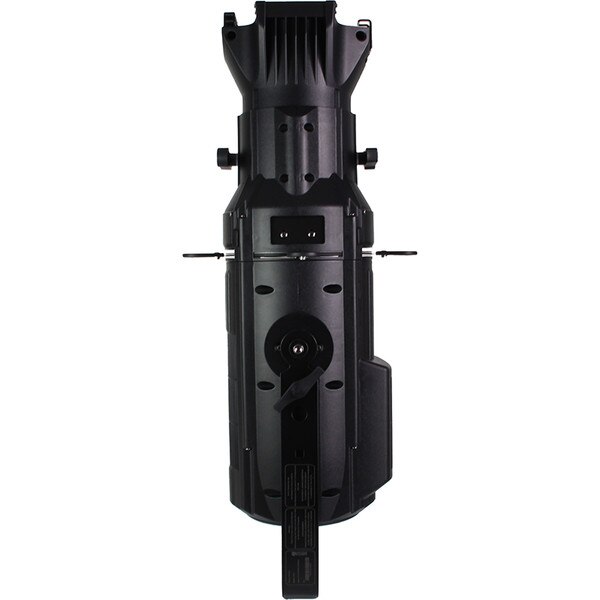

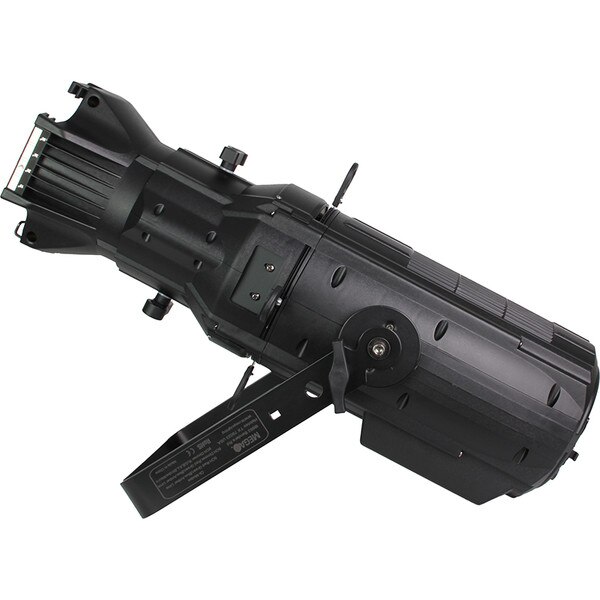

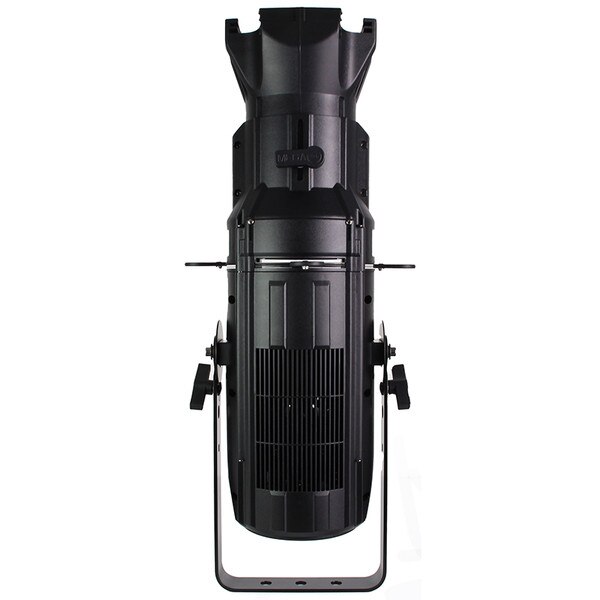

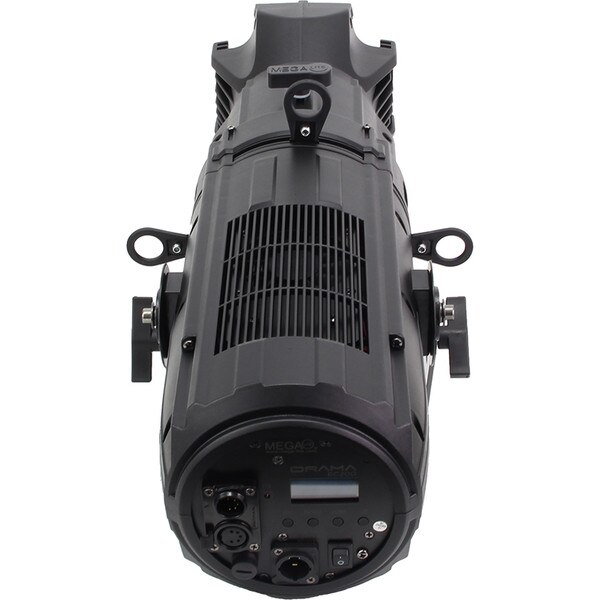

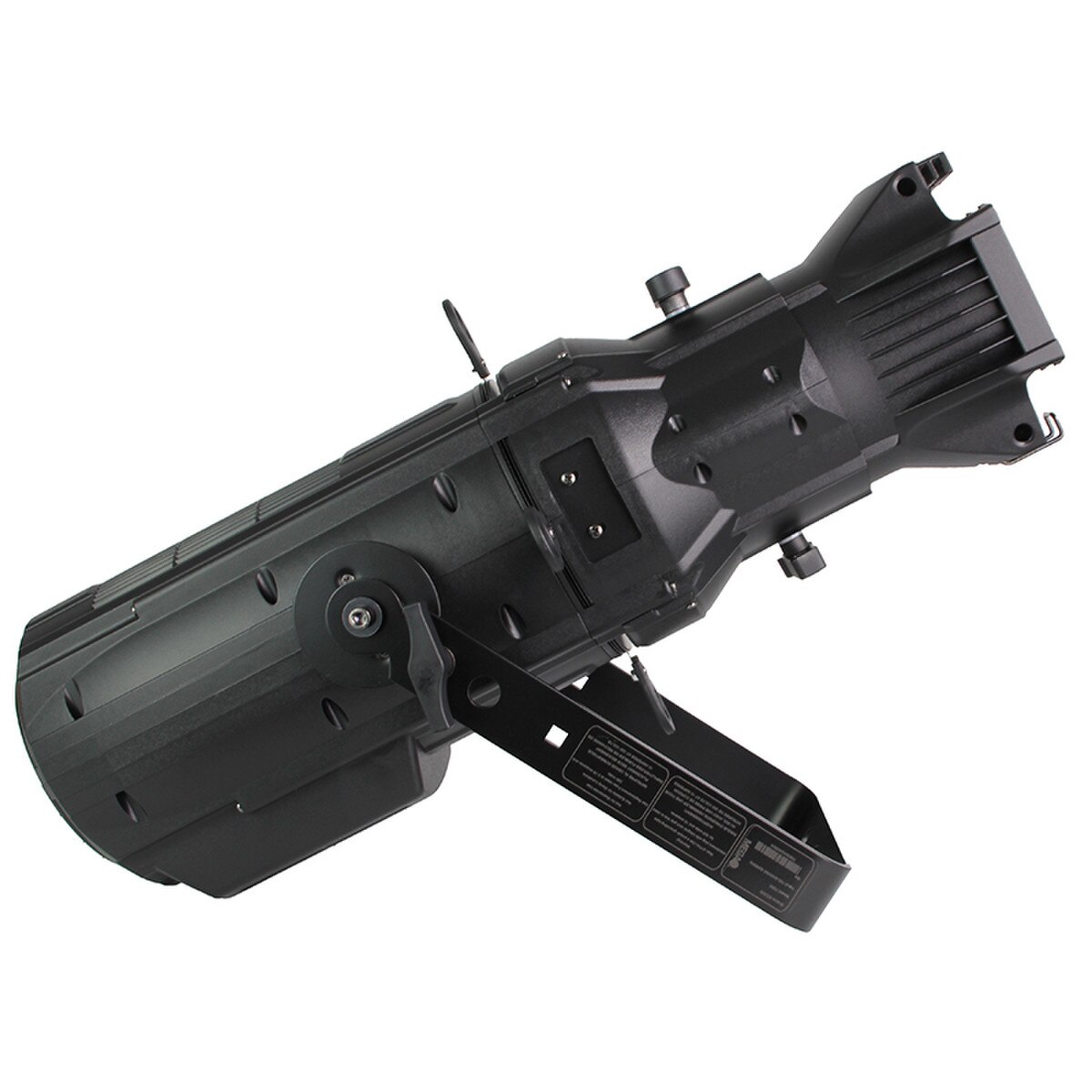

Mega-Lite Drama EW200 Warm White LED Ellipsoidal - 26°
Details
Mega-Lite Drama EW200 Warm White LED Ellipsoidal - 26°
The Drama EW200 is a single color 6024k daylight white fixture, with a high output of 9053 lm @ 19°. Its 200W LED is quietly cooled, making it ideal for theater or church applications. It can be combined with 4 lenses: selectable between 19°, 26°, 36° and 50° beam angles. The unit comes with a specified ;ens included when ordered. The unit is ideal for quiet applications such as theaters and churches. It is an affordable choice in its class, providing affordability with confidence in its performance.
Features:
Daylight Color Temp:
6024K Color temp ideal for gobo projection or to highlight any performance in true daylight color temp.
Daylight With Good CRI:
CRI 89 has good color rendering and daylight color temperature, smooth dimming, and high lumen output, making for a very bright ellipsoidal.
Quiet Operation:
The combined heatsink and forced air fan work at a very low noise level, making the ideal for theatrical applications
Specifications:
Mechincal Specifications:
- Power Connection: True-One type connection to NEMA 5-15
- Signal Connection: 5 Pin XLR in and out
- Lens Angle: 19°, 26°, 36°, 50° (One lens included at time of purchase)
- Fastening System: Single Mounting Yoke
Control Systems:
- Control Protocols: DMX 512, manual mode
- Channel Modes: 3 Modes of Operation
- Mode 1: 1 Channel Mode
- Mode 2: 2 Channel Mode
- Mode 3: 3 Channel Mode
- Display: Digital
Electrical Specifications:
- Light Source: 200W COB LED
- Color Temperature: 6024k
- CRI (Warm White): 89
- Lumen Output: 9053 lm @ 19°
- 9901 lm @ 26°
- 9912 lm @ 36°
- 9806 lm @ 50°
- Power Supply: 100-240VAC 50/60Hz
- Power Consumption: 185W | 1.68 amps @ 110v
Size and Weight:
- Fixture Size: 28" X 14.5" X 18" (71.12cm x 36.83 cm x 45.72 cm)
- Fixture Weight: 11lb
- Packaged Size: 27" X 12" X 12" (68.58 cm x 30.48 cm x 30.48 cm)
- Packaged Weight: 16lb
- *Lens packaged seperately
Drama EW200 Data Sheet.pdf
Drama EW200 Manual v1 Finalized.pdf
Drama EW200 Photometrics.pdf
