Mega-Lite Drama FS LED 900 Follow Spot

The Drama FS-LED 900 is a powerful DMX-controlled follow-spot LED fixture. The unit is a hybrid as it uses electric motors to control most of its optical functions, yet a human still operates it. It allows integration into any application already using automated lighting to use the same theatrical DMX control to control functions such as blackout, colors, zoom, and Iris directly from a control desk, giving control to the programmer without needing a communication system with the operators.

It also comes with its DMX mini controller that allows pre-program buttons to be created for easy recalling seance to be controlled by the operator. The unit has a color wheel that produces a red, green, yellow, blue, orange and white spotlight. It features a CTO wheel, used to adjust color temperature and the hue of each primary and secondary color.

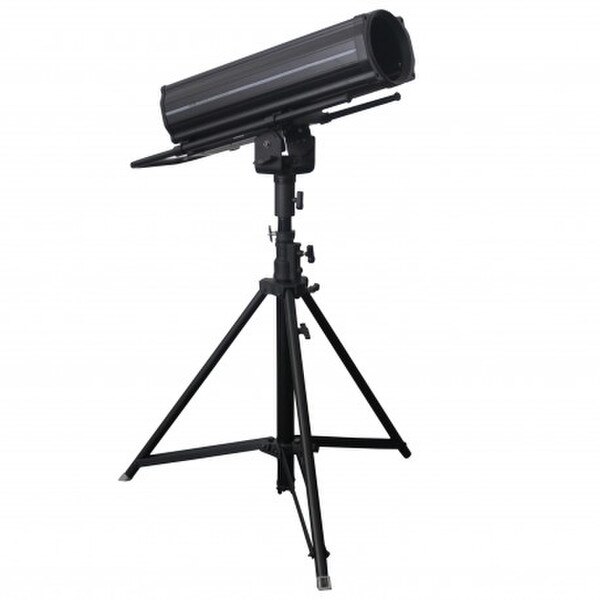

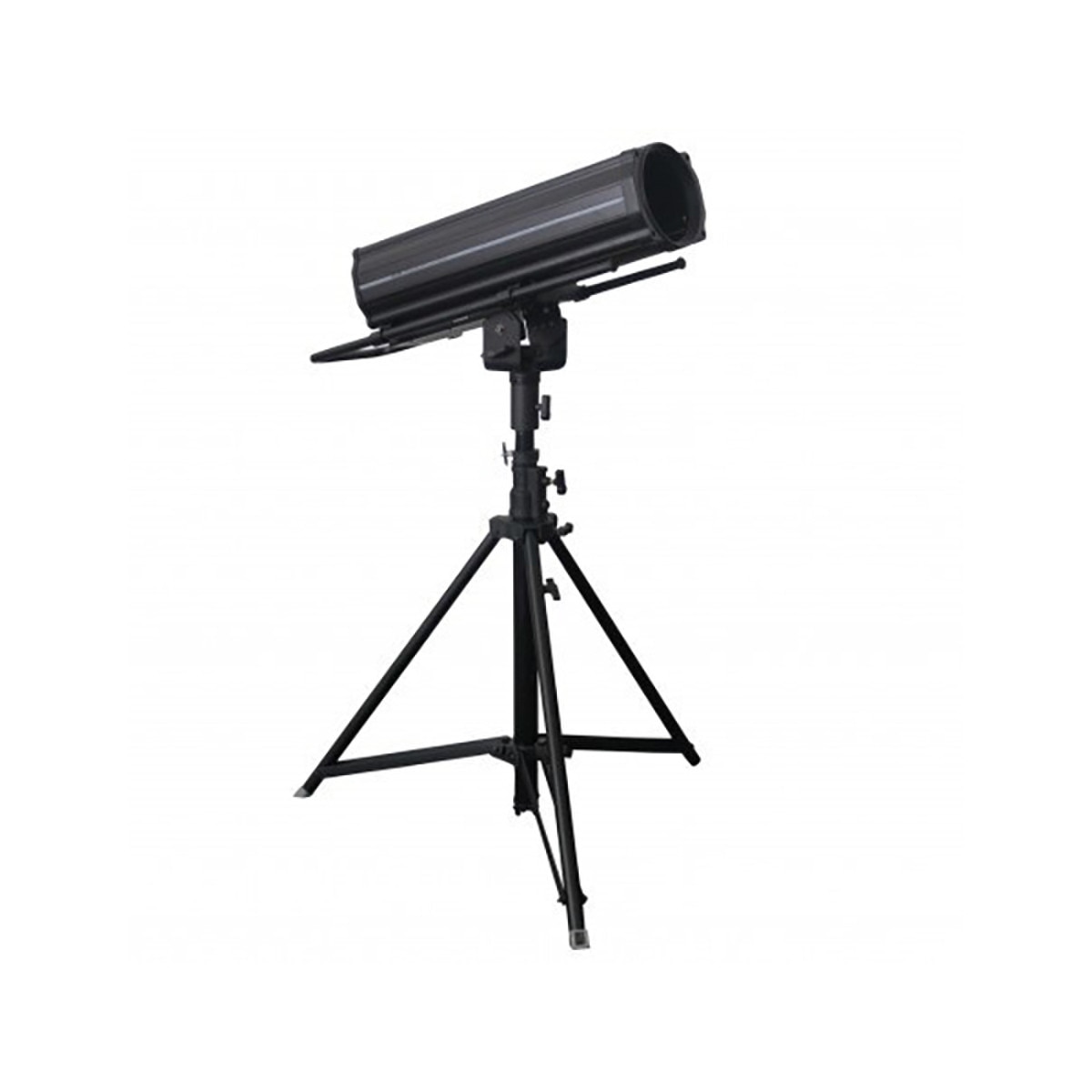

The unit's built-in iris allows for easy adjustments of the spot's diameter, which is excellent for medium to long throws. The unit ships with the stand and is compact, allowing easy transport and use in cramped spaces.

Features:
Brightness:

• The Drama FS-LED 900 is equipped with a 360W COB LED and 3 color temps: 4353K, 4997K, 5062K

Effects:

• The Drama FS-LED 900 has a multitude of effects including iris, dimmer, focus, shutter, zoom & 5 color wheel with fader.

Control:

• The Drama FS-LED 900 is equipped with DMX rail mounted controller for easy control.

Specifications:
Mechanical Specifications:

• Power Connection: Panel mount powercon type in/out
• Signal Connection: 3 and 5-Pin XLR connectors in/out
• Color Wheel: 5 Color wheel with fader/DMX control
• Focus: Mechanical focus with fader/DMX control
• Iris: Mechanical iris with fader/DMX control
• Dimmer: Electronic dimmer with fader/DMX control
• Shutter: Electronic shutter with DMX control only
• Zoom Angle: 8°-13°
• Fastening System: Mounting yoke for stand

Control System:

• Control Protocols: DMX 512, rail mounted controller
• Channel Modes: 1 Modes of Operation. Mode 1: 7 Channel mode
• Display: Digital

Electrical Specifications:

• Light Source: 1 X 350W COB LED
• Color Temperature: 3 CTO filters, 4353K, 4997K, 5062K
• CRI (Warm White): 91.1 >
• Lumen Output: 5080K On open
• Power Supply: Universal 100-240V 50/60 Hz
• Power Consumption: 490 Watts/4.20 Amps

Sized and Weight:

• Fixture Size: 10.33" X 34.5" X 13.5"
• Fixture Weight: 34.40 lbs
• Packaged Size: 39.5" X 15" X 15.5"
• Packaged Weight: 42.35 lb
