Mega-Lite Enlighten Splitter

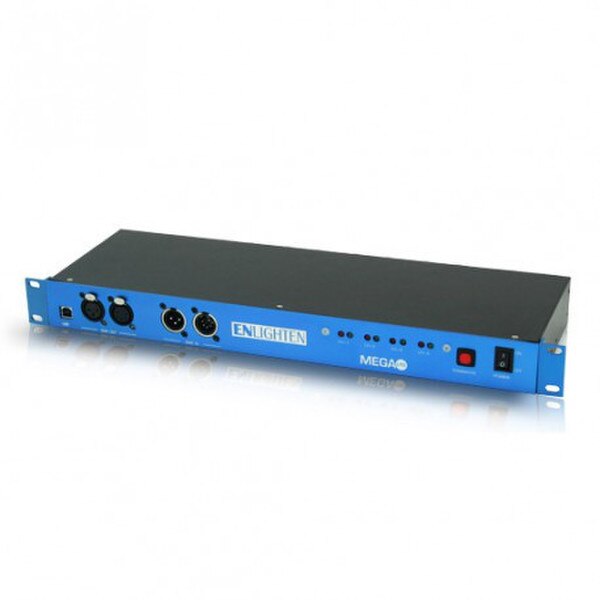

The Enlighten Splitter is an interface and four-output splitter all-in-one that works with the Enlighten Lighting Control Software. The Enlighten DMX to USB interface is built right in. The unit has two inputs for when it is not being used with the Enlighten software. Each output and input has a 3-pin and 5-pin XLR connectors. Electronic isolation is used between input and output, and output and output. Its dimensions are 19” W x 6” L x 1.75”H. It has removable rack ears for rack mounting front or back and is also wall mountable.

Specifications:

• Minimum Requirements:
  • PC with minimum 1GHz Processor Video Resolution of at least 1024 x 768 USB Port for USB to DMX Interface 40mb Hard Drive Space.
• OS:
  • Windows 10, Windows 8 and Windows 7, 32 /64bit, Dual output Video card for Video playback Touch Screen compatible (19" or larger recommended)
• Input DMX Connections:
  • Front and Rear 3-pin & 5 Pin XLR connectors
• Output DMX Connectors:
  • 4 output / 3-pin & 5 Pin XLR connectors
• Power Connection:
  • IEC power connection to Edison
• Fastening System:
  • 1U Rack Mountable Front or Back & wall mountable
• Electrical Specifications:
  • Electronic isolation between input and output, Electronic isolation between input and output, Terminator button for last unit, Power indicator, Signal indicator, Power Consumption: 110V-60 Hz
