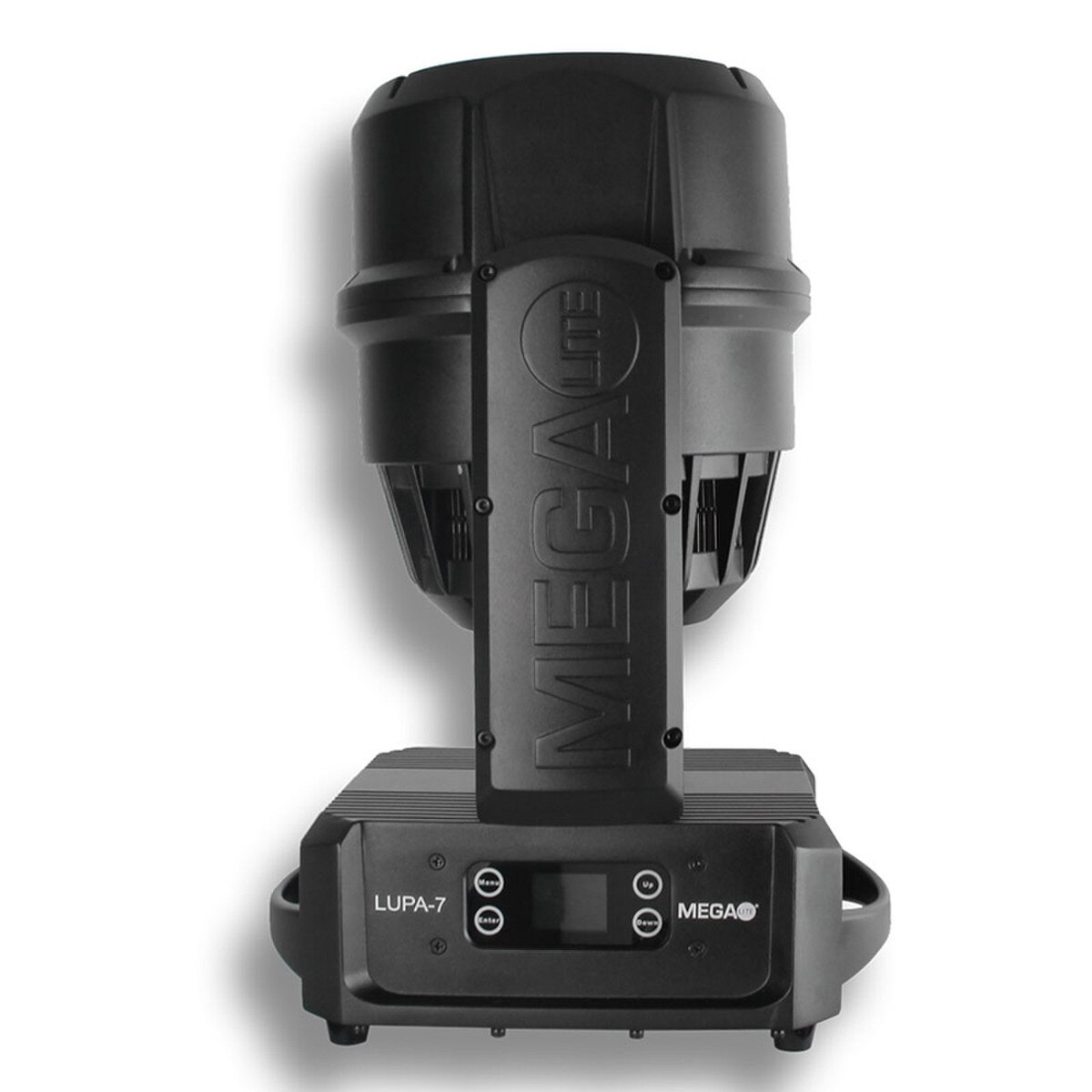

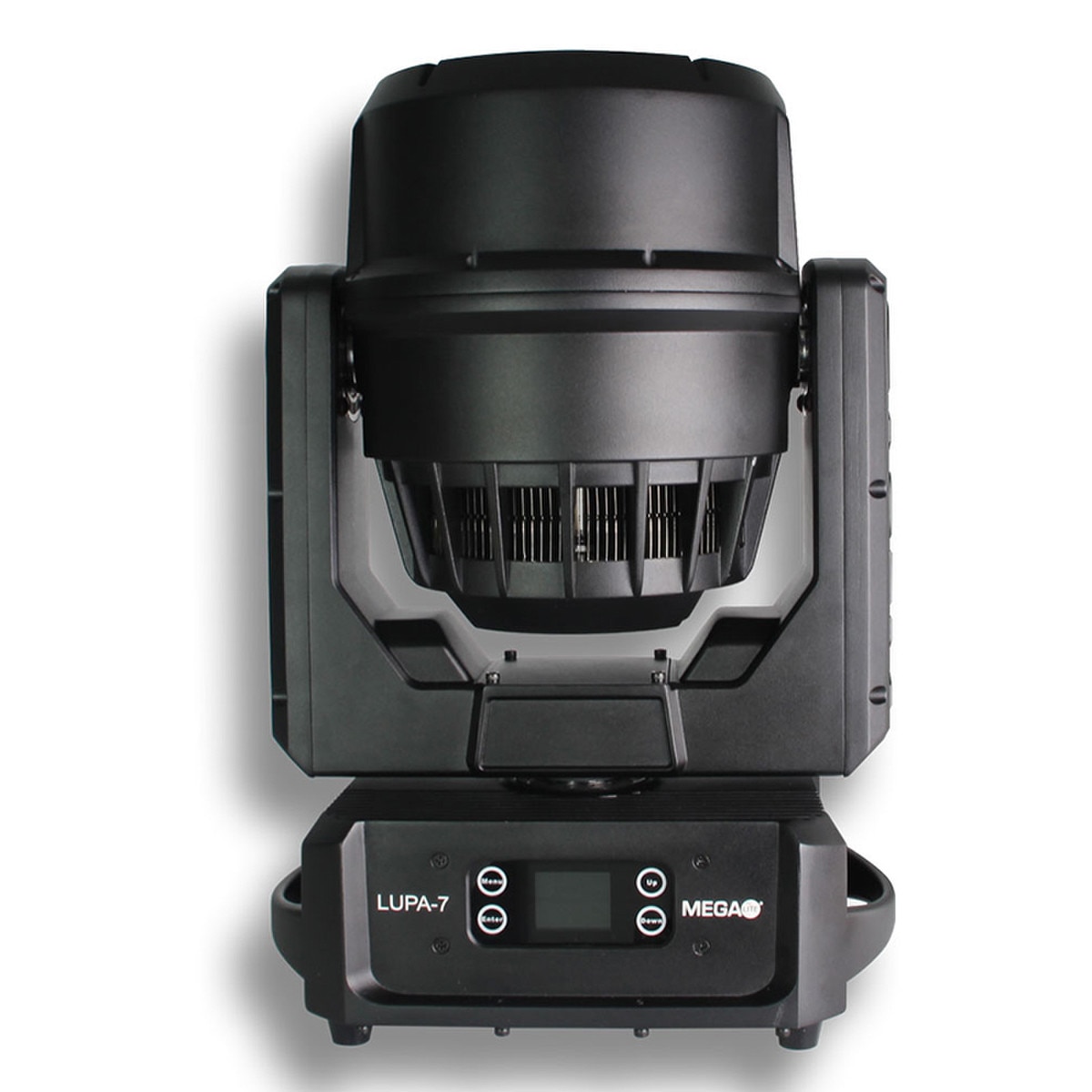

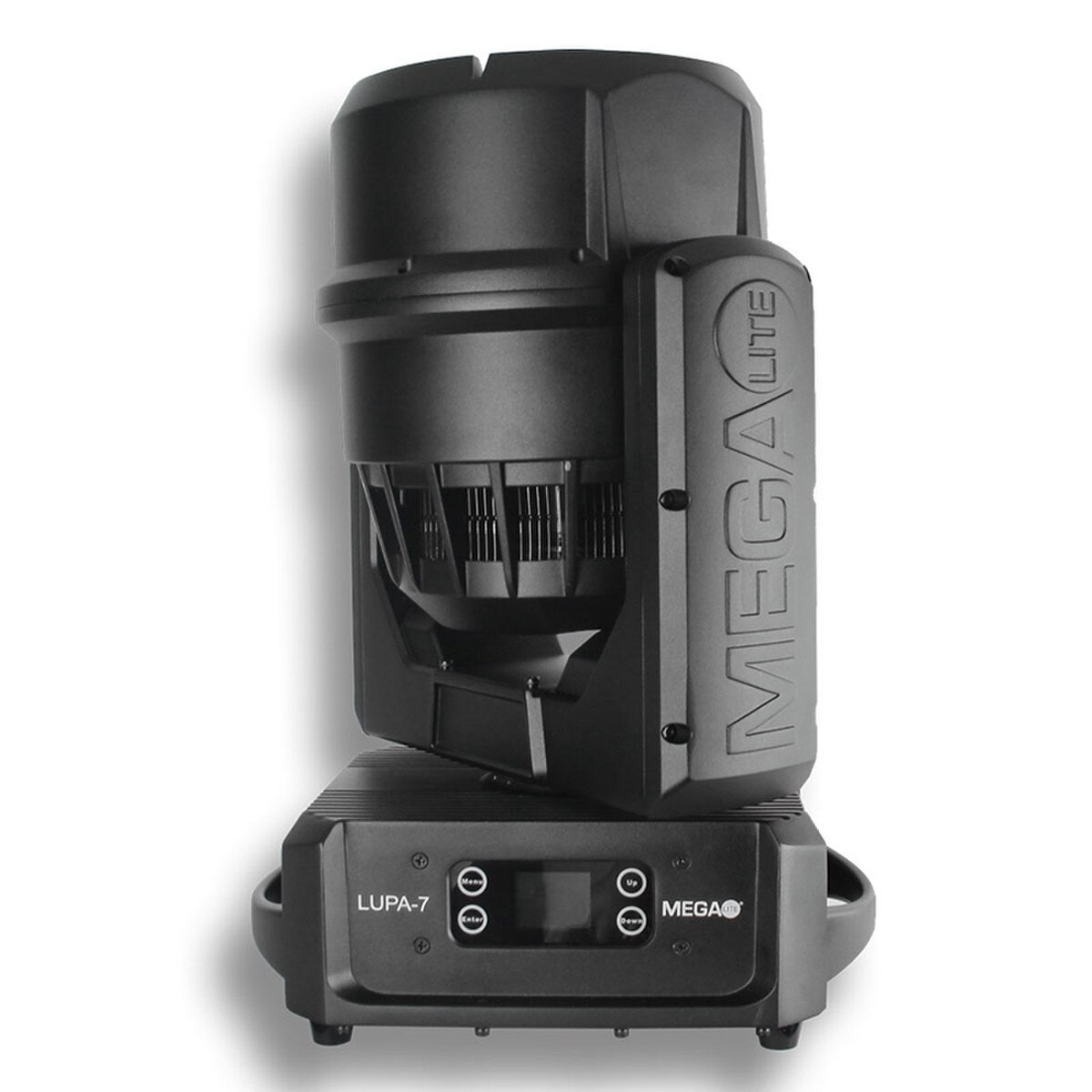

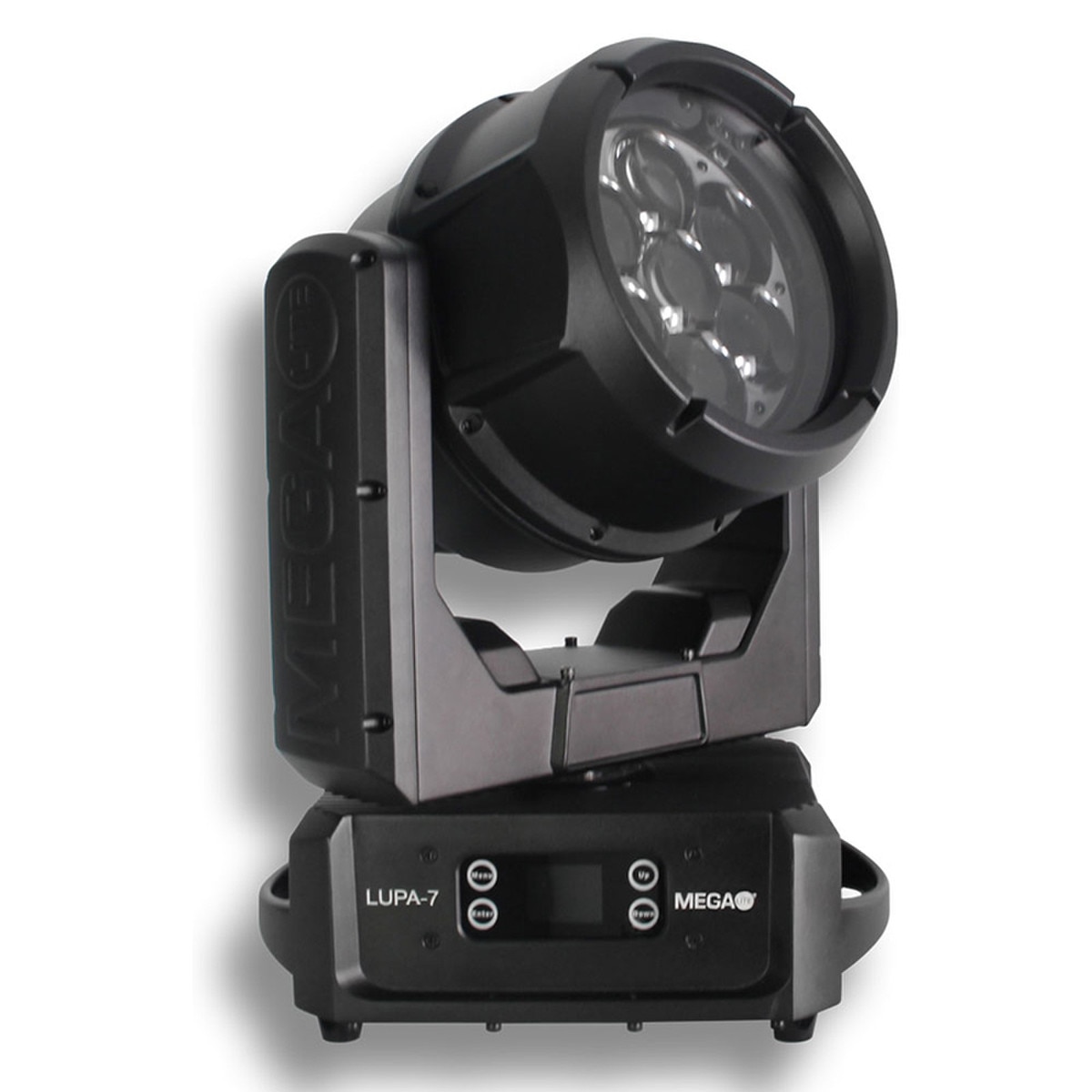

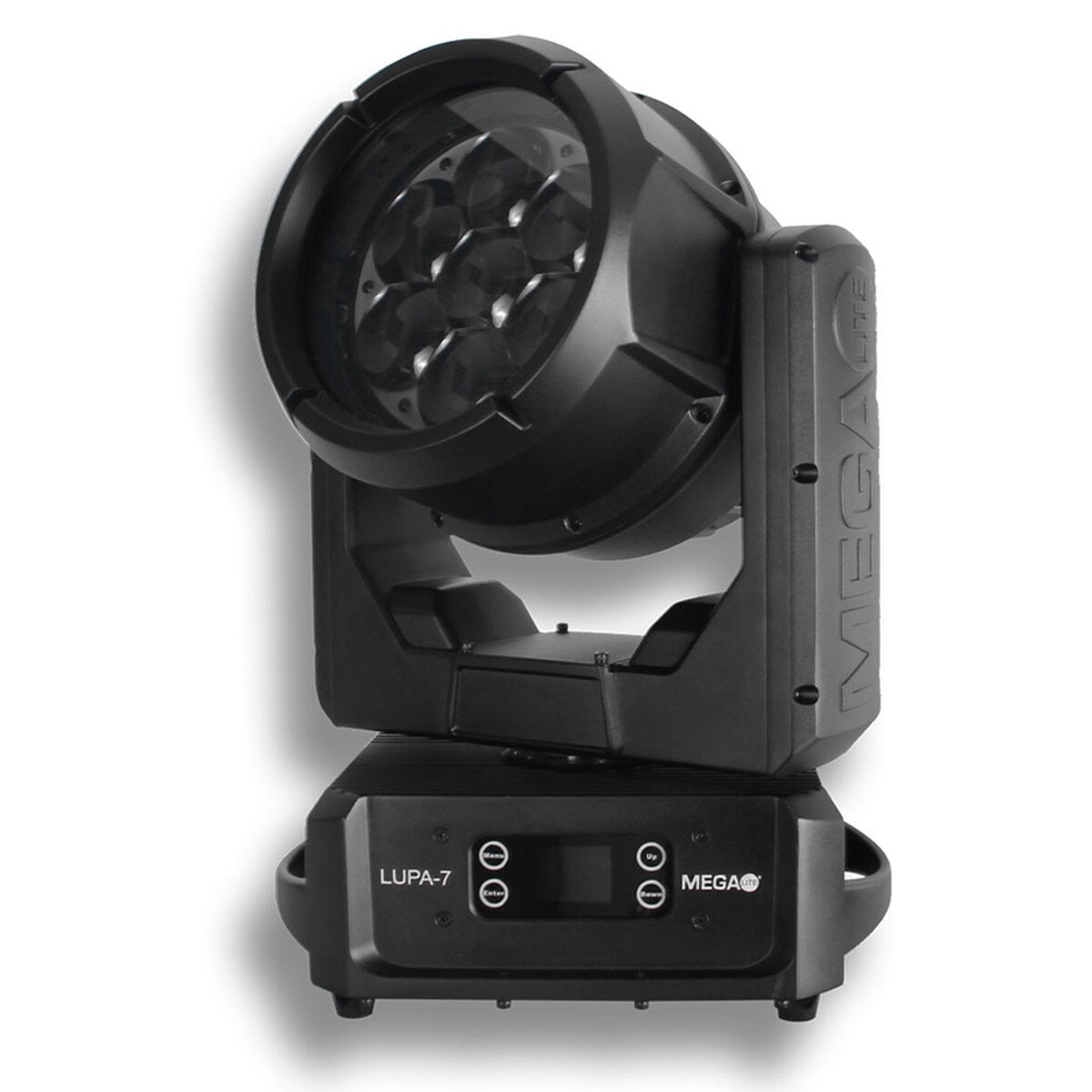

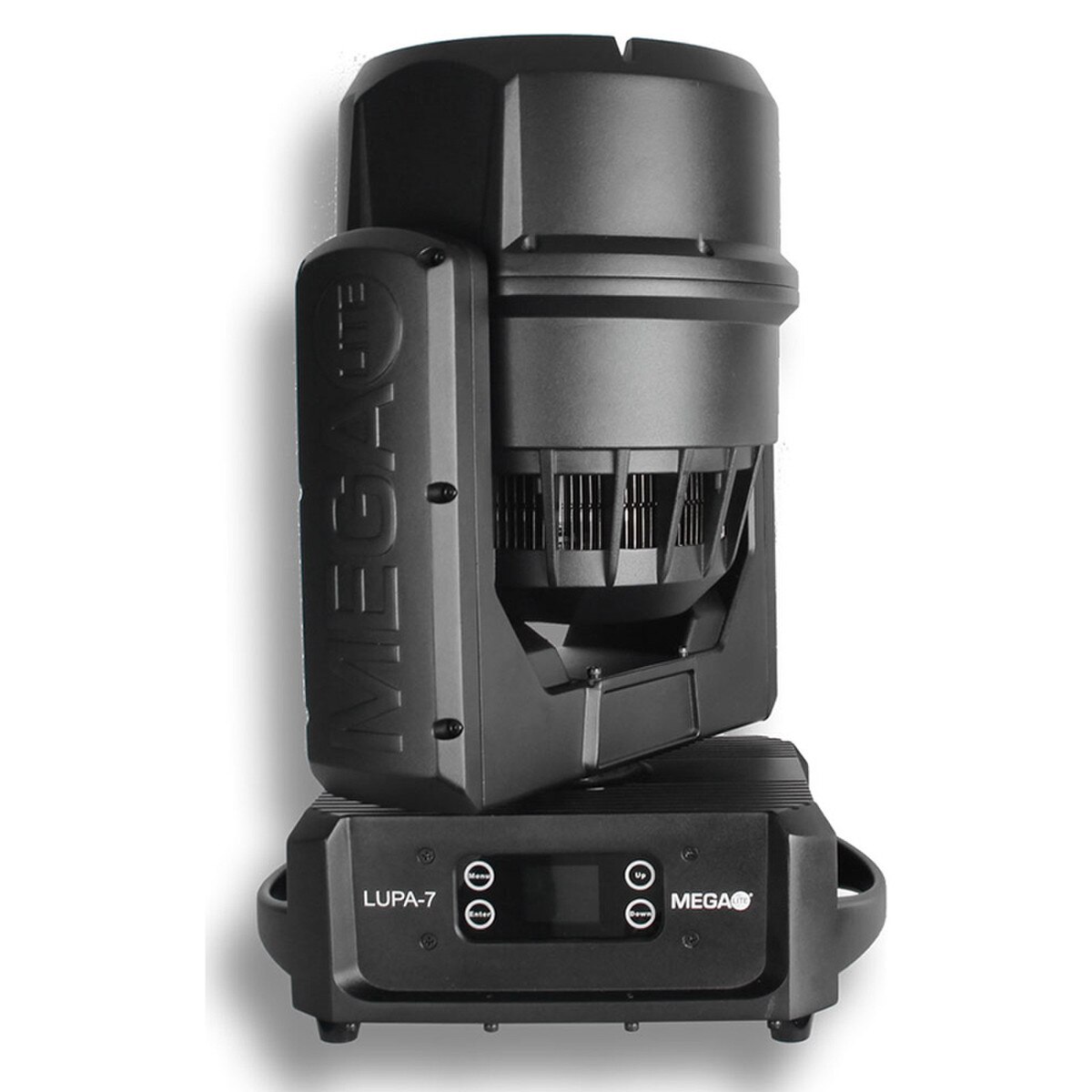

Mega-Lite Lupa-7

(0)No Reviews yet
SKU: Mega-Lite 1315

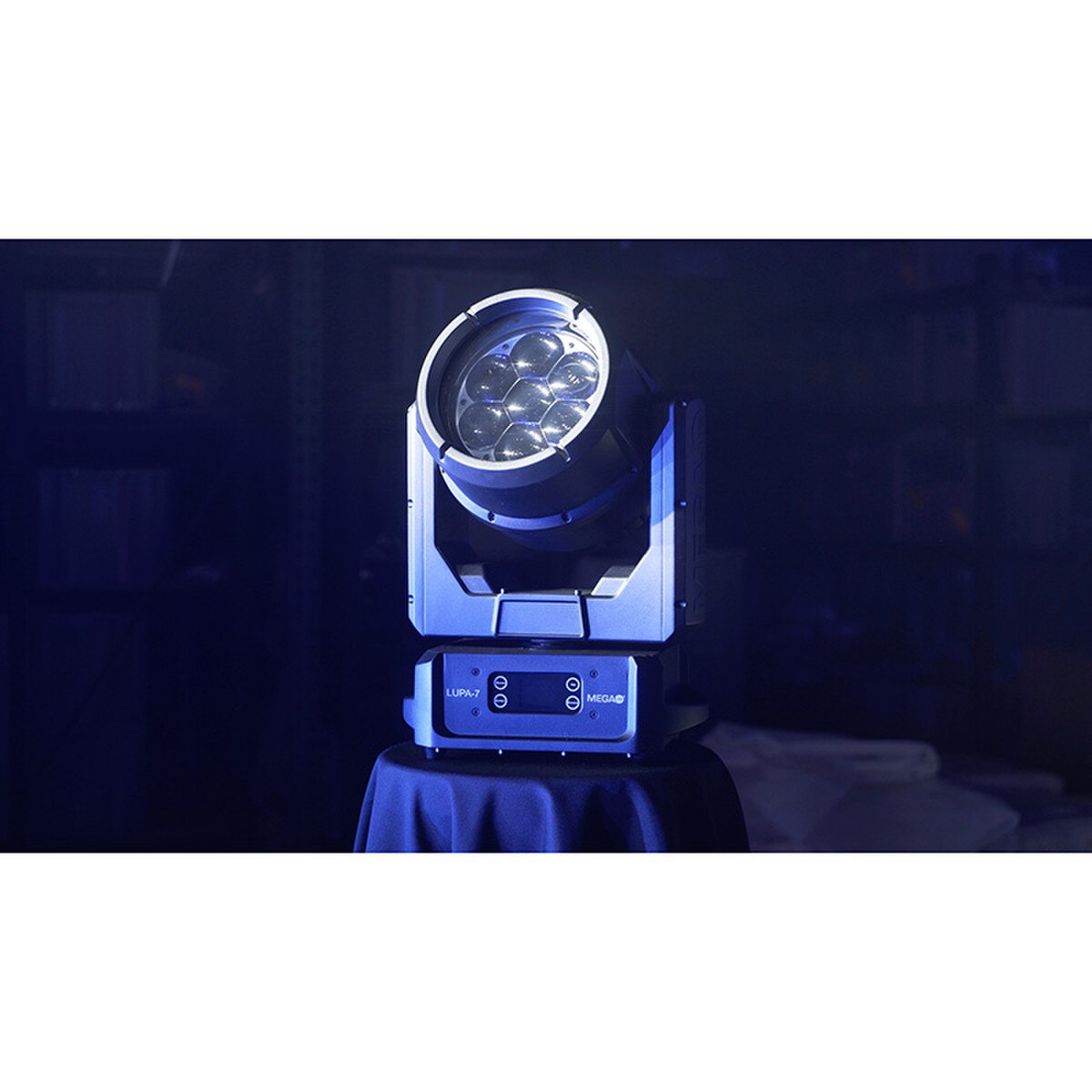

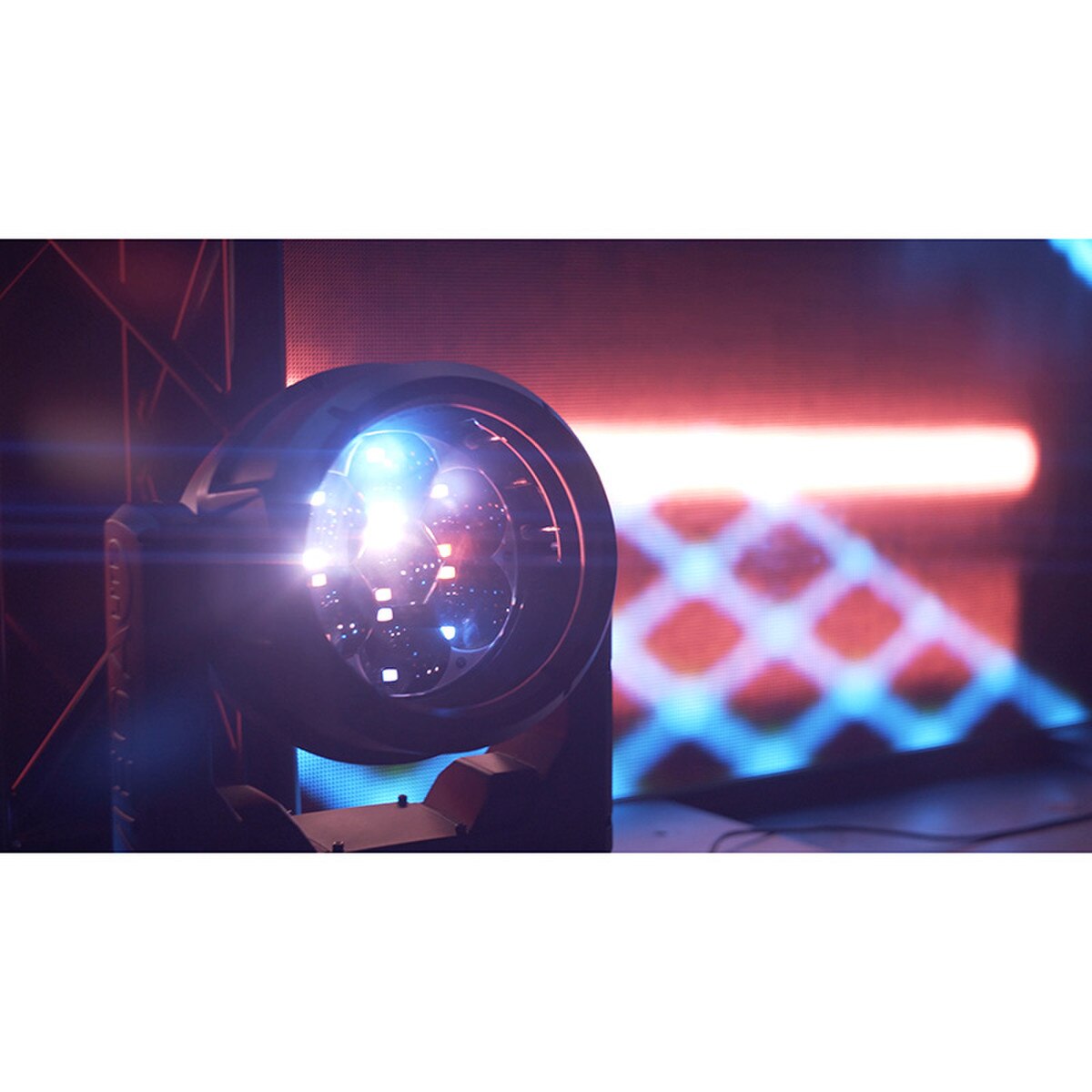

The Lupa-7 is equipped with 7 60W LEDs with individual beam effects allowing the user a wide range of potential looks. Including 28 X .5W pixel mappable LEDs that add ambiance to any lighting experience. With rotating lenses that expand the amazing possibilities for looks you can achieve this fixture is packed full of features.

7 60W LEDs:

  • Equipped with seven 60W LEDs the lupa-7 floods your stage with vibrant colors, ensuring a visually captivating experience.

Beyond Media:

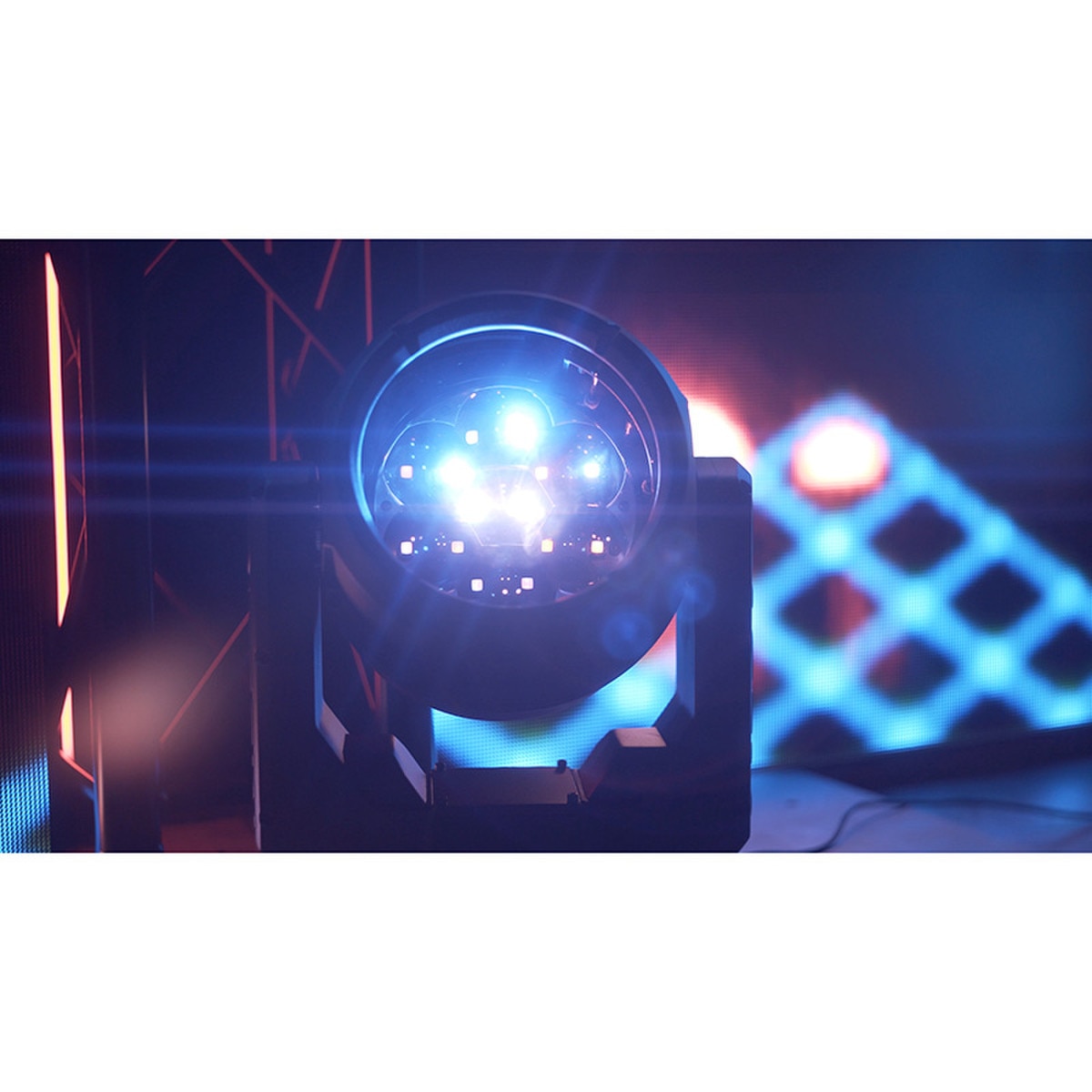

  • With 28 X .5W Pixel mappable back LED’s that add depth and ambiance to your show with eye catching video playback and macros go beyond lights.

Lens Rotation:

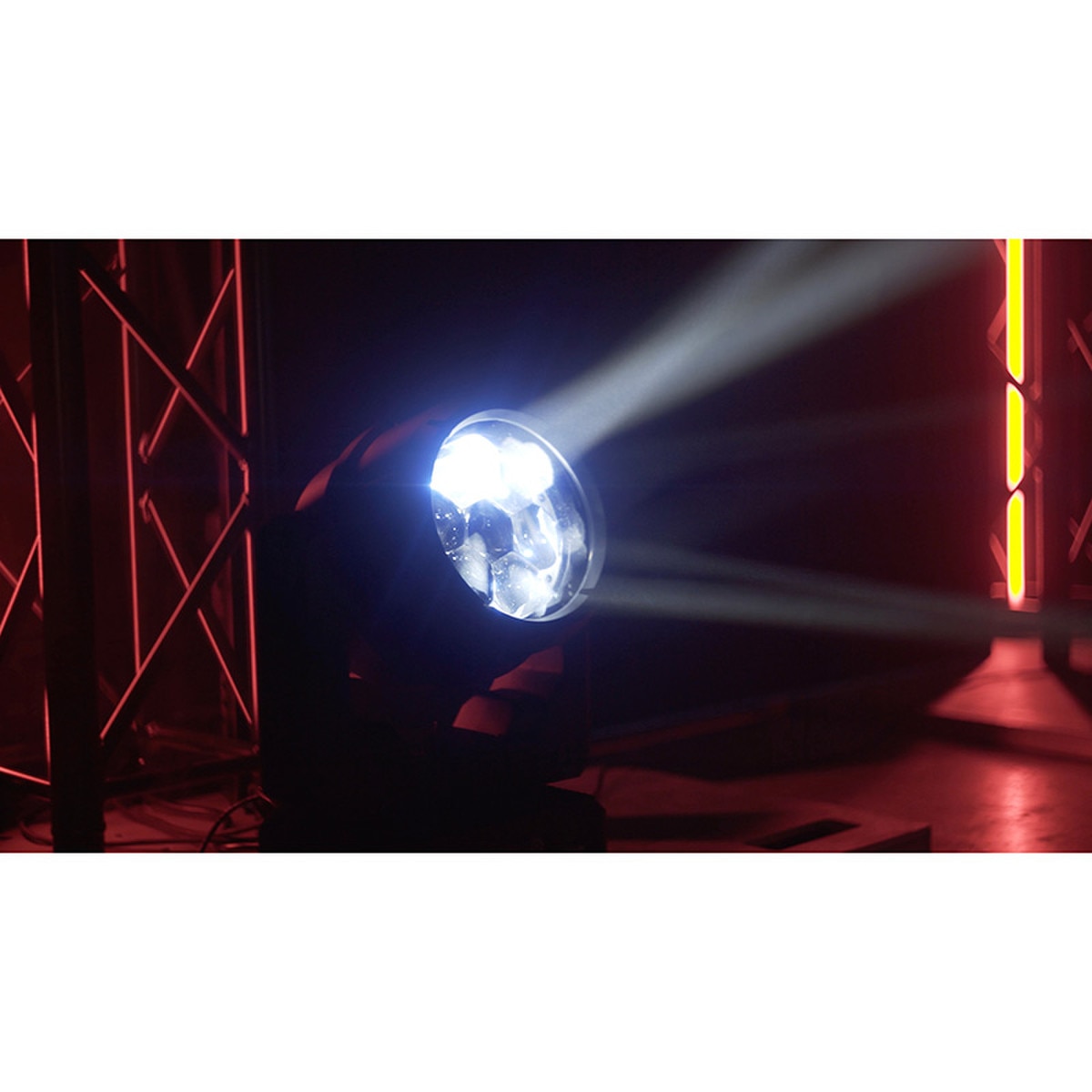

  • Take control with dynamic lens rotation, directing beams of light to create sweeping effects tailored to your performance.


  • Item ID: 1315
  • Light Source: 7 X 60W RGBW
  • Light Source: 28 X .5W RGB
  • DMX Connectors: 5 Pin XLR In and Out (IP Rated)
  • Power Connection: Seetronics SAC3FPX Input & SAC3MPX Output (NEMA 5-15 to SAC3FX-67 Cable Included)
  • Fastening System: 2 Quick Release Clamp Mounts
  • Power Supply: Electronic 100-240V AC 50/60
  • Power Consumption: 512 Watts / 4.4 Amps @ 110V
  • Display: Digital
  • Zoom Angle: 3° To 32° Electronic Zoom
  • Lens: Infinity Lens Rotation
  • Housing: Die-Cast Aluminum
  • Color Temp White: 9090K
  • CRI (Warm White): 75 @ full
  • Lumen Output: 3207Lm
  • Control Protocols: DMX 512, Artnet, sACN, RDM
  • RDM: Yes
  • Channel Modes: 27 Channel Mode, 139 Channel Mode, 134 Dual Mode DMX+ Artnet

Mega-Lite 1315 User Manual.pdf
Mega-Lite 1315 Data Sheet.pdf
