Mega-Lite PieLite Multibeam

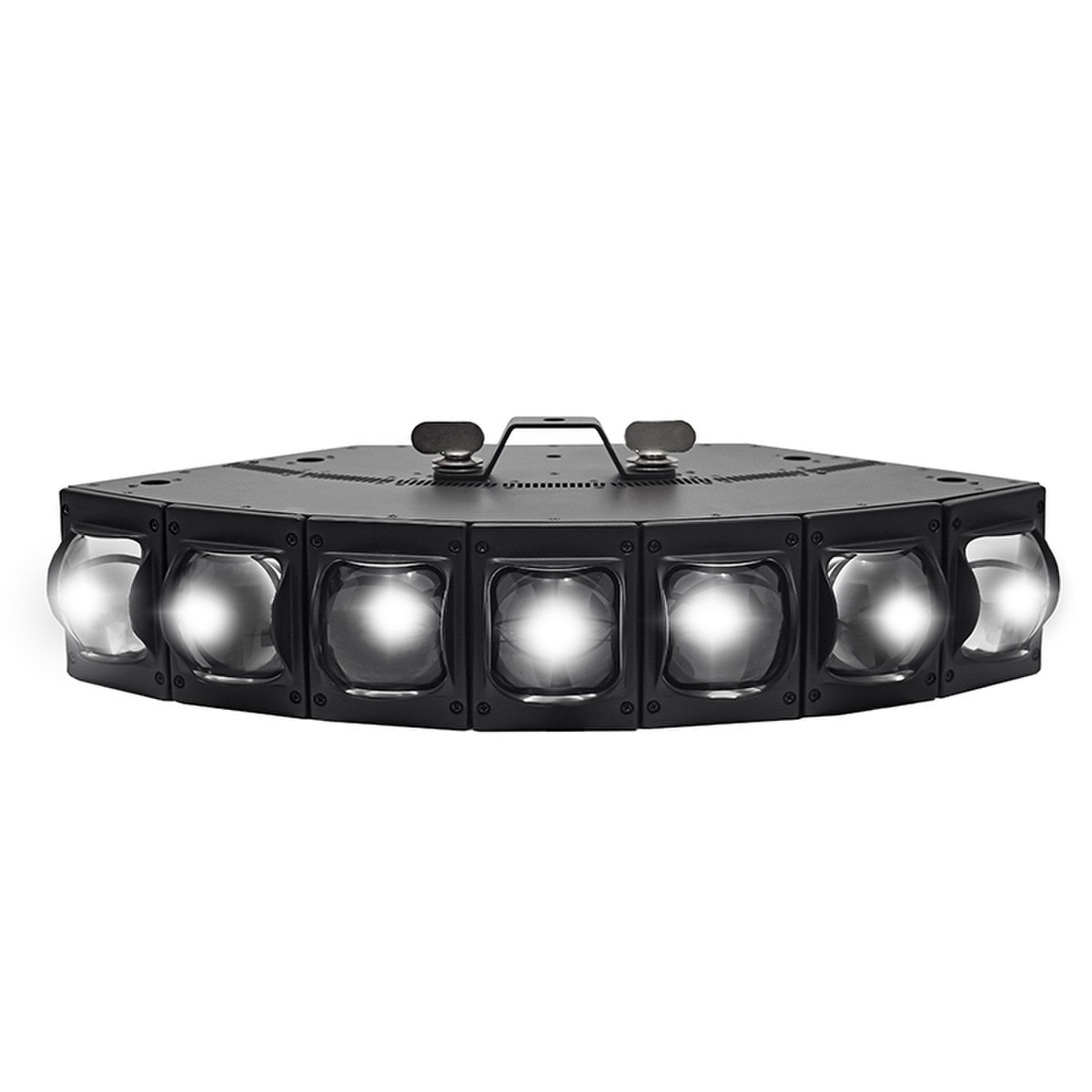

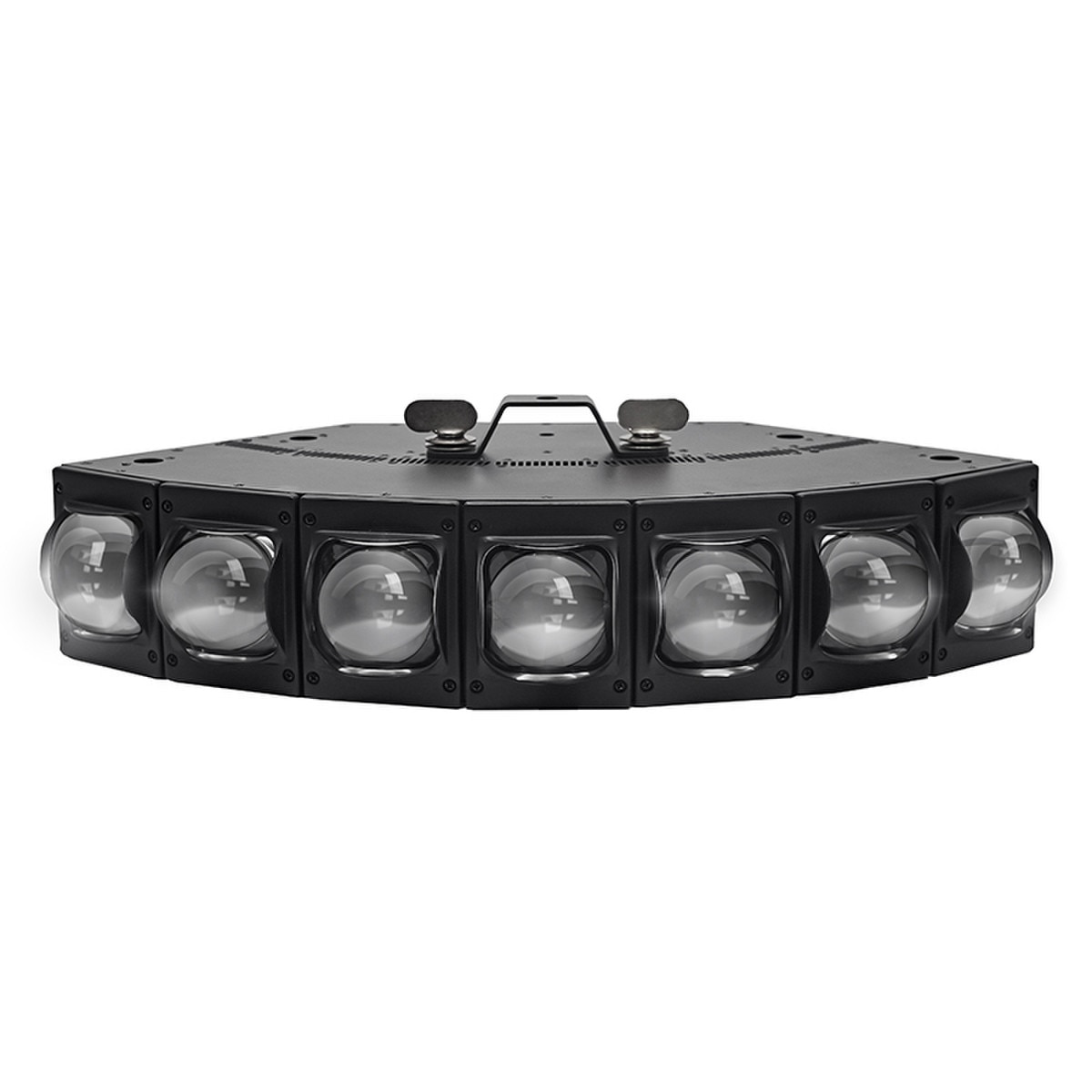

The PieLite Multibeam is a versatile lighting fixture featuring 7 x 60W RGB + Cool White LED 4.5° pixel beams with individual control. It offers a rich color spectrum, clear white, and several mounting positions (horizontal, vertical, diagonal) that allow for creative designs. The modular grouping options (2, 3, or 4 units) allows for creative setups such as circles, semicircles, or standalone arrangements, making it ideal for corners or tight spaces. The PiteLite Multibeam's powerful, controllable beams can be used in various settings, enhancing any space with stunning visual effects.

Features:

• 7 Mounting Positions: The PieLite Multibeam offers 7 different mounting positions, including horizontal, vertical or diagonal, providing flexibility for various set up options.
• Modular Grouping - 2, 3, 4 Units: Unleash your creativity by grouping 4 units to form a circle or 2 units to create a semicircle. Position it in corners, walls, ceilings or tight spaces to dazzle the room with powerful beams.
• 7 60W RGB + Cool White 4.5° Pixel Beam: Achieve stunning white effects alongside a rich color spectrum, thanks to individual 4.5° pixel control for precise lighting customization.

Mechanical Specifications:

• Housing: Metal

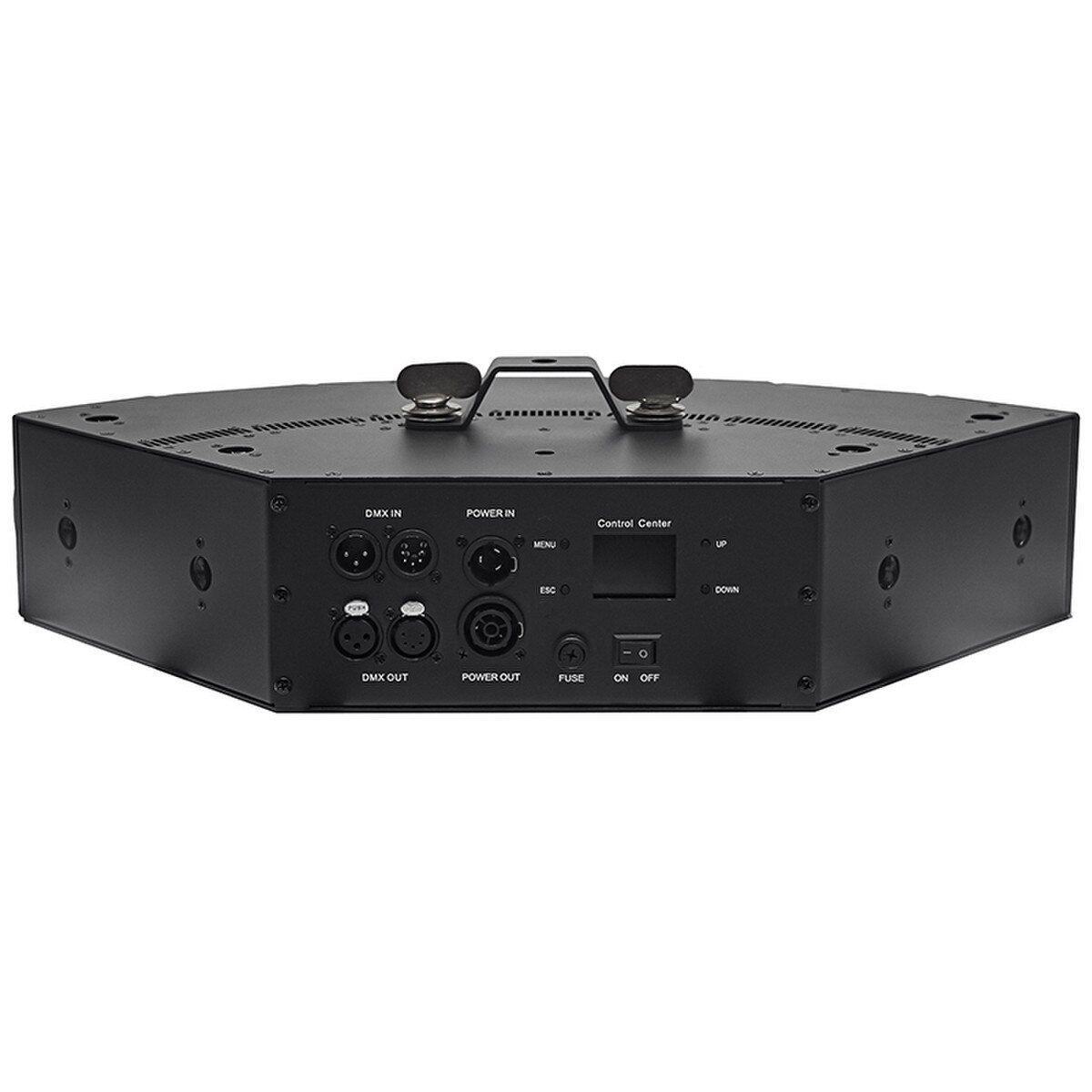

• Power Connection: Seetronics SAC3MPX Input & SACFPX output (Nema 5-15 to SAC3FX-67 cable included)
• Signal Connection: 3 and 5 Pin XLR In and Out
• LED Angle: 4.5°
• Segments: 7 segments
• Fastening System: Quick Release Clamp Mounts, Multiple Fixture, Quick Release Joining Mounts

Electrical Specifications:

• Light Source: 7 X 60W RGBW
• Color Temperature: 7227K (white Emitter Only)
• CRI (Warm White): 73
• Lumen Output: 792
• Power Supply: Electronic 90-264V AC 50/60
• Power Consumption: 537 Watts / 4.69 Amps @110V

Control System:

• Control Protocols: DMX 512, RDM
• RDM: Fixture Label
• DMX Start Channel Address
• Channel Mode Set
• Channel Modes: 4 Modes of Operation
• Mode 1: 4 Channel mode
• Mode 2: 10 Channel mode
• Mode 3: 28 Channel mode
• Mode 4: 38 Channel mode
• Display: LCD

Size & Weight:

• Fixture Size: 21” X 11.33” X 5.25” (53.34 cm x 28.77 cm x 13.335 cm)
• Fixture Weight: 15 lb 14oz (6.8 kg)
• Packaged Size: 25” X 13.75” X 8” (63.5 cm x 34.92 cm x 20.32 cm)
• Packaged Weight: 18lb (8.16kg)

Included Items:

• Pielite fixture 4150
• Quick release clamp mount 4150-HOU-QUI-2
• Quick release joining mount 4150-HOU-QUI-4
• User manual
• Power cable
