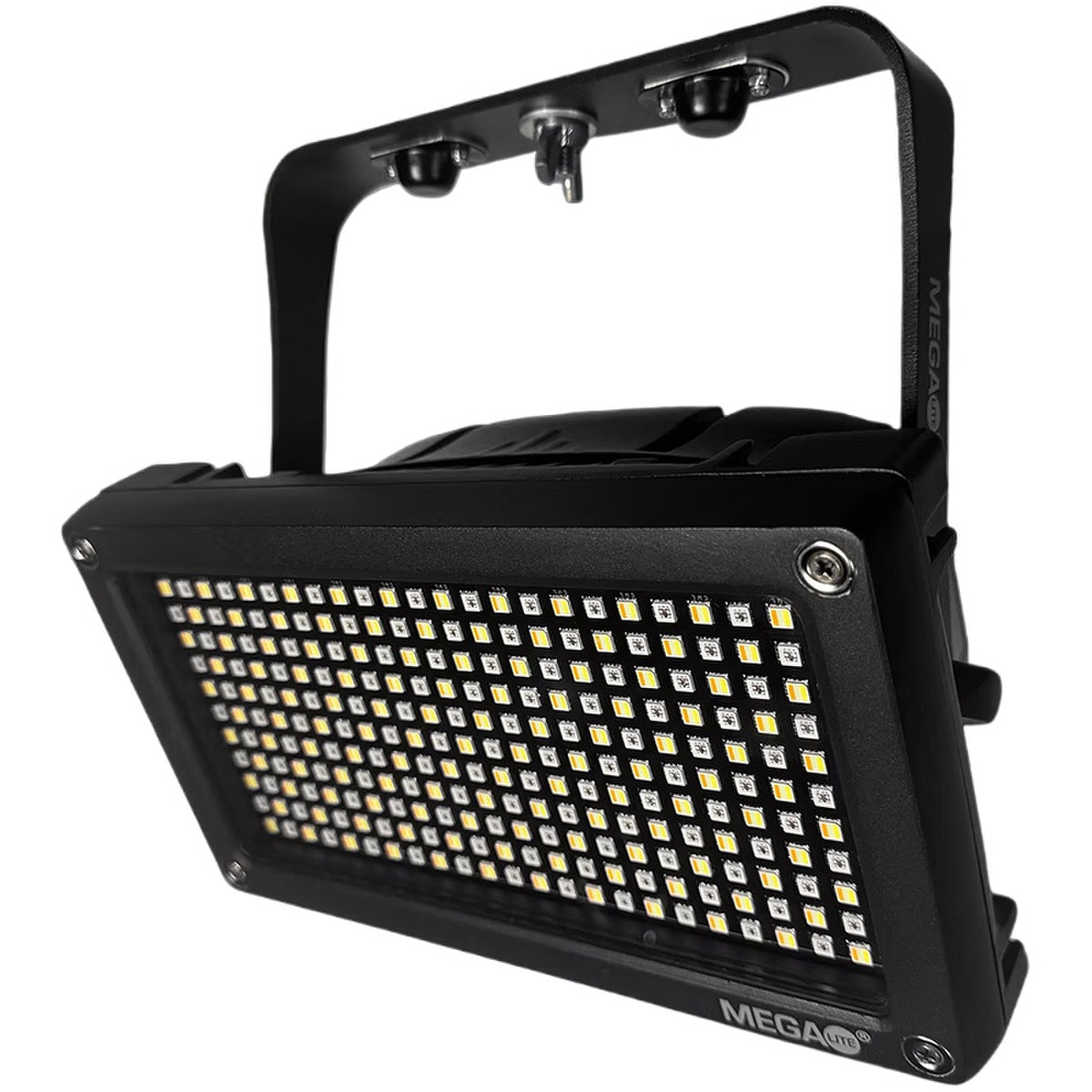

Mega-Lite Teclight Spectra

The Teclight Spectra is a versatile lighting fixture that offers a comprehensive solution for a wide range of professional applications. As an essential tool for lighting professionals, it offers manual control and variable white as a wide-key light. Users can adjust both intensity and color temperature from 1500K to 15000K using two control knobs. Designed for ease of use, the fixture offers plug-and-play functionality and, when connected via DMX, grants access to a full color spectrum. Or manually control several functions via its onboard display.

The Teclight Spectra utilizes two chip sets: one RGB and another that incorporates Amber, Cyan, and Lime, enabling it to produce a broad array of colors as needed. Additionally, with a high color rendering index (CRI) averaging 96 in manual mode and a high refresh rate, the fixture is particularly well-suited for broadcasting and other professional lighting needs. The adjustable color temperature allows users to select the precise warmth or coolness of light required for various applications, spanning 1500K to 15000K. This feature facilitates seamless adaptation to diverse lighting environments and staging requirements.

Features:
Embedded DMX/Artnet/ACN Controller:

• With an average CRI of 96 in manual mode, the fixture accurately reproduces colors across various lighting conditions. This high CRI value ensures that colors appear vivid and accurate to life, an essential requirement in applications such as film, photography, and broadcast production, where faithful color representation has a significant impact on the quality of visual output.

Cast aluminum housing:

• It provides structural durability and protection for the fixture’s internal components. This robust construction not only enhances the unit's longevity but also provides resistance to physical impacts and environmental stress, ensuring reliable operation in both indoor and outdoor settings.

IP65 Rating:

• The fixture is protected against dust ingress and low-pressure water jets from any direction, ensuring reliable performance in demanding outdoor environments.

Diffuser:

• The diffuser serves a crucial function by softening and evenly distributing the light emitted by the Teclight Spectra. This results in reduced harsh shadows and glare, producing a more uniform and visually pleasing illumination. Using a diffuser is especially important in professional applications such as film, photography, and live broadcasting.

Barn Door:

• Barn Door accessories are adjustable metal flaps attached to the perimeter of the lighting fixture, allowing users to precisely shape and direct the light beam.

ETL-listed:

• The fixture has been tested and meets safety and quality standards established by Electrical Testing Laboratories. This certification demonstrates compliance with North American safety regulations, ensuring the equipment is safe for professional use.

RDM-ready (Remote Device Management):

• Enabling bi-directional communication with our Total control system or most RDM-ready controllers.

147º beam angle:

• It enables broad coverage from a compact fixture. It's a powerful 11640 lm full-spectrum fixture that can create almost any color we can see and some we can't.

Specifications:
Mechanical Specifications:

• Housing: Die-Cast Aluminum
• IP Rating: IP65
• Power Connection: Input: Seetronics SAC3PX-67 Panel Mount
• Output: Seetronics SAC3FX-67 Panel Mount
• Signal Connection: 5 Pin XLR In and Out
• Fastening System: Mounting yoke with quick-release clamp

Control System:

• Control Protocols: DMX512
• Channel Modes: 4 Modes of operations
• Mode 1: 6 Channel mode
• Mode 2: 7 Channel mode
• Mode 3: 8 Channel mode
• Mode 4: 11 Channel mode
• RDM: Address, Mode Sensor monitoring, hours, and device reset.
• Kbos: Dimmer, CCT
• Via Display: Standalone, Manual

Electrical Specifications:

• Light Source: 312 X 0.5W LEDs
• LED Type: Red = 631nm
• Green = 521nm
• Blue = 458nm
• Amber = 614nm
• Cyan = 451nm
• Lime = 563nm
• CRI: 96 Optimized via DMX Control
• 94 Warm White 3060K
• 96 Cool White 13518K
• CCT: 6217K (at full)
• Lumen Output: 11640 lm
• Power Supply: Electronic 100-240V AC 50/60Hz
• Power Consumption: 146 Watts, 1.22 Amps @ 110V PFC.99
• Display: LCD

Dimensions:

• Fixture Size: 10.75" X 5.39" X 6"
• Fixture Weight: 8.3 lbs
• Packaged Size: 13.75" X 12.5" X 8"
• Packaged Weight: 10 lbs

Included:

• 1pc Teclight Spectra / 1pc Power Cable / 1pc Quick Disconnect Clamo Mount / 1pc User Manual

Accessories:

• Barndoor: 7080-ACC-BAR
• Diffusion Holder: 7080-ACC-DIF
• Diffusion Filter: 7080-ACC-120-FIL
• 12 Unit Road Case: CAS-7080-12-B

Mega-Lite Teclight Spectra Data Sheet.pdf
Mega-Lite Teclight Spectra User Manual.pdf
Mega-Lite Teclight Spectra Photometrics.pdf
