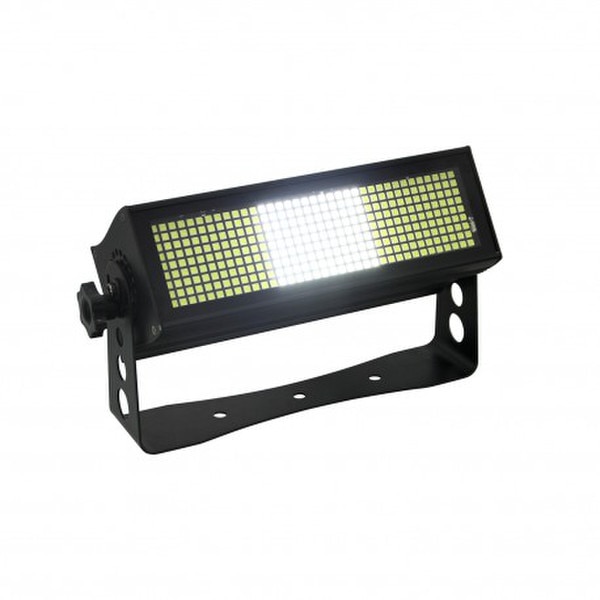

Mega-Lite XS LED Strobe W

The XS LED Strobe W is an immensely bright, versatile fixture from Mega-Lite. It is equipped with a total of 324 White SMD LEDs. The LEDs have a wide 140º LED angle and the unit can operate as a wash, strobe or blinder light. The XS LED Strobe W has 3 and 9 segments of control. Line up multiple unit together in matrix to create chases and other eye-catching effects. The blinder effect boosts the power of the LED for 4 seconds to give an enormous burst of like worthy of any stage or venue.

Specifications:

• DMX Connectors: 5 pin XLR connectors in and out
• Thermal: Maximum ambient temperature 104° Maximum surface temperature 140°
• Fastening System: Single Mounting Yoke
• Display: Digital
• Power connection: Power Con in & out
• LED Quantity: 324 White SMD LEDS 6500K
• LED Angle: 140°
• LED Lifetime: 60 to 100 thousand hours
• Protocol: DMX 512 Protocol
• Control Options: Display Control, Master Slave
• Modes:
  • Mode 1: 1 Channels Strobe
  • Mode 2: 3 Channels Dimmer, Duration, Strobe
  • Mode 3: 4 Channels Dimmer, Duration, Strobe, Macro
  • Mode 4: 7 Channels Dimmer, Blinder, Duration, Strobe, Macro, 3 Segment Macros, 9 Segment Macro
  • Mode 5: 13 Channels Dimmer, Intensity X9, Strobe, Macro
  • Mode 6: 1 Channel Dimmer
  • Mode 7: 3 Channels Dimmer x 3
  • Mode 8: 9 Channels Dimmer x 9
