Light Source Mini-Claw Aluminum Finish

(0)No Reviews yet
$39.51
QuantityPrice
1 – 11$39.51
12 – 23$38.32
24 – 35$37.53
36 – 47$36.74
48 +$36.35
SKU: Light Source MIM

If you add this item, you're only $209 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

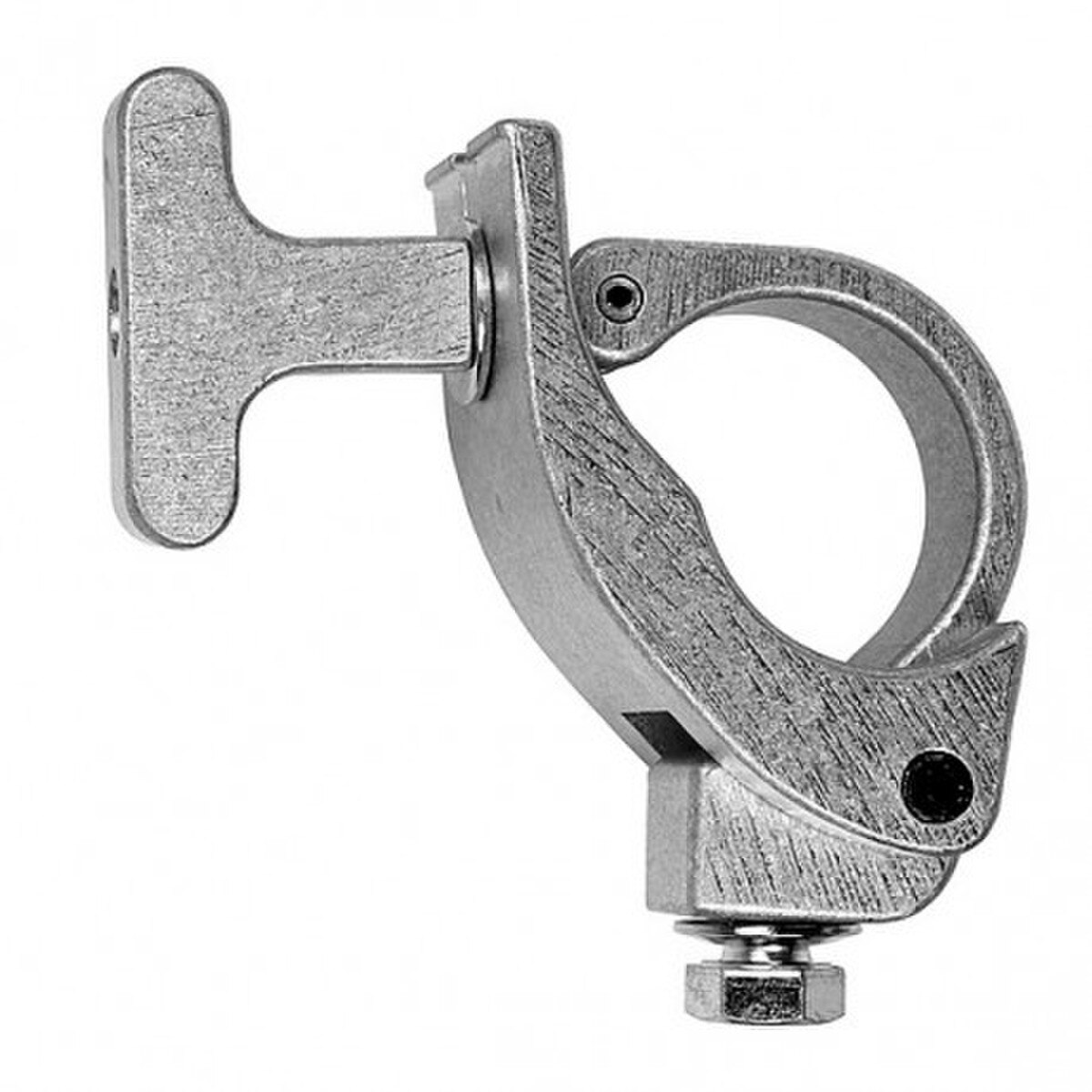

The Mini-Claw has a lightweight profile and is used for hanging small lighting fixtures on truss or pipes.


The Mini-Claw’s wrap around construction protects truss from being marred and supports the weight of the fixture as it is being secured.

Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 TPI by 3/4" long hex head grade 5 bolt for fastening to the fixture.



Features:

  • Minimum Size: 1.25" pipe, 1.66" OD
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
  • Safe Vertical Working Load: 150 lb 66kg

Hardware:

  • 1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt
  • 1" Belleville spring washer

Specifications:

  • Dimensions: 3 3/8" tall x 2" thick
  • Weight: 15 oz

Light Source MIM.jpg​​​​​​
