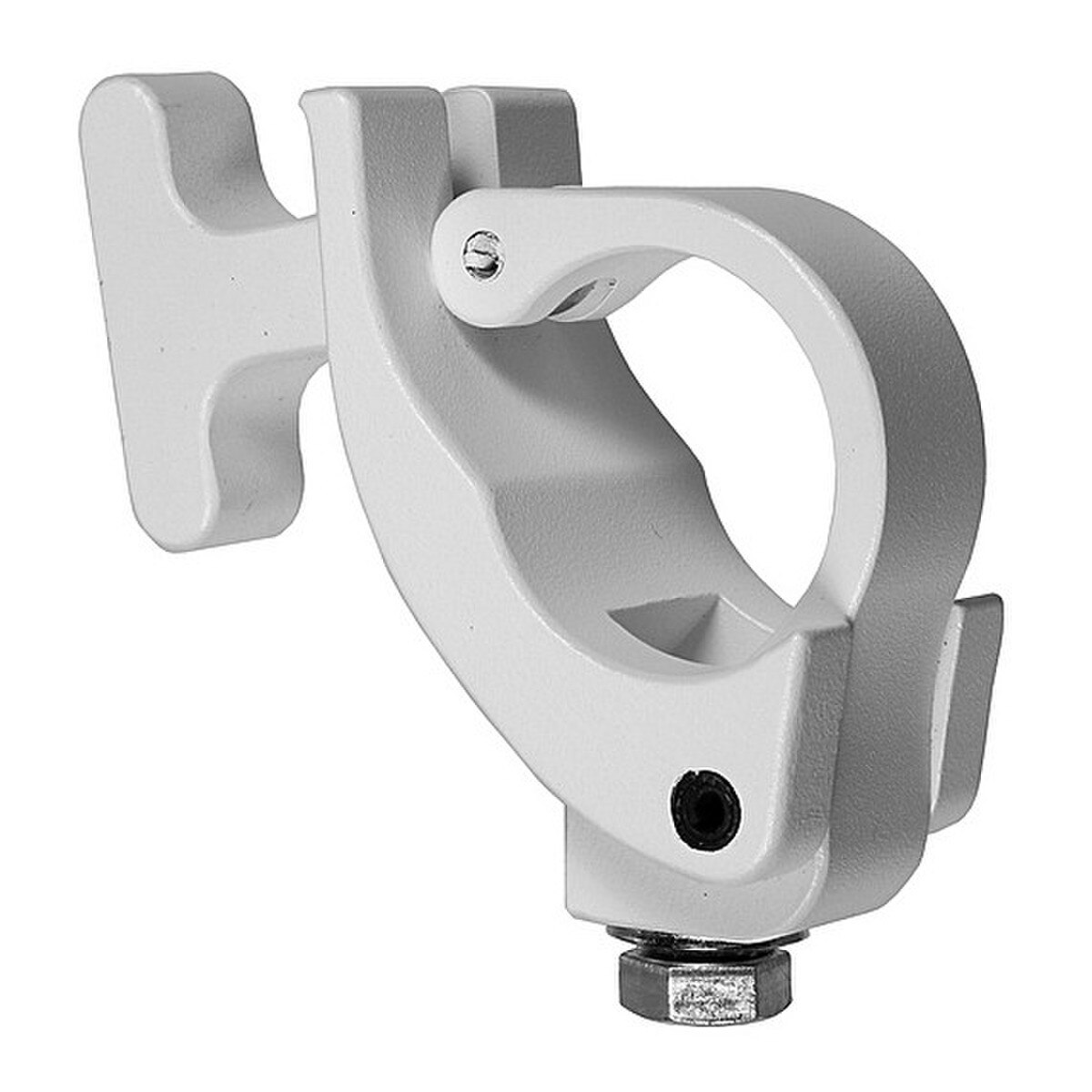

Light Source Mini-Claw White Powder Coat

The Mini-Claw has a lightweight profile and is used for hanging small lighting fixtures on truss or pipes.


The Mini-Claw’s wrap around construction protects truss from being marred and supports the weight of the fixture as it is being secured.


Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 TPI by 3/4" long hex head grade 5 bolt for fastening to the fixture.

Features:

• Minimum Size: 1.25" pipe, 1.66" OD
• Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
• Safe Vertical Working Load: 150 lb 66kg

Hardware:

• 1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt
• 1" Belleville spring washer

Specifications:

• Dimensions: 3 3/8" tall x 2" thick
• Weight: 15 oz
