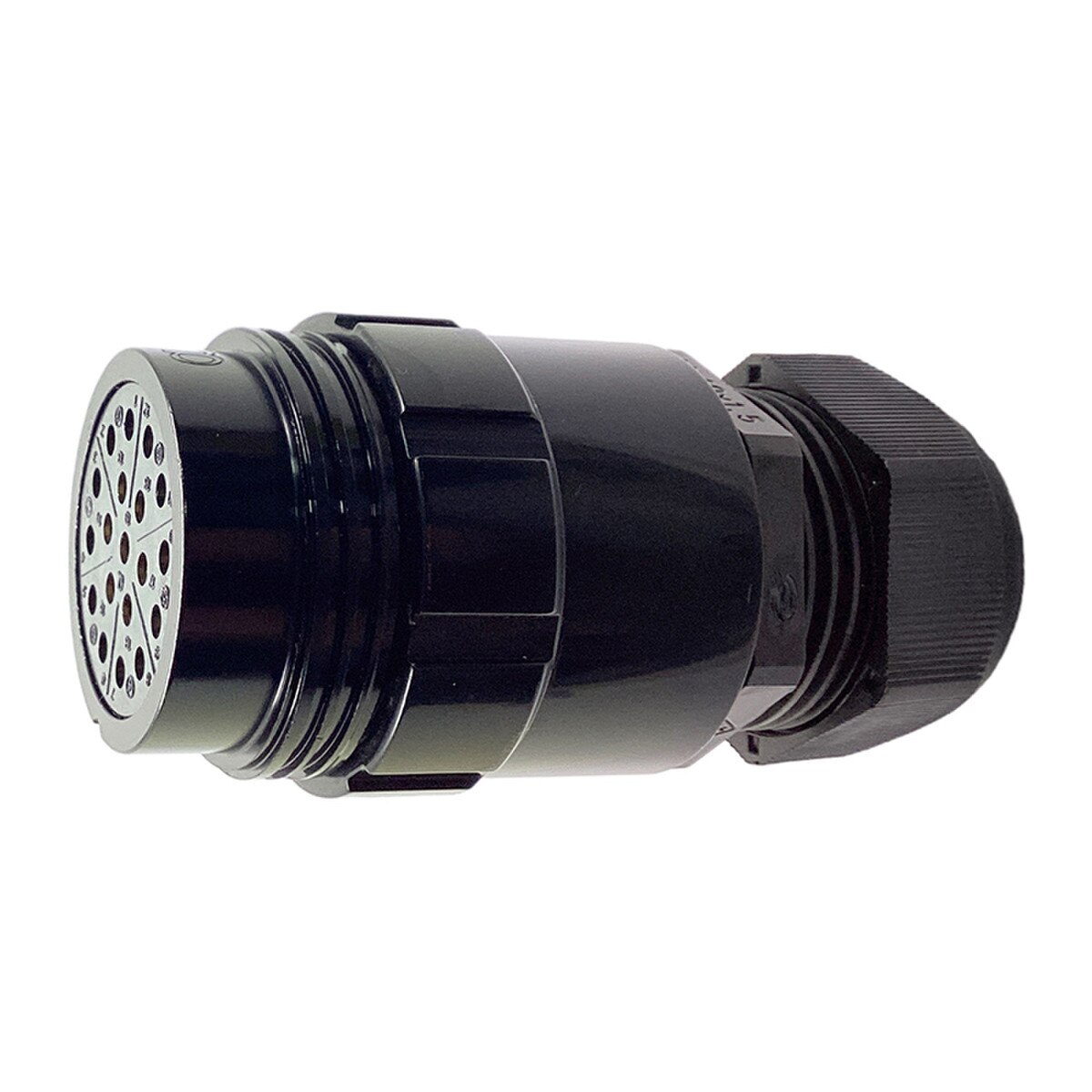

CEEP 19-Pin Female Socket with Leading Earth Pins

(0)No Reviews yet
$92.13
SKU: 9201419E00SA20

If you add this item, you're only $157 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Back

Details

Specifications:

  • Series: 92
  • Applications: Pro Light & Sound
  • Connector Type: Circular
  • Plan-form: 419E, 19 Pin, With leading Earth Pins
  • Gender: Female Socket
  • Termination Method: Solder
  • Contact Material: Copper Alloy
  • Contact Plating: Gold over Nickel
  • Shell Material: Aluminum Alloy
  • Shell Plating: Black anodised (non-conductive)
  • Insulator Material: PPS
  • Current Rating: 19 x 25A
  • Voltage Rating: 400V
  • Peak Voltage: 1,750
  • Max Wire Area Size: 19 x 5.1mm²
  • Contact Resistance: 5mΩ
  • IP Rating: IP67
  • Min Cable Diameter: 11mm
  • Max Cable Diameter: 20mm
  • Min Operating Temperature: -40°C
  • Max Operating Temperature: +85°C

9201419E00SA20 Data Sheet.pdf
