Nady 200-Channel UHF Wireless Microphone System with HM-10 Headset
Details
The U-2100/HM-10 UHF Omnidirectional Condenser Wireless System with 2 x HM-10 Headworn Microphones from Nady Systems includes a 100-channel U-2100 dual receiver, an AC-2100 power supply, two HT-1100 handheld transmitter microphones, and two HM-10 Headmic Headworn Omnidirectional Condenser Microphones. The U-2100 has 100 selectable UHF frequencies to provide clear and transparent audio with full-frequency response. The rugged ABS housing doesn’t give way for a long time. The system offers uninterrupted PLL UHF performance with 120 dB dynamic range and line-of-sight operation up to 500'.
The included HM-10 Headmic Microphone with 3.5mm locking plug connector is optimally designed for singing and speech applications. The HM-10’s small form factor and light weight make it ideal for all hands-free use with minimum visibility. It is suitable for singers/musicians (drummers, keyboardists), vocal/dance performers, DJ’s, television announcers, public speakers, and aerobics instructors.
U-2100 Wireless Receiver:
- Uninterrupted PLL UHF performance with 120 dB dynamic range and line-of-sight operation up to 500'
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user-selectable preset channel, with selected channel stored in memory for subsequent use
- ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear-panel removable swivel-BNC antennas
- Front-panel touch-control buttons for ease of channel selection and ASC operation

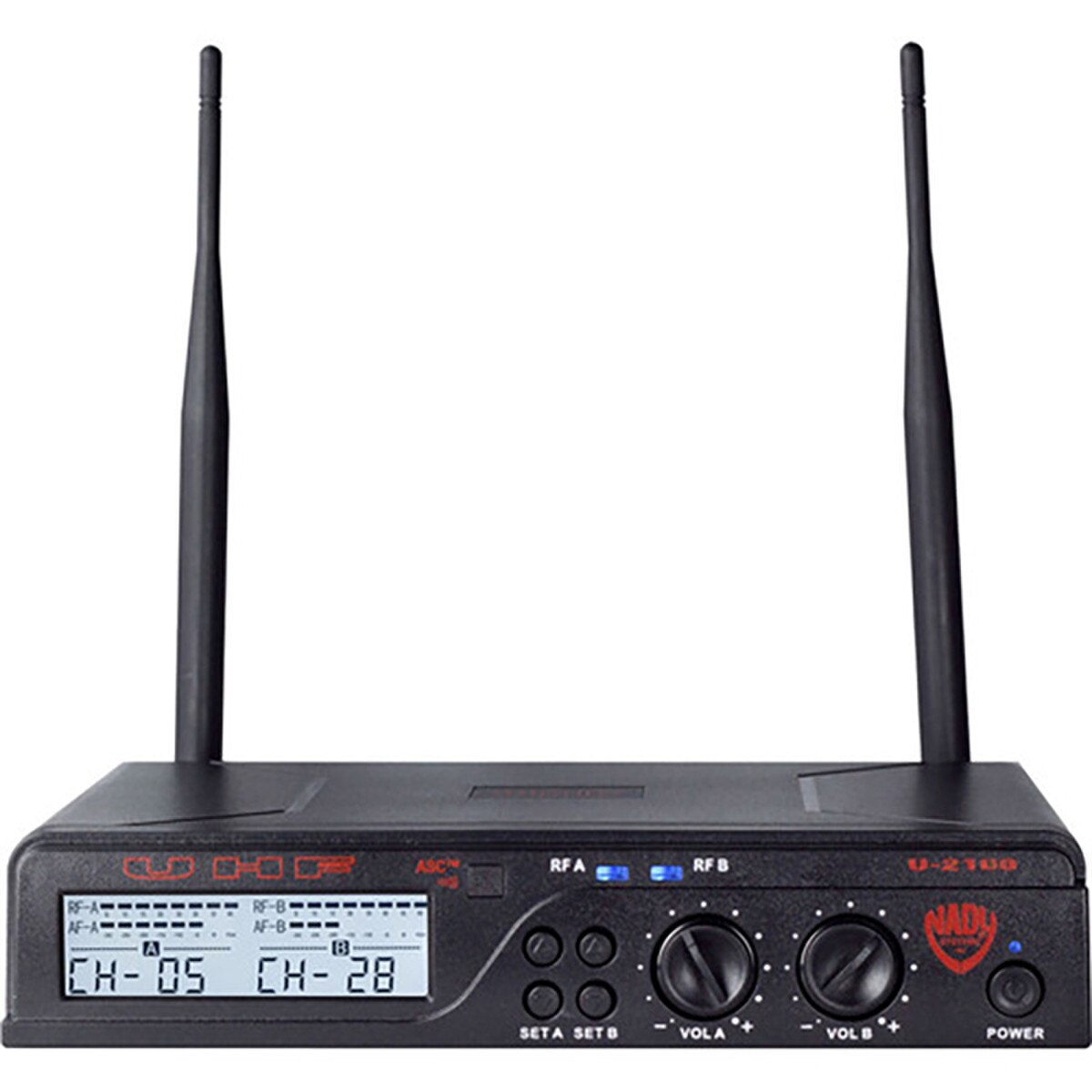

- Full front-panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

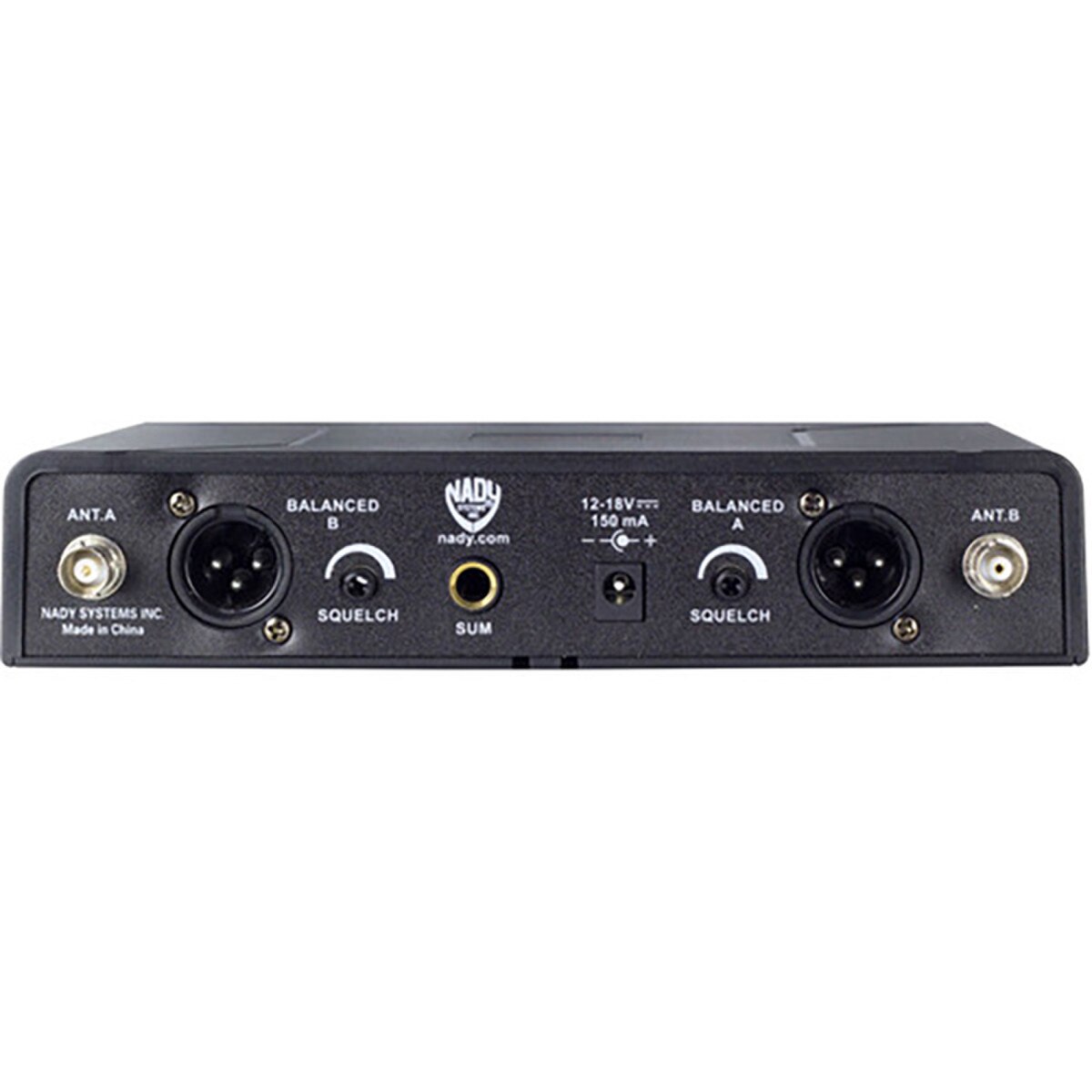

- Back-panel, balanced-XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
- Externally powered with included universal voltages 110V-220 VAC / 13.5 VDC 400 mA adapter
- Rugged all-ABS plastic housing for long-term durability
- Includes two U-1100HT handheld microphones with neodymium dynamic cartridge for optimal true sound, maximum feedback rejection, and minimal handling noise
U-1100 HT Handheld Microphone Transmitter:
- Touch buttons for On/Off power and Mute allow convenient audio muting with the transmitter on
- LCD display (with backlighting) including Channel and Frequency Selected, Battery-Level status
- Manual selectable channel with Up/Down recessed buttons or ASC sync with RX selected Channel and Frequency
- Convenient, economical operation with two AA alkaline or NiMH batteries
- Features a unidirectional neodymium dynamic cartridge for optimal true sound, maximum feedback rejection and minimal handling noise
- Sleek housing with internal antenna for durable long life and optimum aesthetics
System Performance:
- Operating Frequency Range: (A) 480-504.75 MHz and (B) 505-529.75 MHz
- Frequency Synthesizer: PLL (100 channels selectable) 250 kHz/step
- System Frequency Selection: <0.005% stability
- Frequency Response: 50 Hz - 18 kHz +/-3 dB
- Dynamic Range: 120 dB
- Harmonic Distortion: <0.5%
- Modulation: FM (F3E) +/-25 kHz normal, +/-75 kHz max
- Operating Range: 150-250' (45.7-76.2 m) typical, 500' (152.4 m) max line-of-sight
Receiver:
- Receiver Type: Dual-conversion Super Heterodyne
- Selectivity: 60 dB, normal +/-75 kHz offset
- Image Rejection: -70 dB, minimum Sensitivity, -107 dBm, normal Spurious rejection 65 dB, normal
- Mute Threshold: Adjustable (-65 to -95 dBm)
- Controls: GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot
- Display: Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators
- Audio Outputs: Line Out Unbalanced, adjustable line-audio output; Mic Out Balanced, fixed-mic level audio output
- Output Impedance: Unbalanced, 1 kOhm and Balanced; for 600-Ohm loads
- Power Requirements: 13.5 VDC/0.4 A
- Antennas: Dual-removable swivel-BNC antenna
- Housing Material: ABS Plastic
- Dimensions: 8 x 6 x 1.25" (20.4 x 15.3 x 3.2 cm)
- Weight: 15.1 oz (469.7 g)
Handheld Transmitter:
- RF Output Power: +14 dBm (25 mW typical)/50 Ohms
- Harmonic & Spurious Emissions: -50 dBc normal
- Input Impedance: 10 kOhms
- Controls: Power OFF/ON, MUTE
- LED Display: Channel/Frequency, Battery status, Mute LED
- Antenna Type: Integral
- Battery Type: 2 x AA alkaline or NiMH
- Battery Life: 8-10 hours typical, alkaline
- Housing Material: ABS Plastic
- Dimensions: 9.5 x 1.5" (24.1 x 5.1 cm)
- Weight: 10.4 oz (323.5 g) without batteries
Microphone:
- Element: Black electret condenser
- Output Connector: 3-pin mini XLR connector
- Polar Pattern: Omnidirectional
- Frequency: 20 Hz to 20 kHz
- Sensitivity: -42 ±3 dB
- Output Impedance: 1 kOhm ±5%
- SPL: Maximum: 130 dB
- Power Supply: 1.5 to 10 VDC
- Cable: 0.05" (1.5 mm)
- Wiring: GND= Pin 1, hot (+), pin 3, 2 kOhms, pin 2
- Microphone Dimensions: 0.197" (0.48 mm)
- Weight: 1.65 oz (46.77 g)
