Nady 4-Channel VHF Wireless System with HM-35 Headset - BLACK - Ch. E4/F/H/E
Details
NOTE: Please see chart below for frequency options.
The Nady 401X Quad 4-Channel VHF Wireless System is a professional multi-transmitter system giving simultaneous operation of up to four wireless microphones or instruments.The 401X Quad receiver features 4 discrete audio channels with level control and an XLR output per channel. The 401 X Quad receiver comes in a rugged, all-metal single-rack space housing with folding front-panel dual antennas delivering clear channel UHF operation for optimum interference-free performance. It is a perfect wireless solution for use with drama performances school functions and musical performances when both budget and performance are a priority.
System Performance:
- Frequency Response: 30-18KHz (-3dB)
- Dynamic Range: 120dB (20-20KHz)
- Total Harmonic Distortion: <0.5% (typical)
- RF Carrier Frequency Range: 170-230MHz (Factory installed Channels)
- Frequency Stability: +/- 0.005%, crystal controlled
- Modulation: FM (F3E), +/-15KHz nor,+/-30KHz max
- Operating Range: 250 feet typcial — up to 500+ feet optimum line-of-sight

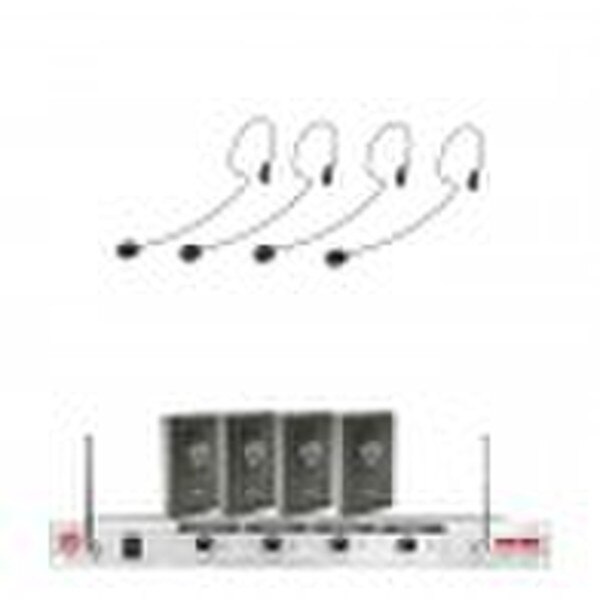

Includes:
- 401X Quad VHF wireless receiver system
- (4) WLT bodypack transmitter
- (4) HM-35 over ear omni-directional HeadMic headset (choice of black or beige)
| Receiver System | Frequency Option | Frequency (MHz) |
| 401X QUAD | Ch. A/B/D/N | 171.905 / 185.150 MHz / 209.150 / 197.150 MHz |
| Ch. E4/F/H/E | 173.800 MHz / 203.400 MHz / 191.300 MHz / 215.200 MHz |
