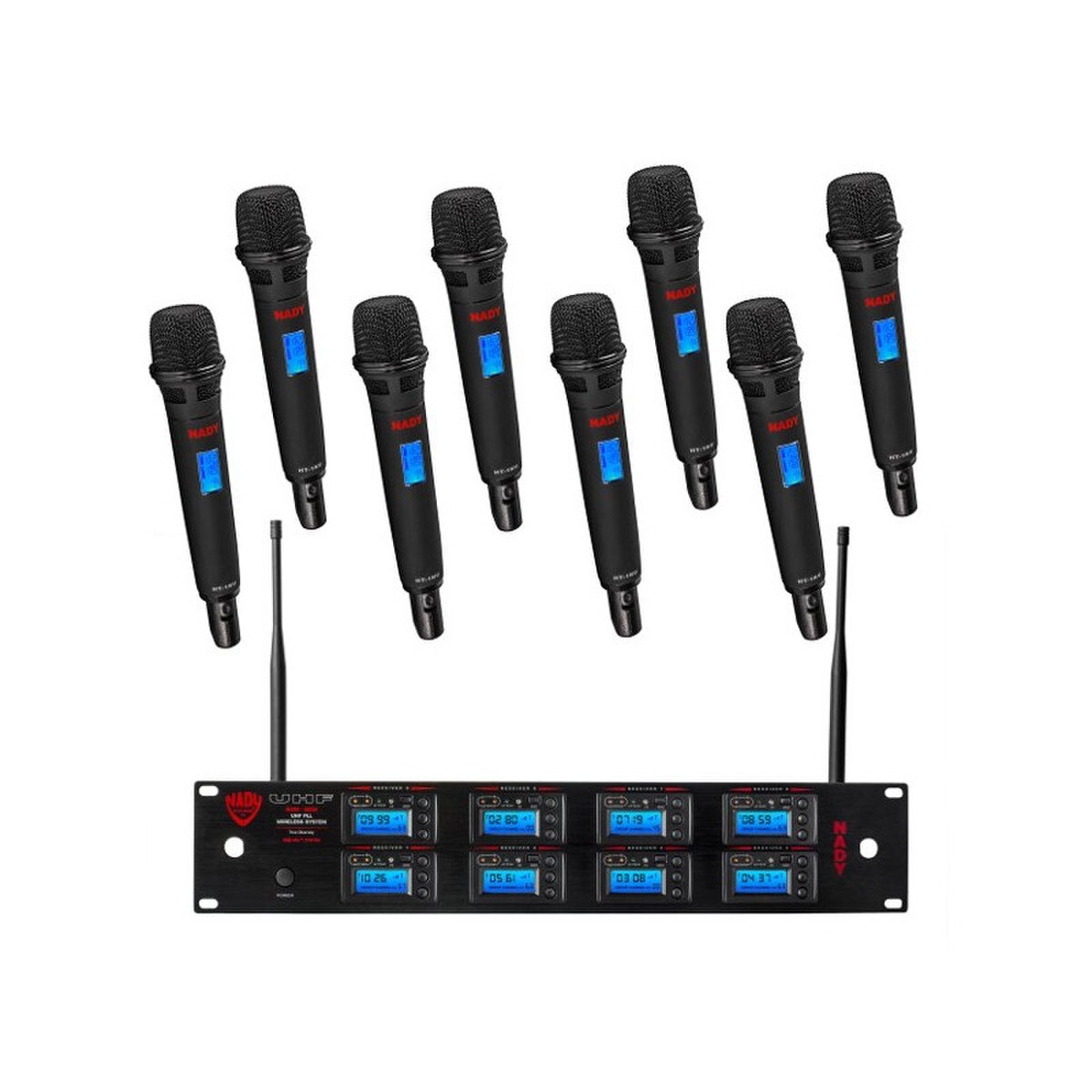

Nady Octo Handheld Microphone UHF Wireless Receiver System

Nady’s flagship wireless system the W-1KU, combines many stand out features that set this system apart in the wireless industry. Features include; Automatic Scanning of 1,000 UHF channels, so finding interference-free frequencies takes only seconds, and the transmitter synchronization happens in a flash – literally; True Diversity, a dual antenna design that maximizes range and eliminates dropouts; an All-Metal Housing is included for all receivers and transmitters made to withstand the rigors of live performances; and backlit LCD displays are included on the W-1KU receiver to indicate selected audio output volume level, group/channel, RF signal strength meter, and A/B diversity status while all transmitters also have LCD display indicating selected group, channel, volume (input audio level), and battery level status. The W-1KU delivers the clearest, most natural sound available and unlike many other professional systems, is available in Single, Dual (2W-1KU), Quad (4W-1KU), and 8 Channel Systems(8W-1KU).

• Eight independent wireless receivers in one enclosure for simultaneous operation of eight transmitters. Unsurpassed performance with 120dB dynamic range. True Diversity circuitry for worry-free operation and dropout protection. Up to 500’ range.
• 1000 selectable UHF frequencies per transmitter for interference-free reception with AUTO-SCAN feature for easy location of clear channels and ASC™ (Auto-Sync Channel) infrared download for easy frequency synchronization.
• Rack-mountable receiver with 8 balanced XLR microphone level and 1 unbalanced ¼” mixed line level audio outputs. Backlit LCD with user-friendly configuration menus indicating frequency, volume, and RF signal strength.
• All-metal body handheld microphones with the Nady DM-10 neodymium cartridge for clear audio and maximum feedback rejection. LCD display indicates group, channel, audio level, and battery level status. Operation with two AA batteries.

Box contents:

• 8W-1KU quad receiver
• 8 x HT-1KU wireless handheld microphones
• AC adaptor
• Two removable BNC antennas
• Two extender cables for front mounting the antennas (preferable when rack-mounted)
• User guide
• Frequency chart
