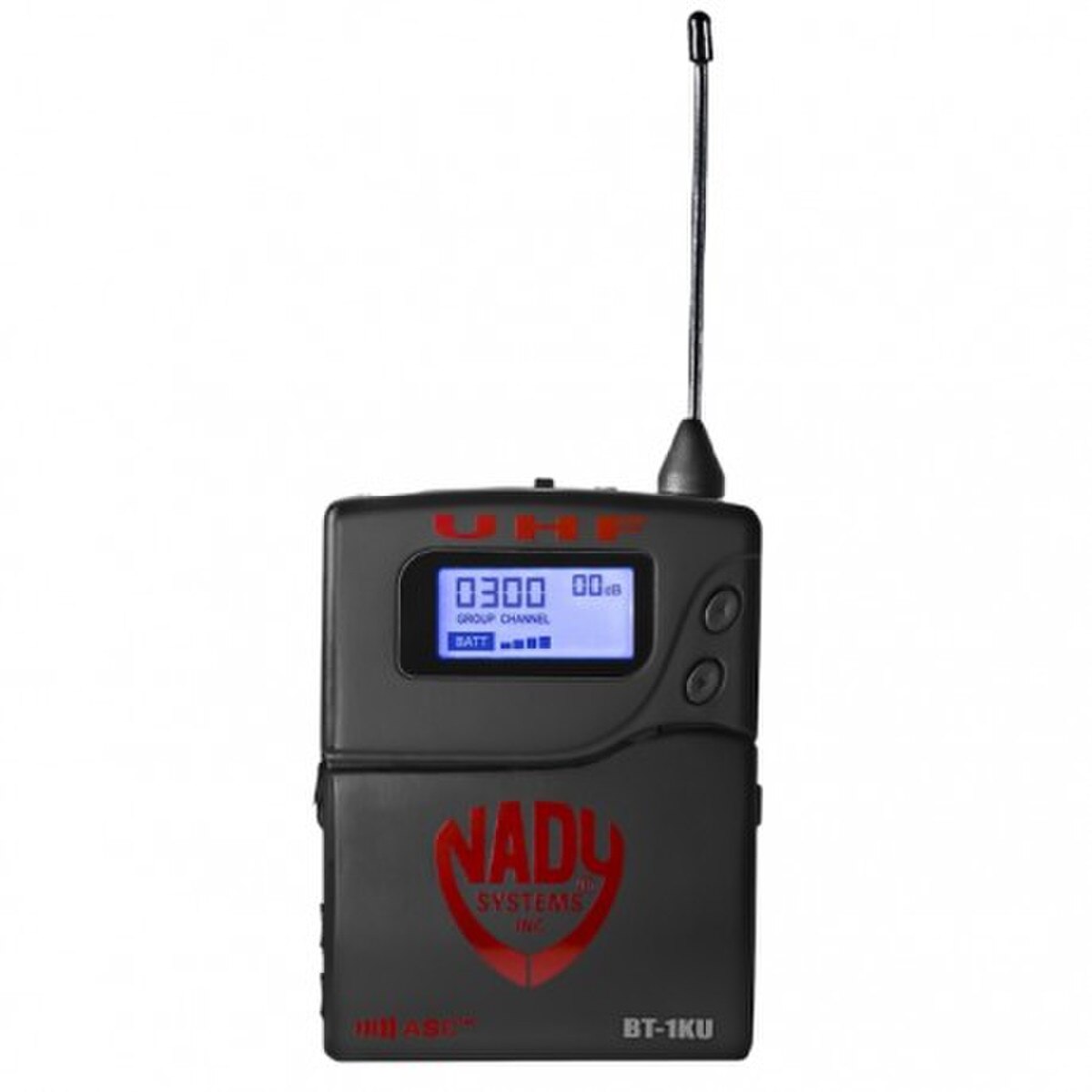

Nady Bodypack Transmitter for W-1KU Systems

BT-1KU GT/LT bodypack transmitter only. For W-1KU receiver systems.

Features:

• 1000 easily selectable channels: manually with up/down buttons on units or via IR Sync download of selected channel for easy synchronization with receiver
• BT-1KU bodypack transmitter features road worthy all-metal case; power Off/Mute/On switch; flexible external antenna rod; and mini locking connector for lapel (LT), Headmic™ (LT/HM), or instrument (GT) applications
• Feature LCD displays indicating selected Group, Channel, Audio Input Levels, and Battery level status; transmitting High/Low RF power switch for optimizing distance operation depending on application; and operation with two AA batteries (alkaline or rechargeable NiMH) for longest reliable, economical battery life

Specifications:

• RF Output Power: Hi/Lo selectable
• HI: +14dBm (25mW typical), LOW: +4dBm (2.5mW typical)
• Harmonic and Spurious Emission: -50dBc normal
• Audio Input Levels: 75mV (Lapel/Lavaliere—LT ) / 310mV (Headmic™—LT/HM) /
• 225mV (Instrument—GT) for +/- 25KHz deviation)
• Input: Impedance 500 kΩ (Instr.)
• Controls: Power OFF/MUTE/ON, RF Power HI/LOW switches, Set/Up/Down
• Input Connector: Mini 3.5mm with locking nut
• LCD Display: Group/Channels/Volume/Battery Levels
• Antenna Type: External fixed
• Battery Type: 2 x AA alkaline batteries operation
• Battery Life: 8-10 Hours typical
• Dimensions: 2.5"W x 3.25"H x 1-13/16"D (6.35cm x 8.3cm x 1.82cm)
• Weight: (w/o batteries) 3.8 oz (0.108 kg)
• Housing Construction: Metal
