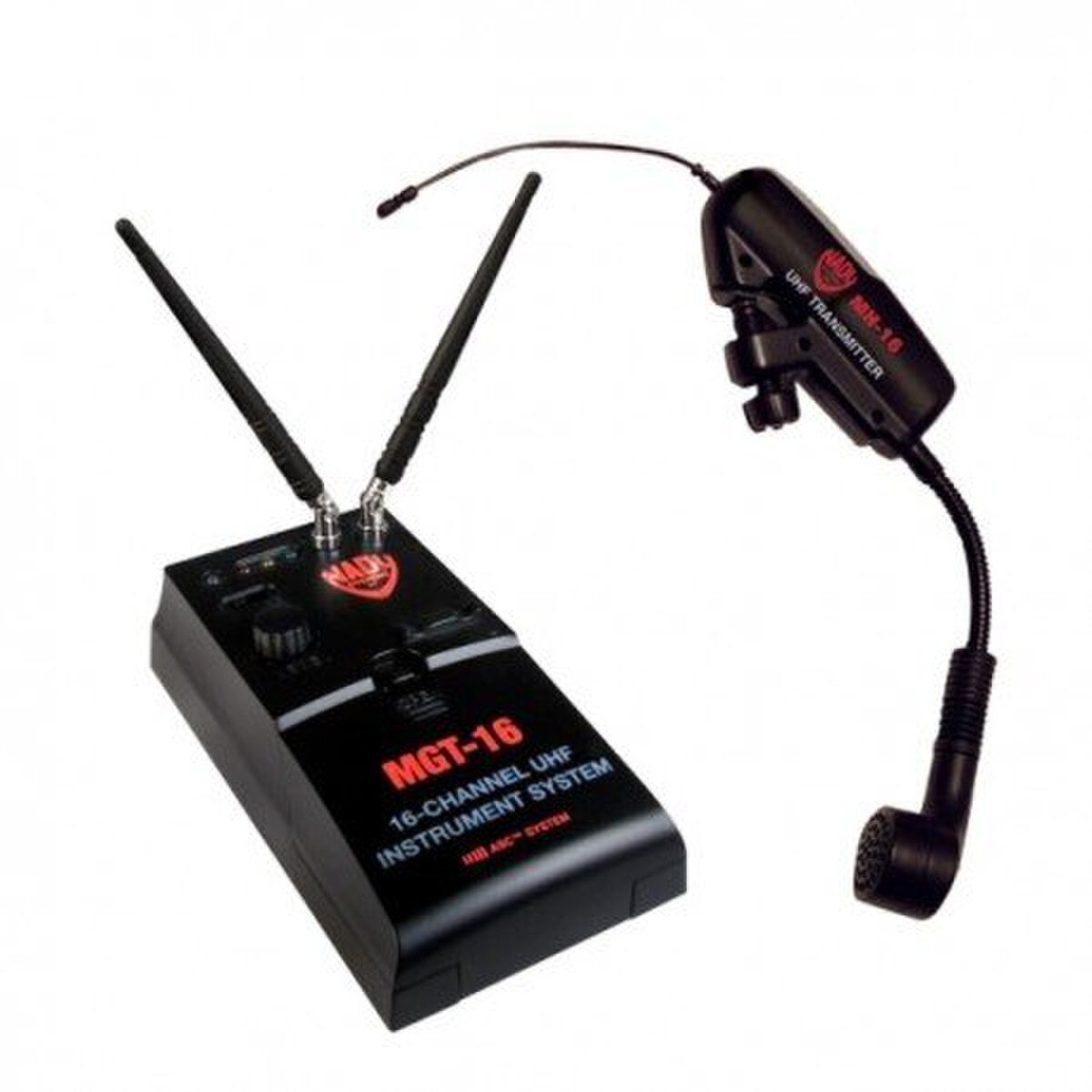

Nady MGT-16 Ultra-Compact UHF Receiver
Details
MGT-16 R receiver only. For MGT-16 wireless receiver systems.
Features:
- Compact, portable, “pedal style” receiver
- Dual ¼ wave antennas
- Infrared sync with transmitter for instant setup
- Unbalanced ¼” line out jack
- Power On/Off/Mute switch;
- Volume Control; LED indicators for Power On, Low Battery, and RF Reception; DIP-switch channel selection with IR sync to transmitter
- Powered by DC adapter (included) or two AA alkaline batteries for portability (up to 8 hours battery life)
Specifications:
- Controls: Audio Level, Power ON/MUTE/OFF, Frequency Select DIP-switches, IR sync button
- Connectors: Unbalanced ¼”, DC Adapter input jack
- LED Indicators: Power ON (Red-continuous), Low Power (Orange-continuous), RX reception (Green)
- Antennas: Dual ¼ wave, adjustable orientation
- Signal-to-Noise Ratio: >105dB (w/AC/DC power supply)
- Receiver Sensitivity: -110dBm nominal, 12dB SINAD
- Squelch Sensitivity: -95dBm (minimum/normal setting), adjustable
- Output Impedance: 1.0KΩ
- Power Consumption: DC: 3V/ 115mA or AC/DC adapter: 10VDC/200mA
- Battery: Two AA alkaline or NiMH
- Battery Life: Up to 8 hours
- Dimensions: 2.75” W x 5.00” D x 1.88” H (7.0 cm x 12.7 cm x 4.78 cm)
- Weight (w/o batteries): 5.7 oz (161.6 g)
- Housing Construction: ABS Plastic
