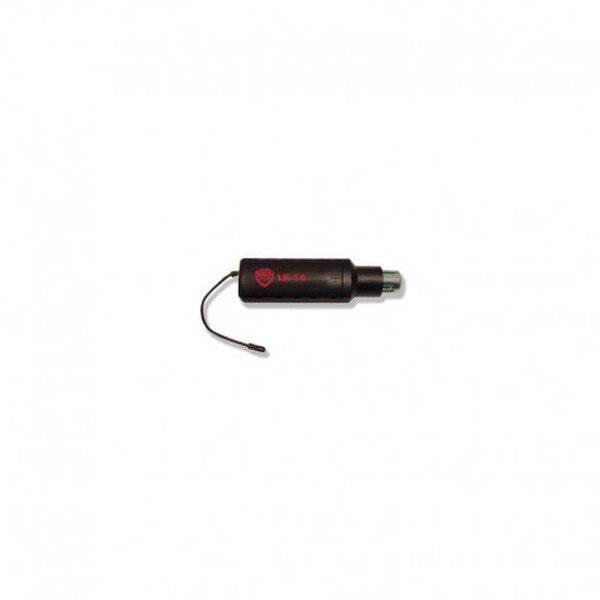

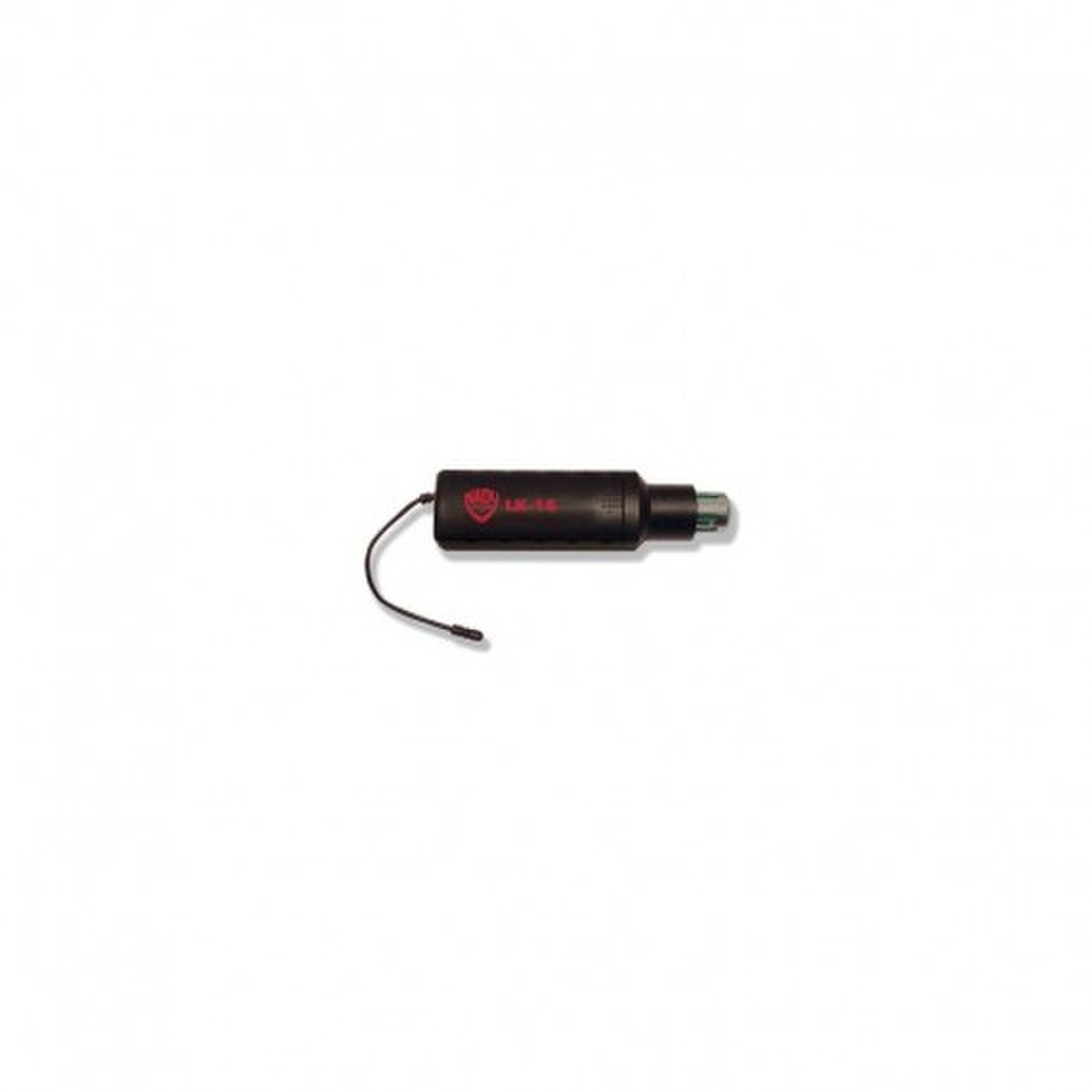

Nady Miniature XLR Plug-In Transmitter

(0)No Reviews yet
$99.20
SKU: Nady Wireless LINK-16 TX

If you add this item, you're only $50 away from free shipping! (Motor Freight Excluded)

Details

LINK-16 TX miniature transmitter only. For microMGT-16 wireless system.

Features:

  • Female XLR input connector for mounting transmitter on any hardwired dynamic microphone
  • Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable battery
  • Infrared channel sync with receiver for instant setup
  • Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED
  • External flexible wire antenna

Specifications:

  • RF Power Out: 25mW nominal, 50mW maximum
  • Harmonic & spurious emissions: -50dB
  • Controls: Power ON/OFF
  • LED Indicators: Power ON (Red-single flash), Low Battery (Red flashing)
  • Input Impedance: 5KΩ
  • Power Consumption: DC 1.5V/90mA
  • Battery: One AAA alkaline or NiMH
  • Battery Life: Up to 8 hours
  • Antenna: ¼ wave, permanently attached
  • Dimensions: 4.25” W x 1.2” D x 1.0” H (10.8 cm x 3.05 cm x 2.54 cm)
  • Weight: (w/o batteries) 1.5 oz (42.5 g)
  • Housing Construction: ABS Plastic
