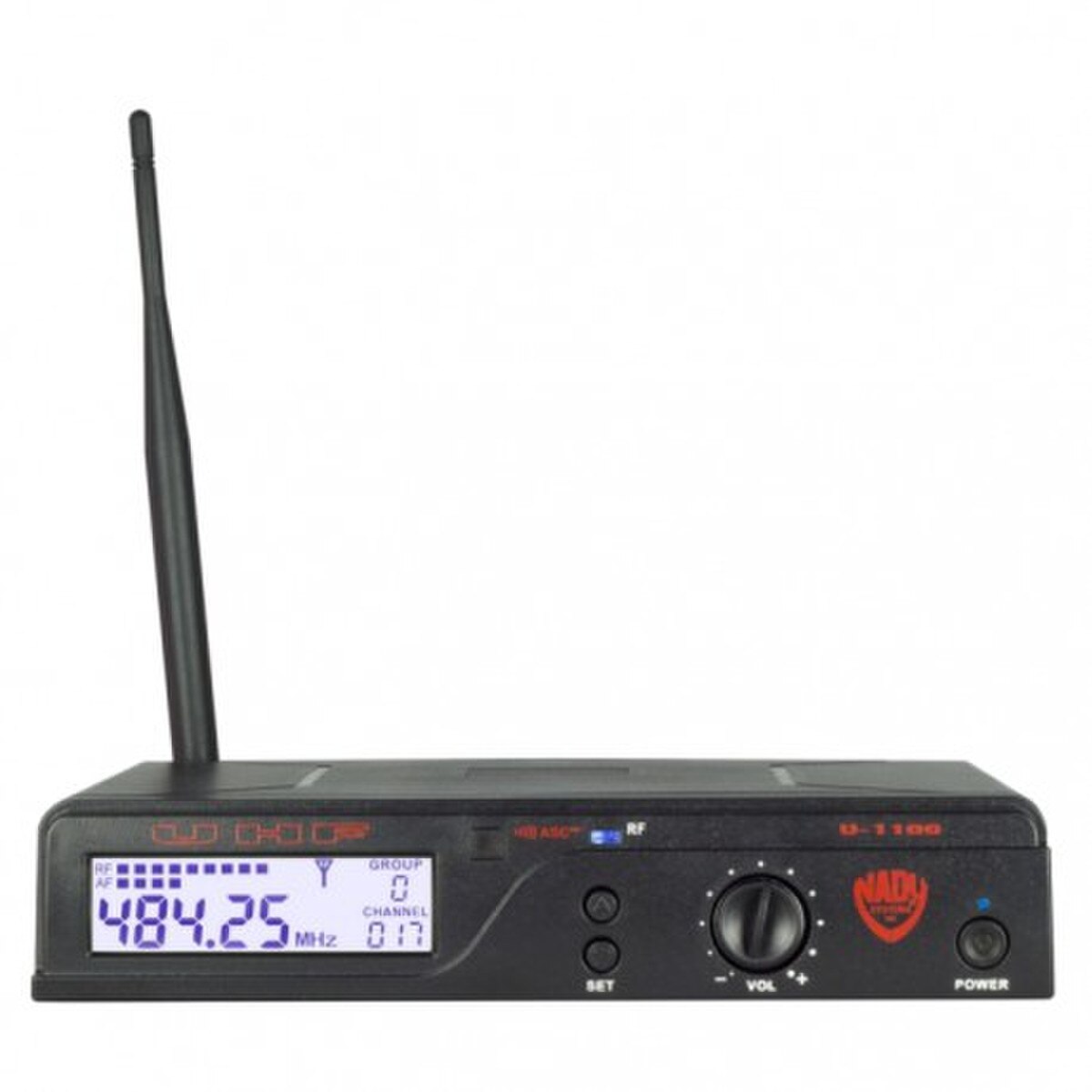

Nady U-1100 100-Channel Wireless Receiver
Details
U-1100 receiver only. For U-1100 wireless receiver systems.
Features:
- Unsurpassed state-of-the-art PLL UHF performance with 120dB dynamic range and operation, up to 500 ft. (line-of-sight)
- 100 UHF frequencies per band
- Frequency Auto-Scan for quickly, conveniently finding a clear channel or user selectable preset channel, with selected channel stored in memory for subsequent use
- Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location
- Rear panel removable swivel BNC antennas
- Front panel touch control buttons for ease of channel selection and ASC™ operation
- Full front panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph,
- Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls
- Back panel, balanced XLR fixed Mic Level and adjustable unbalanced ¼” jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks.
- Externally powered with included universal voltages 110V-220V AC / 13.5 VDC 400 mA adapter
- Rugged all ABS plastic housing for long-term durability
- Optional RMT-1KUD available for rackmounting single or dual U-1100 receivers
Specifications:
- Receiver System: Dual conversion Super Heterodyne
- Selectivity: 60dB, normal +/-75 kHz offset
- Image rejection: -70dB, minimum Sensitivity, -107dBm, normal Spurious rejection 65dB, normal
- Mute Threshold: Adjustable (-65dBm to -95dBm)
- Controls: GROUP/CHANNEL/AUTOSCAN, IR ASC Sync buttons, Power ON/OFF, Switch, MUTE level pot, VOLUME level pot
- LCD/LED Display: Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators
- Audio Outputs: LINE OUT UNBALANCED, adjustable line audio output; MIC OUT BALANCED, fixed mic level audio output
- Output Impedance: Unbalanced, 1k Ω and Balanced; for 600 Ω loads
- Power requirement: 13.5VDC/0.4A
- Antennas: Dual removable swivel BNCantenna
- Dimensions: 8”W x 6”D x 1.25”H (20.4cm x 15.3cm x 3.2cm)
- Weight: 17.9oz (556.8g)
- Housing Construction: ABS Plastic
