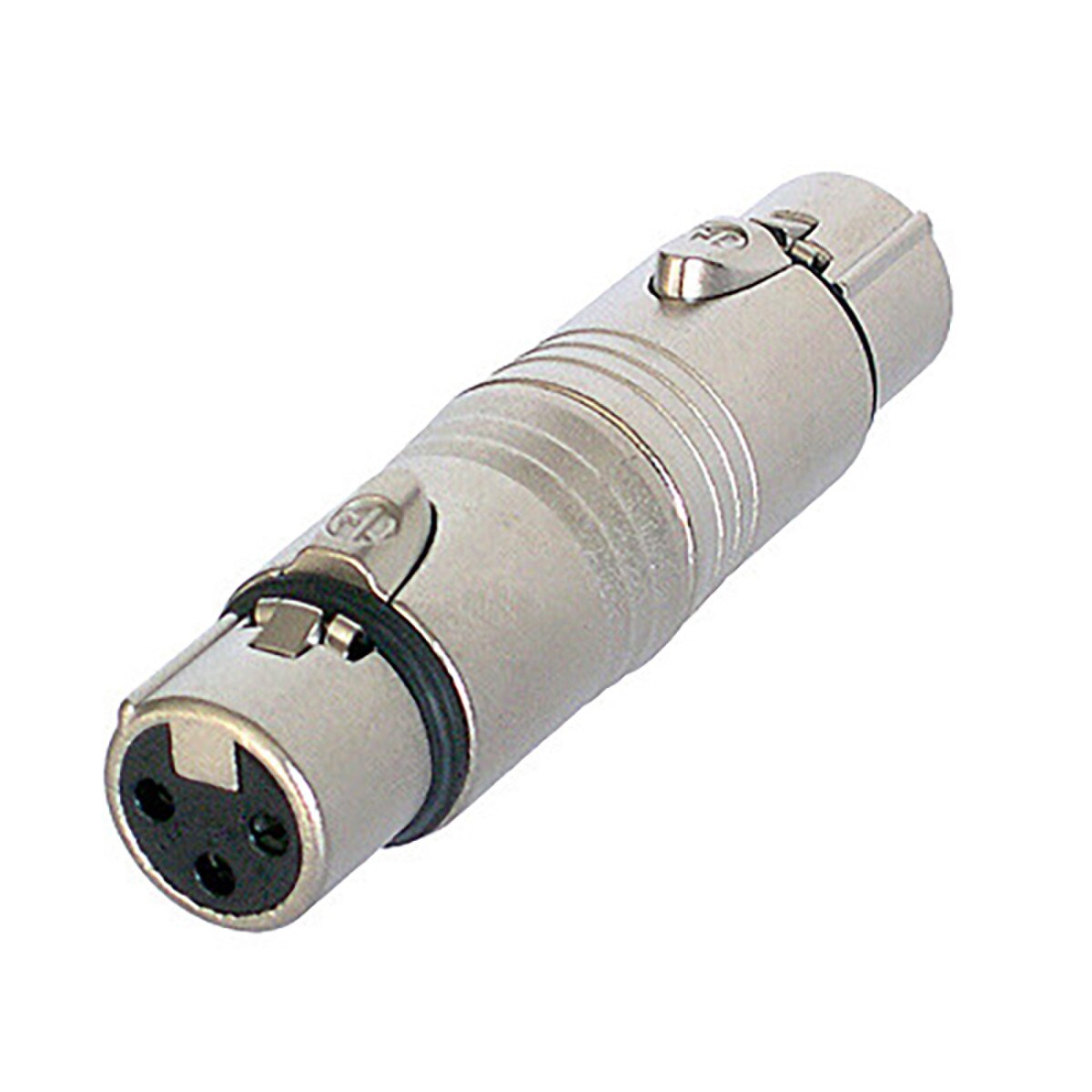

Neutrik Adapter - 3 Pole XLR Female to 3 Pole XLR Female

3 pole XLR female - 3 pole XLR female

• Gender conversion adapter

Features & Benefits:

• Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability

Technical Information

Product:

• Title: NA3FF
• Connection Type: Adapter

Electrical:

• Contact resistance ≤ 3 mΩ
• Dielectric strength 1,5 kVdc
• Insulation resistance > 2 GΩ

Mechanical:

• Locking device: Latch lock

Material:

• Contact plating: 2 µm Ag
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: gal Cu/Ni

Environmental:

• Temperature range -20 °C to +65 °C

Neutrik NA3FF Product Guide.pdf
Neutrik NA3FF Dimensional Drawing.pdf
