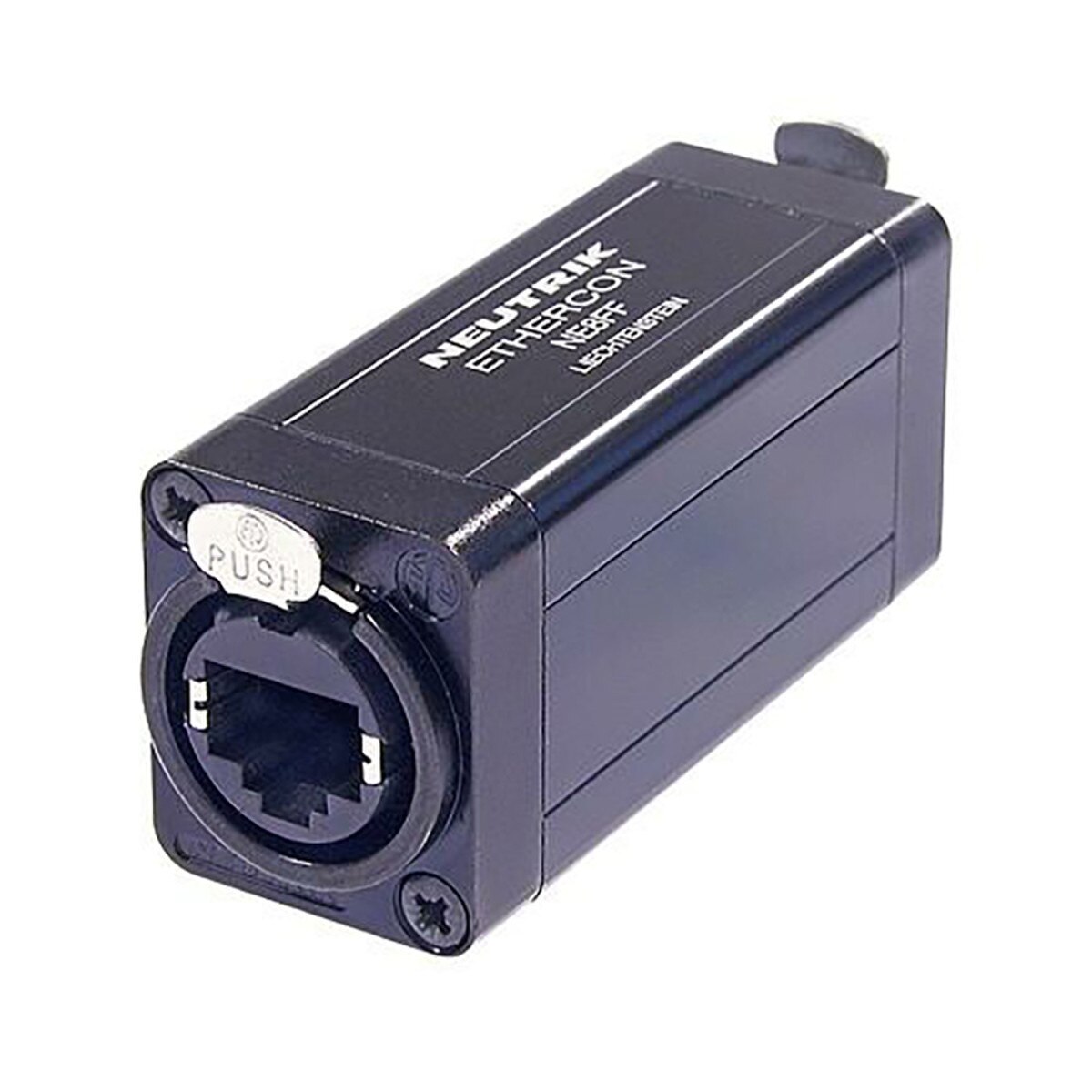

Neutrik Adapter EtherCON CAT5 Cable to Cable

etherCON RJ45 feedthrough coupler for cable extensions

Features & Benefits:

• Accommodates NE8MC* or any standard RJ45 plug
• The adapter offers the approved latch lock system
• The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications

Technical Information

Product:

• Title: NE8FF
• Connection Type: Adapter
• Gender: Female

Electrical:

• Contact resistance: < 10 mΩ
• Dielectric strength: 1 kVdc
• Frequency range: 1 - 100 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1,5 A
• Rated voltage: < 50 V
• Standard compliance: TIA/EIA 586B, IEC11801

Mechanical:

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Locking device: Latch lock

Material:

• Contact plating: 0.2 µm Au over Ni plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: AlMgSi 0.5, black plated
• Strain relief: CuZn35Pb2, Tin plated

Environmental:

• Flammability: UL 94 HB
• Temperature range: -30 °C to +80 °C
