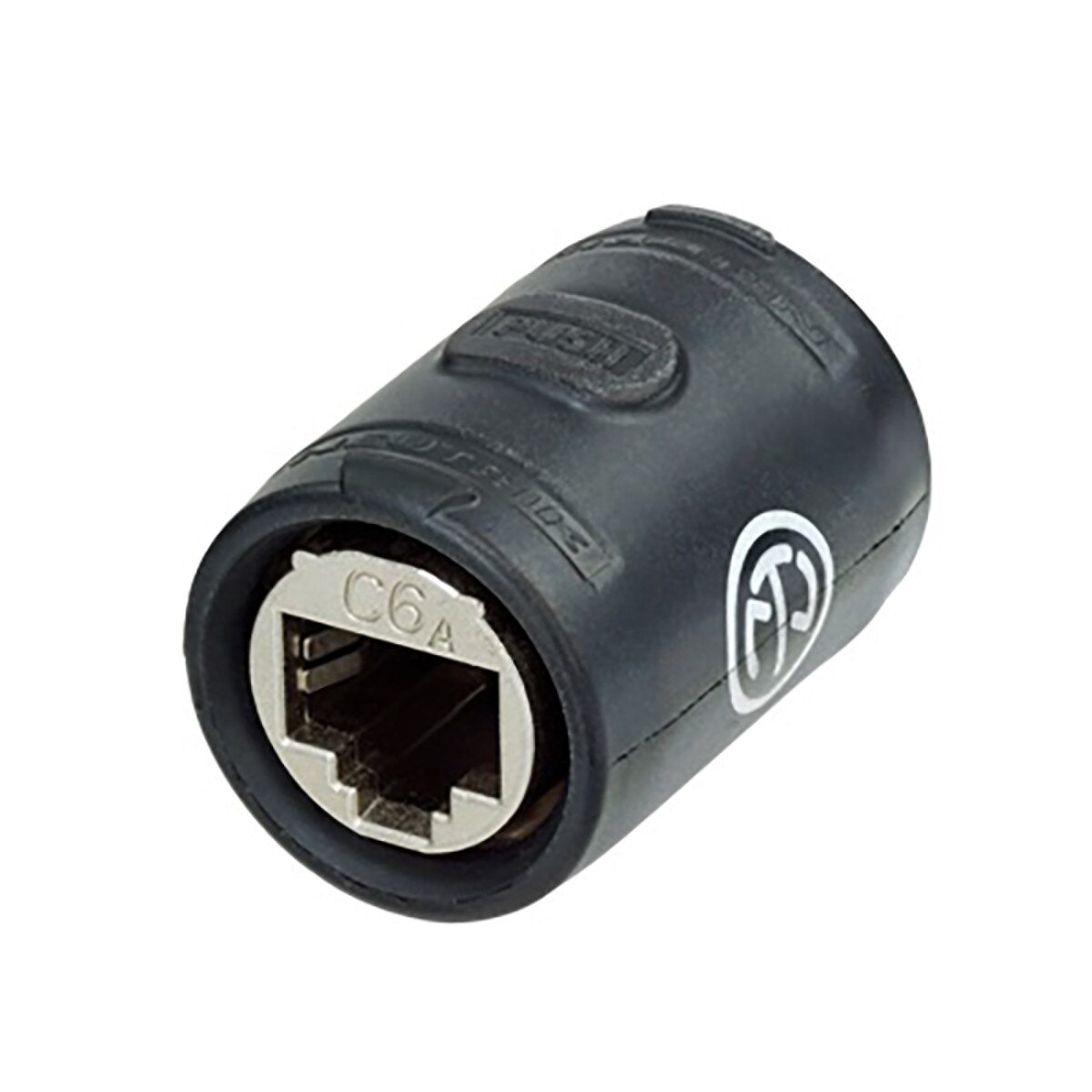

Neutrik Adapter EtherCON CAT6A Cable to Cable

etherCON CAT6A feedthrough coupler for cable extensions.

Features & Benefits:

• Ruggedized coupler with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• IP65 protected when mated with NE8MX6*
• Accommodates standard RJ45 plug
• Revolutionary small form factor
• The adapter offers the million-fold proven robust latch lock system
• The adapters are problem solvers for various intermating problems for professional and semi-professional applications

Technical Information

Product:

• Title: NE8FFX6-W
• Connection Type: Adapter
• Gender: Female

Electrical:

• Contact resistance: < 200 mΩ
• Dielectric strength: > 1.5 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Transmission performance: CAT6A, acc. TIA/EIA rating, Class EA, acc. IEC/ISO/EN rating
• Power over Ethernet: PoE+ acc. IEEE 802.3at

Mechanical:

• Insertion force: ≤ 50 N
• Withdrawal force: ≤ 50 N
• Lifetime: > 1000 mating cycles
• Wiring: Feedthrough
• Locking device: Latch lock

Material:

• Contact plating: Au
• Shell: Rubber (EPDM)
• Strain relief: CuZn35Pb2, Tin plated
• Shell coating: Black KTL

Environmental:

• Temperature range: - 30 °C to + 80 °C
• Protection class: IP65 (in combination with NE8MX*)
