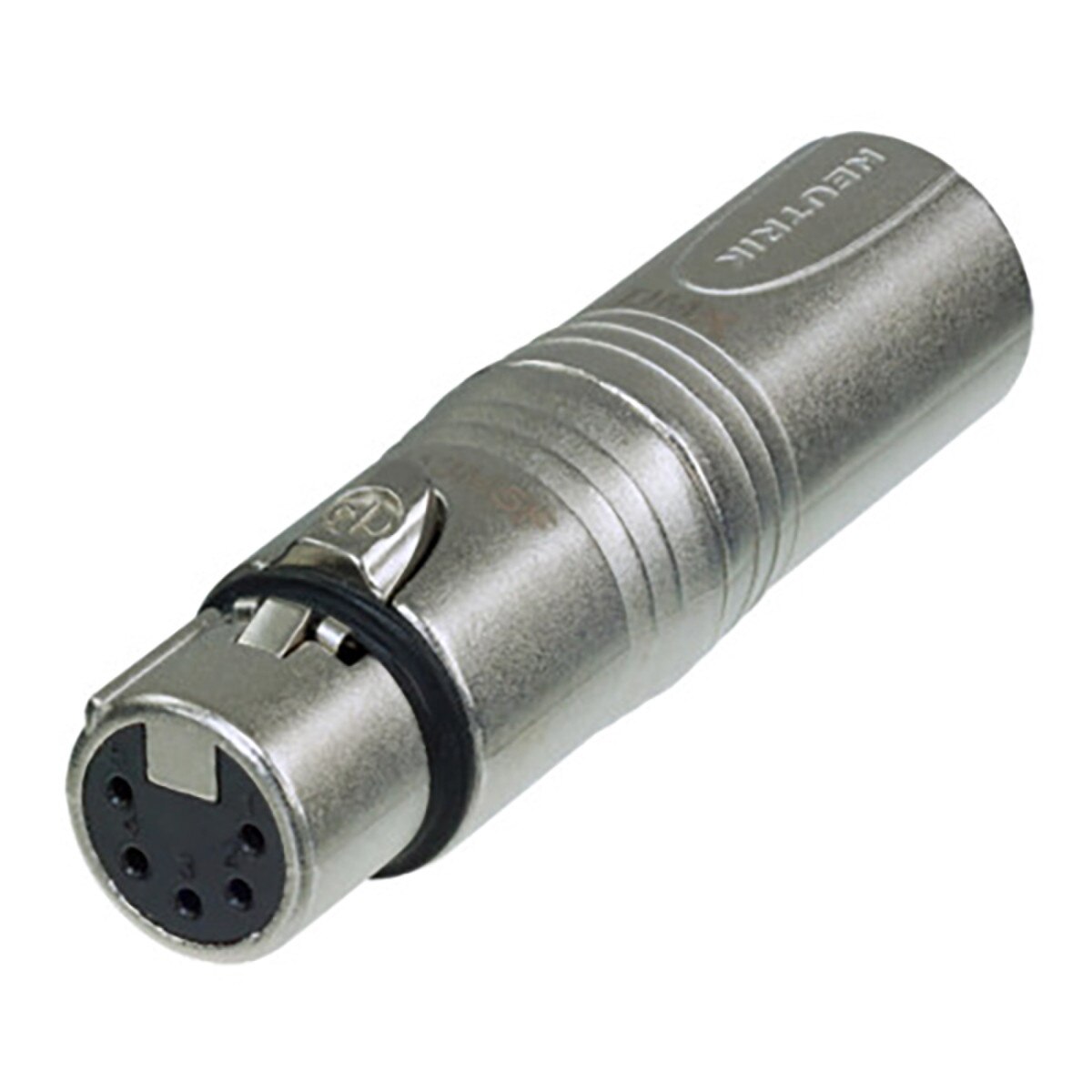

Neutrik Adapter Pin XLR Male to 5 Pin XLR Female

3 pole XLR male - 5 pole XLR female for lighting (DMX) applications

Features & Benefits:

• Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
• Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
• Professional look and compact space saving design, based on the XX Series
• Rugged diecast shell for best reliability

Technical Information

Product:

• Title: NA3M5F
• Connection Type: Adapter

Electrical:

• Contact resistance: < 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ
• Rated current per contact: 7,5 A

Mechanical:

• Insertion force: < 20 N
• Withdrawal force: < 20 N
• Lifetime: > 1000 mating cycles

Wiresize:

• Locking device: Latch lock

Material:

• Contact plating: 2 µm Ag
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental:

• Temperature range: -30 °C to +80 °C
