Neutrik Cable Connector Carrier X Series EtherCON CAT5 and CAT6A - Black (For Non Pre-Assembled Cables Only) - Black
Details

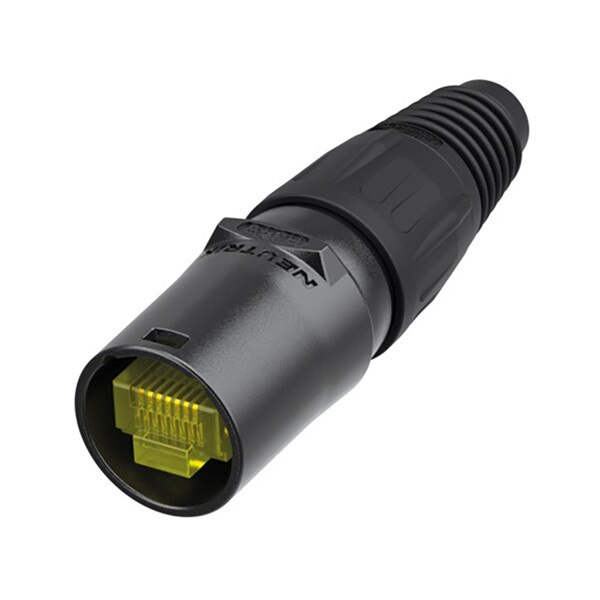

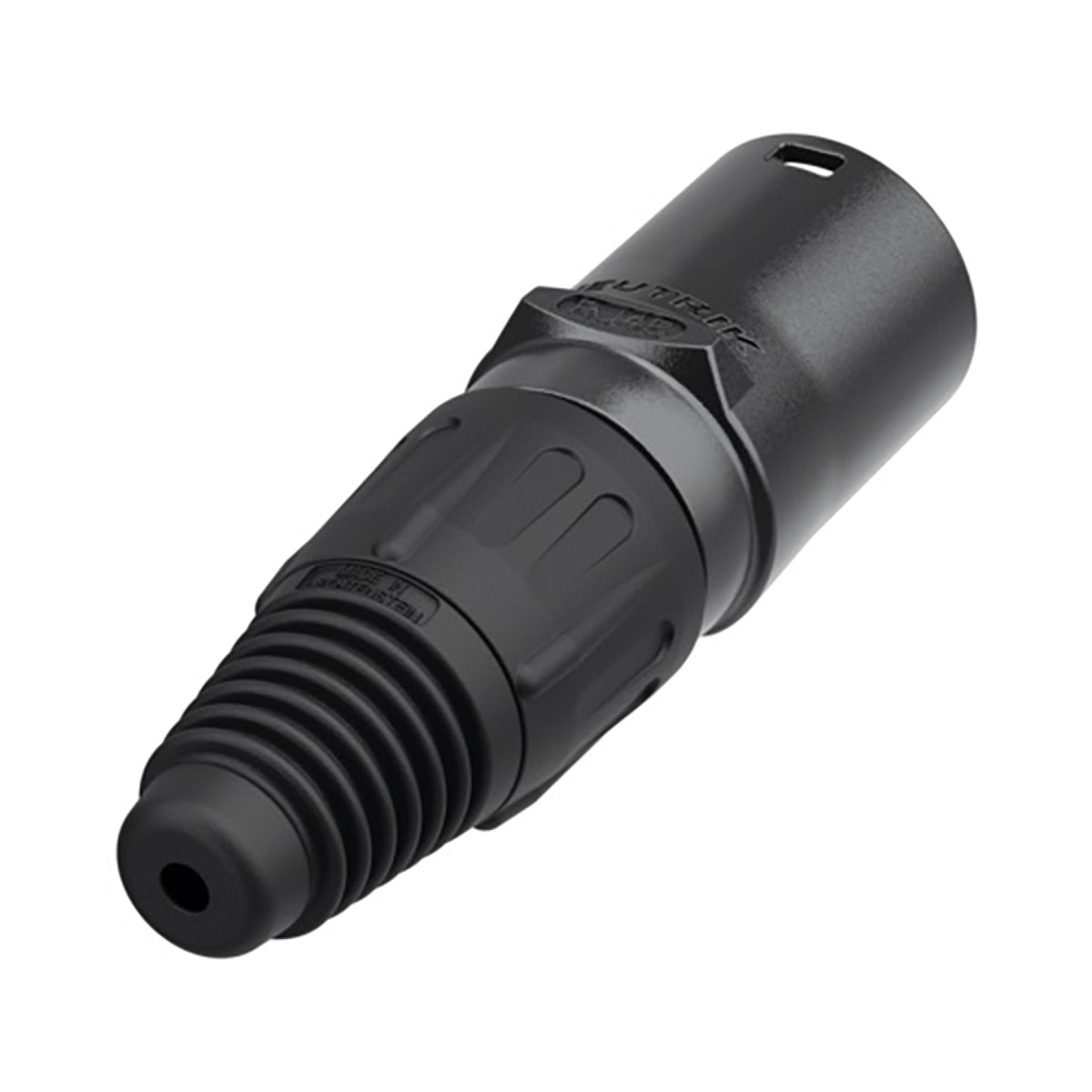

Cable connector carrier consists of a black chromium shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features & Benefits:
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Flat spot on the housing for better orientation.
- Accessories include color coded boots in 9 standard colors
- Allows assembly of non pre-assembled conventional RJ45 cables
Technical Information
Product:
- Title: NE8MX-B-1
- Gender: Male
- IMPORTANT: Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!
Mechanical:
- Cable O.D.: 3.5 - 8 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
Material:
- Boot: Polyamide (PA 6)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell coating: Black KTL
- Strain relief: Polyacetal (POM)
Environmental:
- Temperature range: -30 °C to +80 °C
Neutrik NE8MX-B-1 Assembly Instruction.pdf
Neutrik NE8MX-B-1 RJ45 Data Cable Carrier.pdf
Neutrik NE8MX-B-1 Dimensional Drawing.pdf
