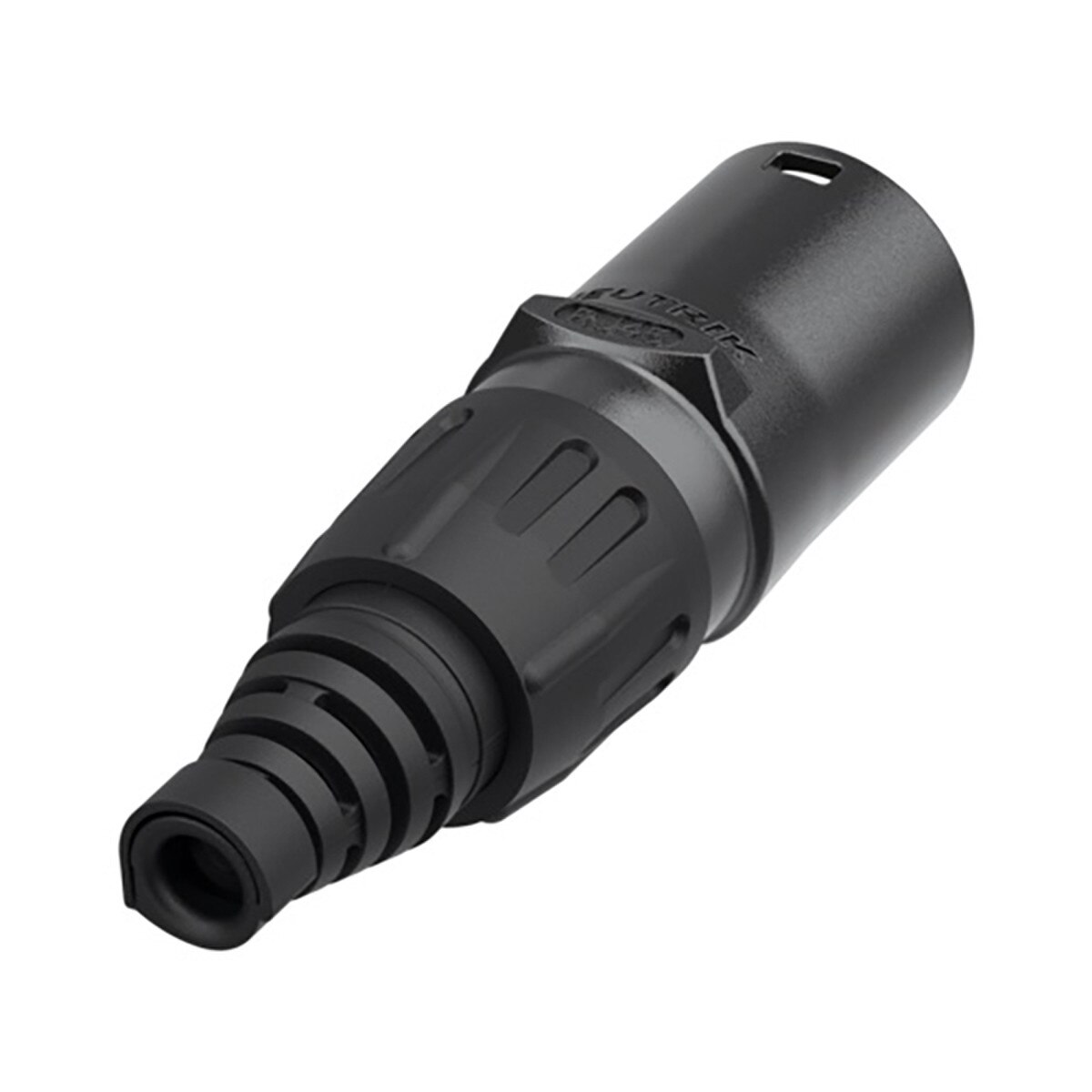

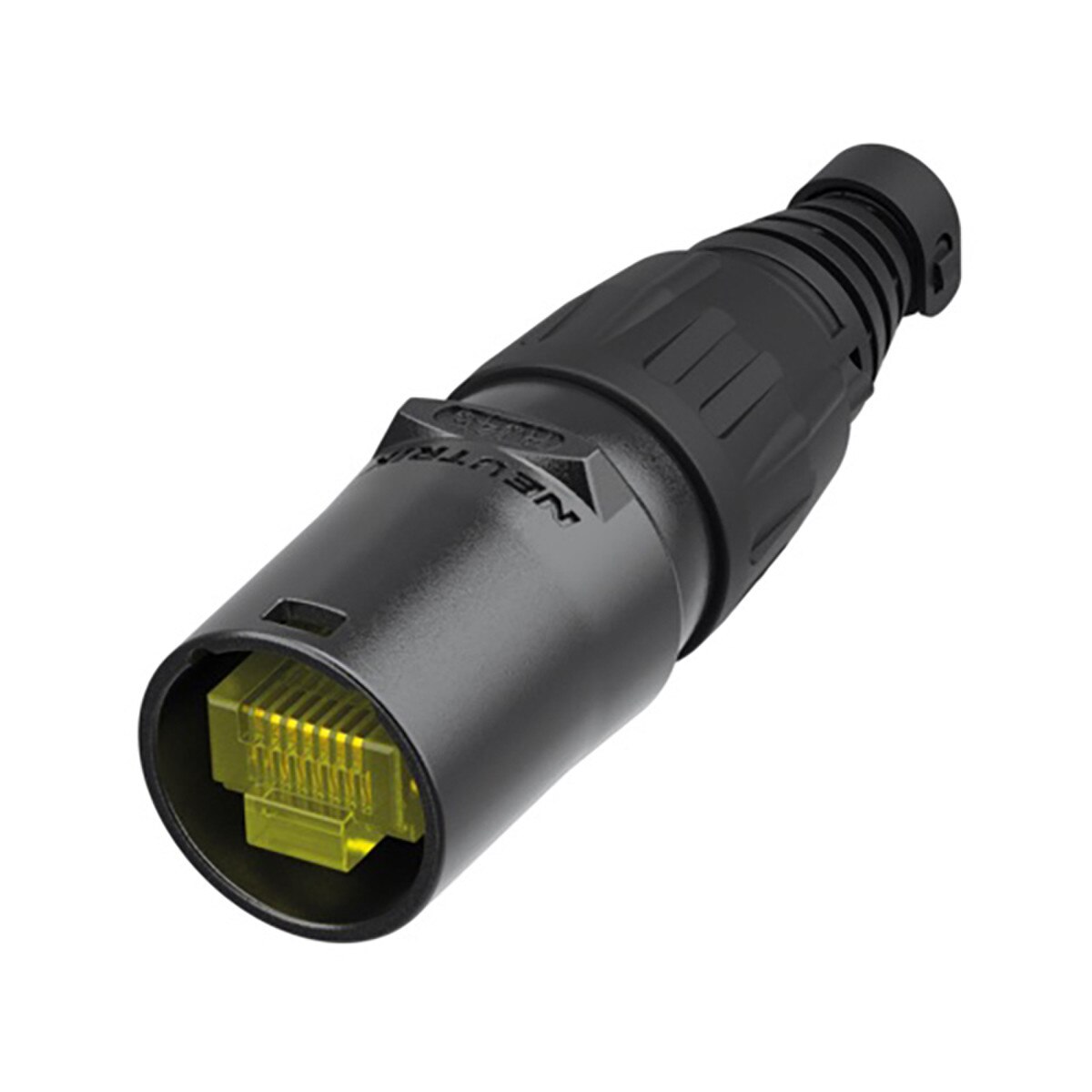

Neutrik Cable Connector Carrier X Series EtherCON CAT5 and CAT6A - Black (For Pre-Assembled RJ45 Plugs)

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

*ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features & Benefits:

• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
• Rugged diecast shell and unique chuck type strain relief
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
• Flat spot on the housing for better orientation
• Accessories include color coded boots in 9 standard colors
• Allows assembly of pre-assembled conventional RJ45 cables

Technical Information

Product:

• Title: NE8MX-B
• Gender: Male
• IMPORTANT: Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical:

• Cable O.D.: 4.5 mm - 8 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles

Material:

• Boot: Polyamide (PA 6)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell coating: Black KTL
• Strain relief: Polyacetal (POM)

Environmental:

• Temperature range: -30 °C to +80 °C
