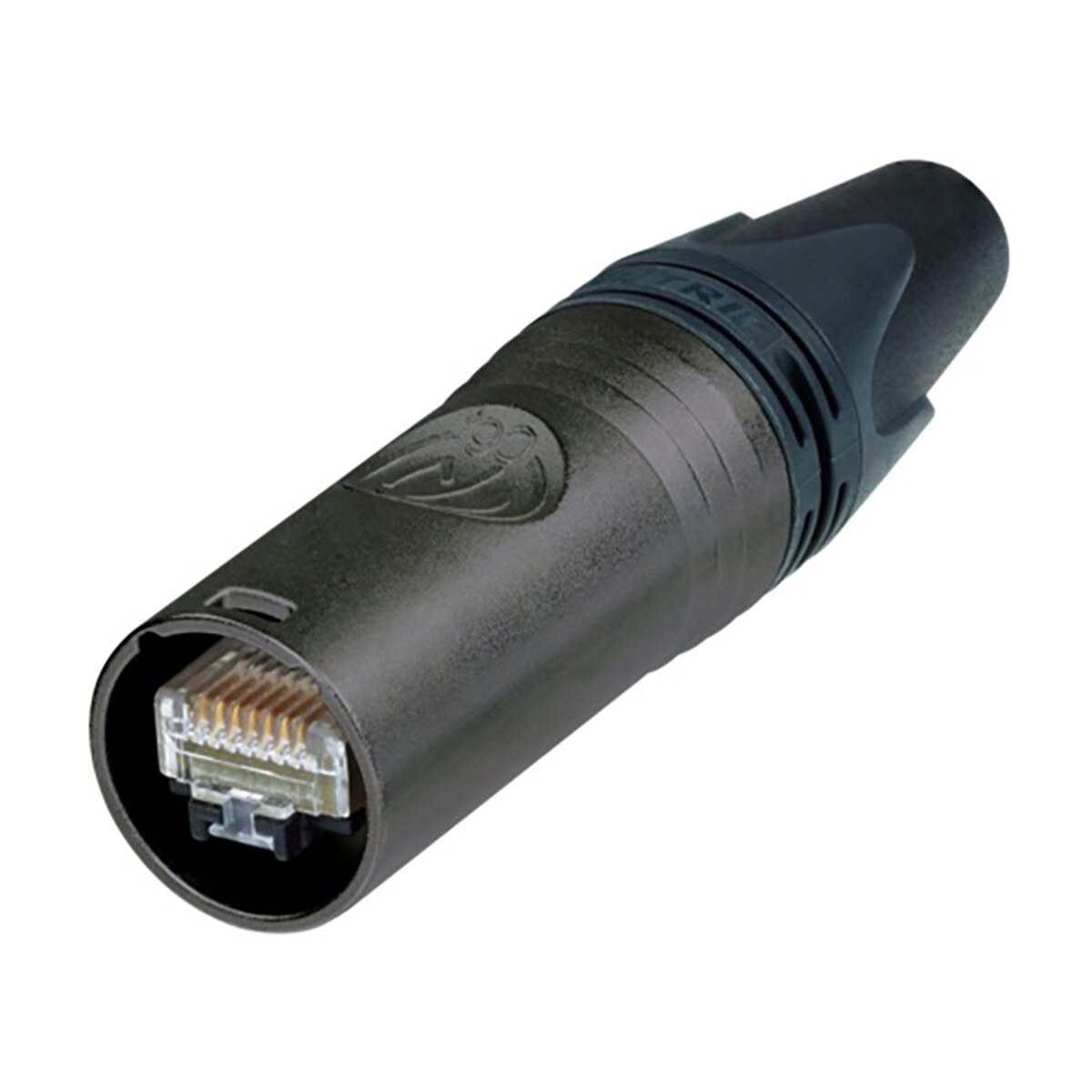

Neutrik Connector EtherCON CAT6A - Black (Includes CAT6A RJ45)

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating

The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is ≤ 1.1 mm please refer to NE8MX-B-T.

Features & Benefits:

• Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
• PoE++ compliant according to 802.3bt Type4
• IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
• Rugged latch lock system million fold proven
• Intermateable with the existing etherCON CAT5 range
• Unique Neutrik chuck-type strain relief

Technical Information

Product:

• Title: NE8MX6-B
• Gender: Male

Electrical:

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Transmission performance: CAT6A, acc. TIA/EIA rating, CAT6A, acc. IEC/ISO/EN rating
• Power over Ethernet: PoE++ acc. IEEE 802.3bt

Mechanical:

• Cable O.D.: 7.0 - 9.5 mm
• Lifetime: > 1000 mating cycles
• Wiresize: AWG 24/1 - AWG 22/1 (solid), AWG 24/7 - AWG 22/7 (stranded)
• Locking device: Latch lock
• Insulation diameter: 1.1 - 1.6 mm

Material:

• Bushing: PA / PU
• Contact plating: Au
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell coating: Black KTL
• Strain relief: POM

Environmental:

• Protection class: IP 65 (in combination with NE8FDX-*6-W)
• Temperature range: -40 °C to +70 °C

Neutrik NE8MX6-B Assembly Instruction.pdf
Neutrik NE8MX6-B Technical Paper.pd
Neutrik NE8MX6-B Whitepaper.pdf
Neutrik NE8MX6-B Dimensional Drawing.pdf
Neutrik NE8MX6-B Test Report.pdf
Neutrik NE8MX6-B IEC Test Report.pdf
