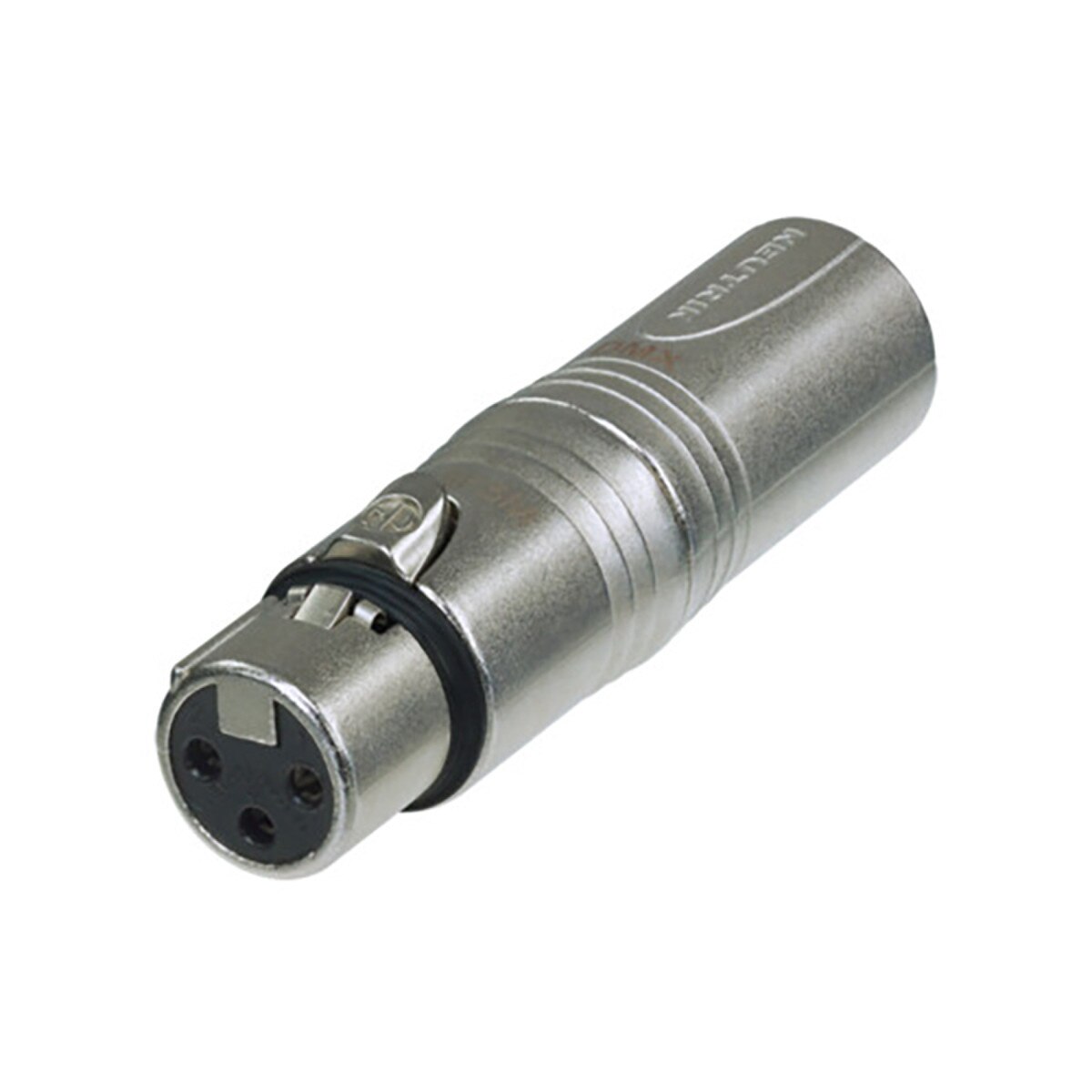

Neutrik DMX Male 5 Pin to Female 3 Pin

(0)No Reviews yet
$19.67
SKU: Neutrik NA3F5M

Details

3 pole XLR female - 5 pole XLR male for lighting (DMX) applications

Features & Benefits:

  • Compact XLR 3 to 5 pole adapter for lighting (DMX) applications
  • Solve interconnection problems of the old (3-pole) and new (5-pole) DMX standard
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability

Technical Information:

  • Title: NA3F5M
  • Connection Type: Adapter

Electrical:

  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ
  • Rated current per contact: 3 A

Mechanical:

  • Insertion force: < 20 N
  • Withdrawal force: < 20 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Latch lock

Material:

  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn6) (female)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

Environmental:

  • Temperature range: -30 °C to +80 °C


Neutrik NA3F5M Product Guide.pdf
Neutrik NA3F5M Dimensional Drawing.pdf
