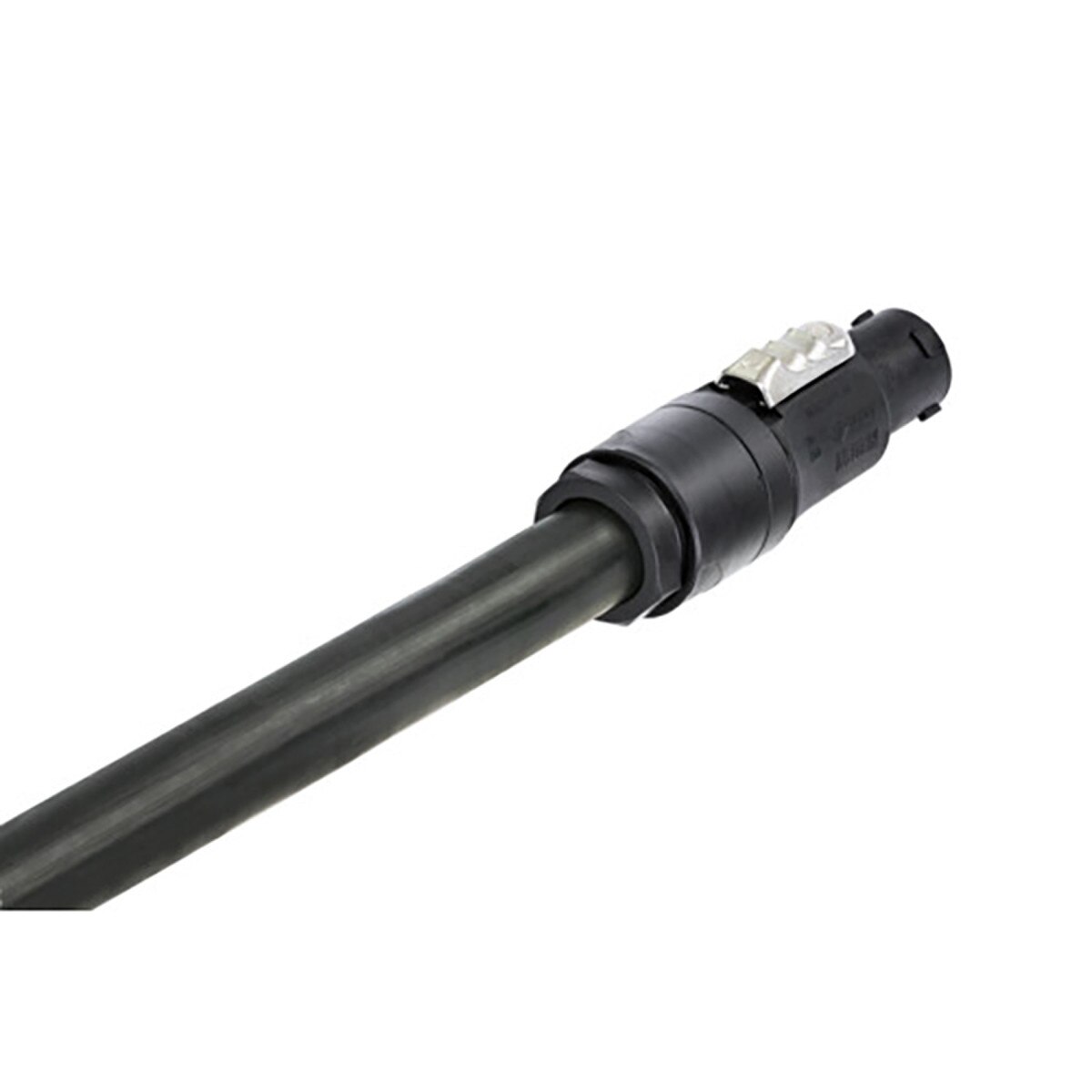

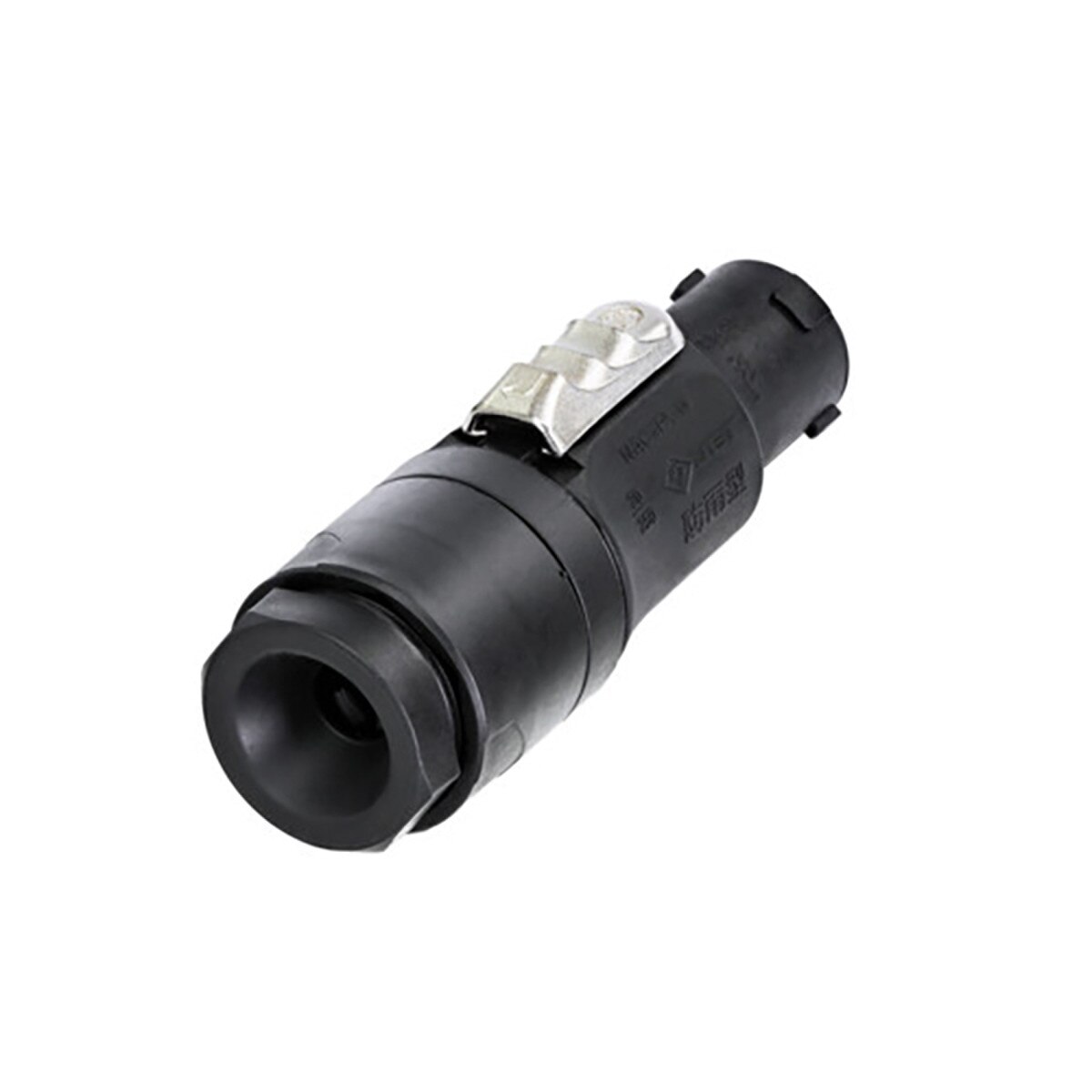

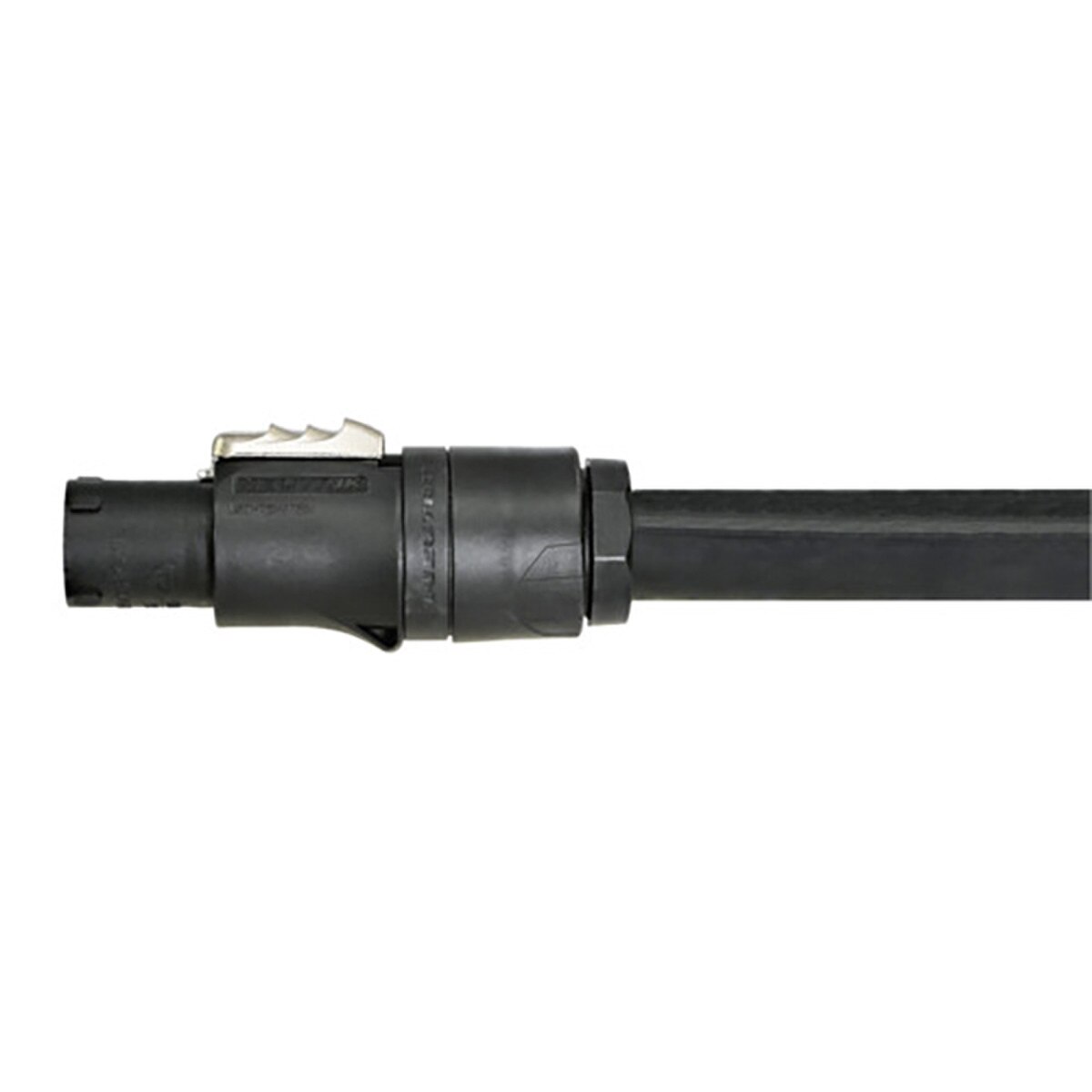

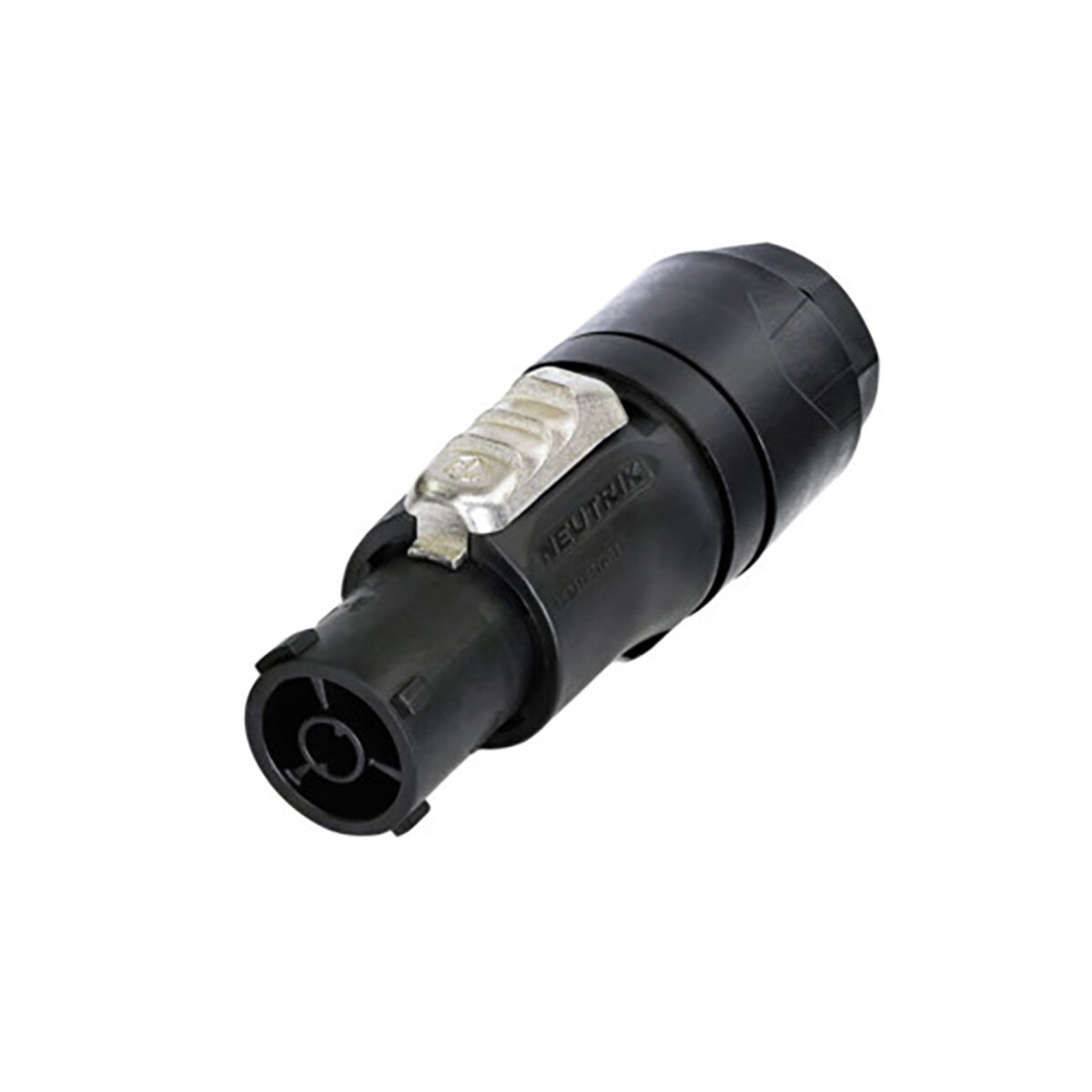

Neutrik Locking PowerCon True1 Female - Power In

(0)No Reviews yet
$15.27
SKU: Neutrik NAC3FX-W-TOP-L

Details

Locking female cable connector for big power cord with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.

Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A)

The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.

Features & Benefits:

  • IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65 rating and approved for outdoor protection
  • Uses high impact UV-resistant materialsExtremely robust and reliable cable retention
  • TOP True Outdoor Protection
  • Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
  • Superior NEUTRIK quality standard

Technical Information:

  • Title: NAC3FX-W-TOP-L
  • Connector series: powerCON TRUE1 TOP

Electrical:

  • Dieletric strength: 2.8 kVac
  • Insulation resistance: > 0.1 GΩ
  • Number of electronical contacts: 2 + PE
  • Rating USA: UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC

Certified with cable types:

  • SOOW 12/3, SOOW 14/3
  • SJOOW 12/3

Mechanical:

  • Cable O.D.: 10 – 16 mm (0.39 – 0.63 inches)
  • Lifetime: Typically 5’000 mating cycles
  • Wire size (mm²): 2.5 mm²
  • Wire size (AWG): 14 – 12 AWG

Material:

  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn0.2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: ZuAl4Cu1
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)

Environmental:

  • Flammability: UL 94 V-0
  • Protection class: IP65, UL50E enclosure type 4 (mated)
  • Temperature range: -30 °C to +80 °C





ASSEMBLY INSTRUCTION powerCON TRUE1 TOP NAC3FX-W-TOP-L.pdf
Operating Instruction - powerCON TRUE1 TOP Cable Connector.pdf
Operating Instruction - powerCON TRUE1 TOP Power IN.pdf
Neutrik NAC3MX-W-TOP Dimensional Drawing.pdf
