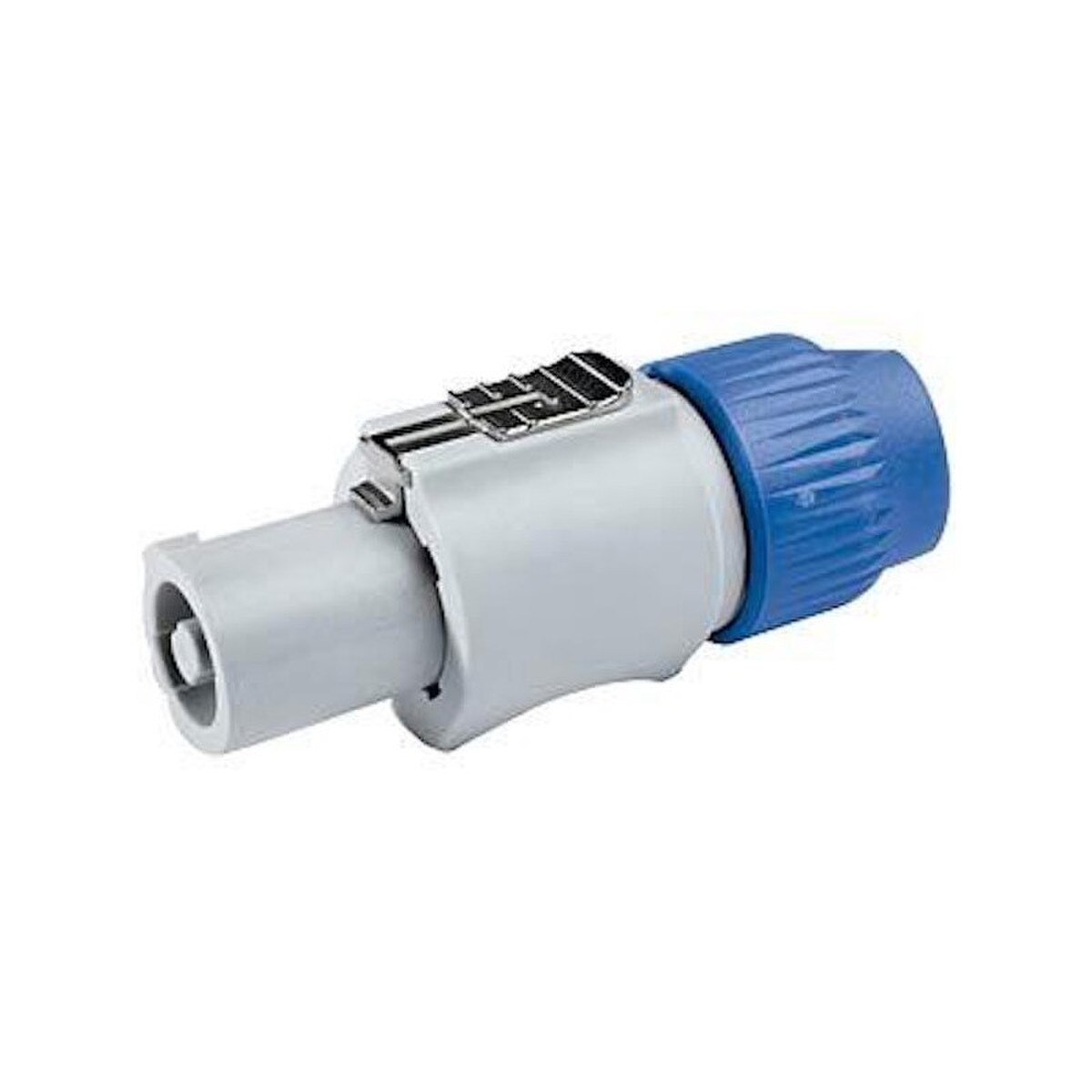

Neutrik NAC3FCB

(0)No Reviews yet
$11.38
SKU: Neutrik NAC3FCB

Details

Direct replacement / successor: NAC3FXXB-W-S (cable OD 6-12 mm) and NAC3FXXB-W-L (cable OD 10-16 mm)


Lockable cable connector, power-out, screw terminals, grey


The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.


Attention: This powerCON is a connector without breaking capacity, i.e. it must not be connected or disconnected under load or live!


Features & Benefits:

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
  • VDE certified
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Information:

  • Title: NAC3FCB
  • Gender: female

Electrical:

  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 61984:20 A 250 V AC
  • Rating USA: UL 1977:20 A 250 V AC

Mechanical:

  • Cable O.D.: 6 - 15 mm (1)
  • Lifetime: > 1000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 12 AWG
  • Locking device: Quick Lock, Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material:

  • Contact plating: 4 µm Ag
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Polyamide (PA 6 30 % GR)
  • Strain relief: Polyacetal (POM)

Environmental:

  • Temperature range: -30 °C to +80 °C
  • Protection class: IP20
  • Flammability Rating: UL 94 HB


Assembly_Instruction-_PowerCon_20A_93556_File_2.pdf
Drawing_NAC3FCB_93558_File_2.pdf
