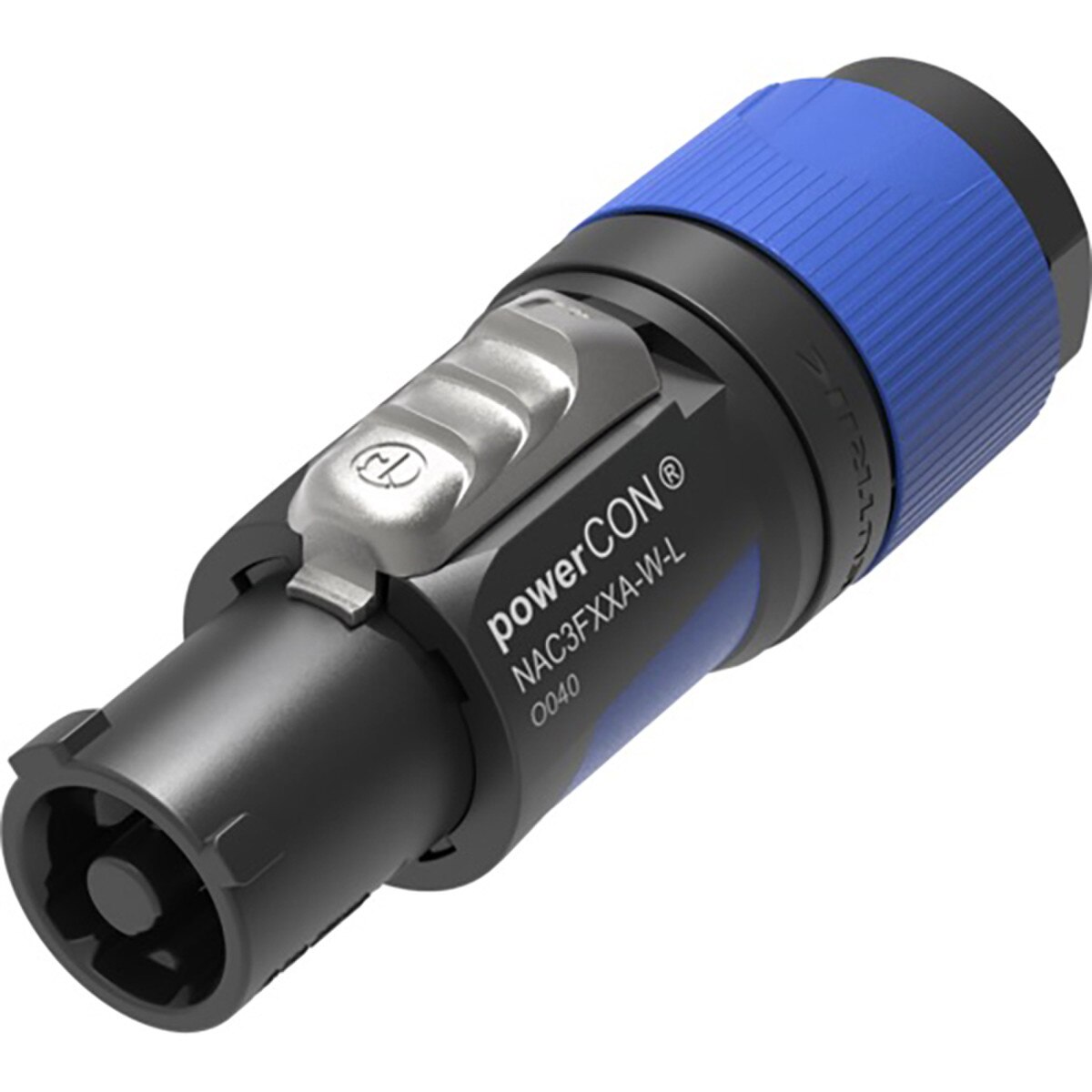

Neutrik NAC3FXXA-W-L Cable End - Power In - Blue - Large Chuck SOO & SJO
Details
IEC EN 60320-1 compliant | Accepted for cord sets as per IEC EN 60799:2021
Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Features & Benefits:
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 Ergonomic design with slip-proof two-component molded housing
- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy and reliable twist lock system Improved kink protection by two-component bushing
Technical Information:
- Title: NAC3FXXA-W-L
- Connector series: powerCON blue/grey
Electrical:
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: > 3 kVac (after mating cycles)
- Insulation resistance: > 10 GΩ (initially)
- Number of electrical contacts: 2 + PE
- Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC
Mechanical:
- Cable O.D.: 10 – 16 mm
- Lifetime: Typically 5’000 mating cycles
- Wiresize (mm²): 1.5 – 2.5 mm²
- Wiresize (AWG): 14 – 12 AWG
- Locking device: Twist lock
- Termination: Screw type terminals
Material:
- Contact plating: Ag
- Contacts: Copper Alloy
- Insert: Polyamide (PA6.6)
- Locking element: Zinc diecast
- Shell: Polyamide (PA6) / TPE
- Strain relief: Polyketone
- Bushing: Polypropylene / TPE
Environmental:
- Temperature range: -33 °C to +80 °C
- Protection class: IP20
- Flammability acc. to UL94: V-0
