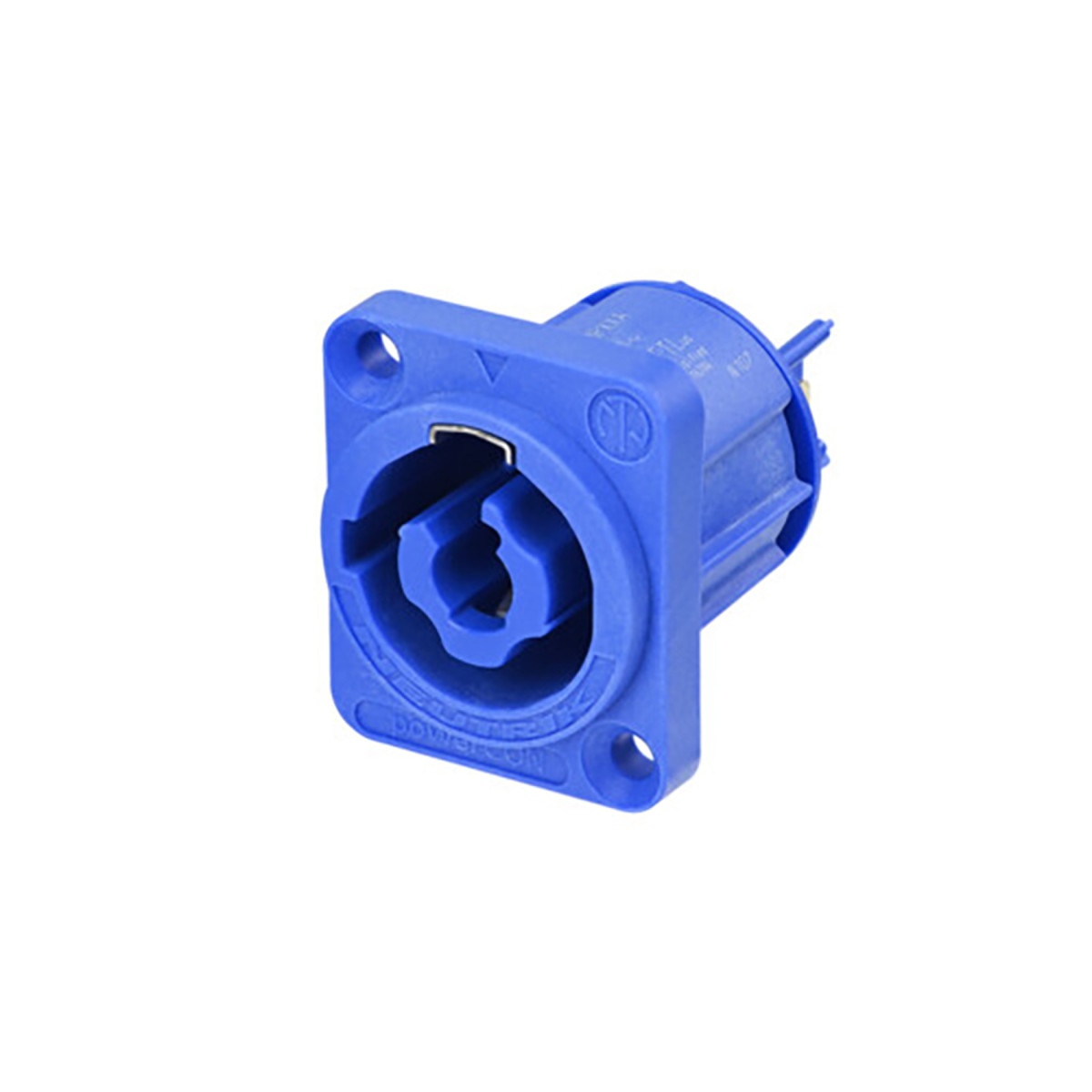

Neutrik NAC3MPXXA Receptacle - Power in - Blue

(0)No Reviews yet
$6.10
SKU: Neutrik NAC3MPXXA

Details

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.


Appliance inlet connector, 3/16" flat tab terminals, blue


The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.


The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits:

  • Lockable single phase connector
  • Drop-in replacement for NAC3MPA-1; mates to NAC3FCA cable connectors
  • Certified according to IEC 60320-1 & UL 60320-13 contacts for line, neutral and premating safety ground
  • Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Extremely robust and reliable
  • IEC 62368-1 compliantUL94 V-0 materials

Technical Information:

  • Title: NAC3MPXXA
  • Gender: male

Electrical:

  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 10 GΩ (initial)
  • Number of electrical contacts: 2 + PE
  • Rating USA: UL 60320-1:20 A 127 V AC
  • UL 1977: 20 A 250 V AC

Mechanical:

  • Lifetime: > 5000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 12 AWG

Material:

  • Contact plating: Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy

Environmental:

  • Flammability: UL 94 V-0
  • Protection class: IP 20
  • Temperature range: -30 °C to +80 °C

Assembly Recommendation of powerCON Chassis Connector.pdf
Neutrik NAC3MPXXA Dimensional Drawing.pdf
