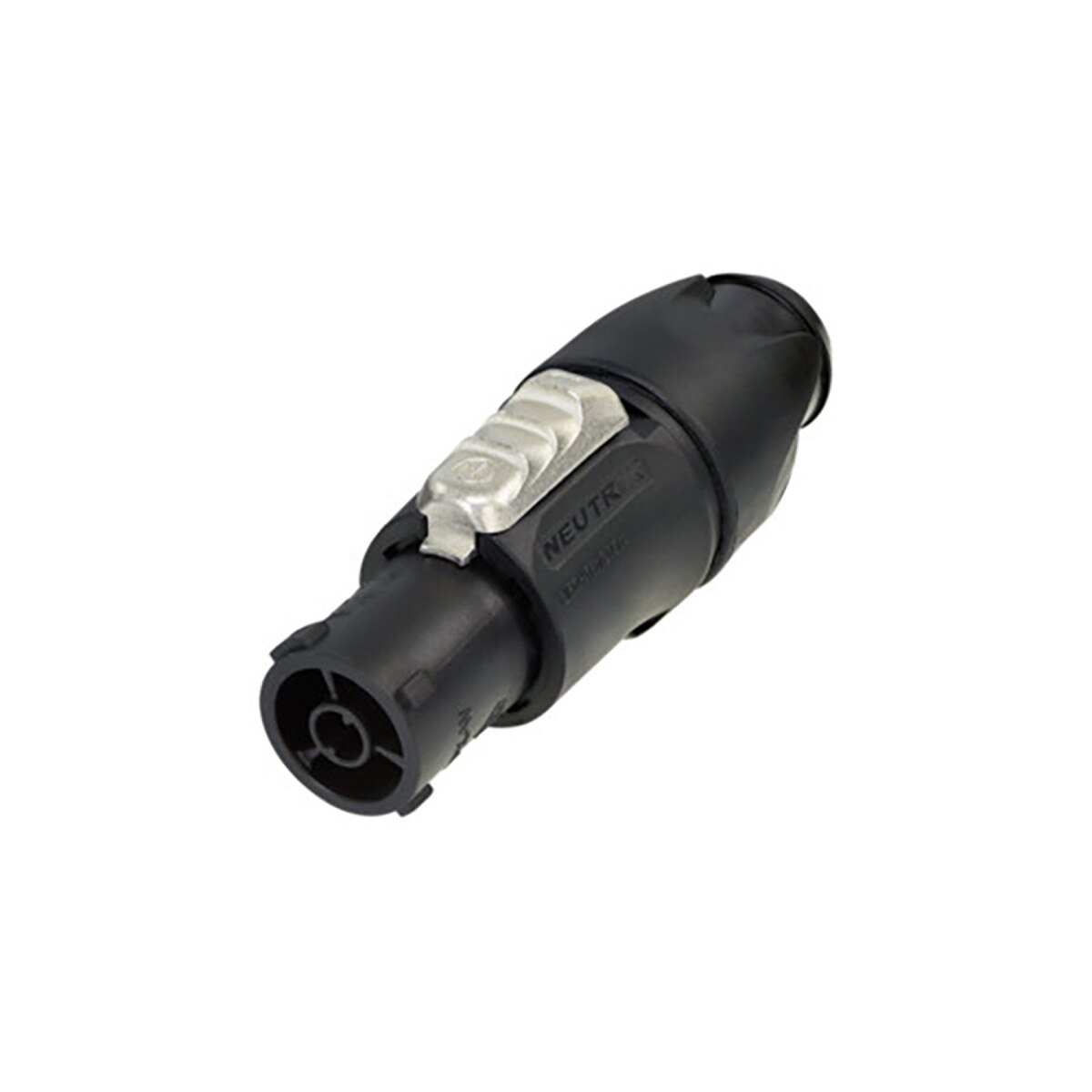

Neutrik PowerCon True1 TOP Female - Power Out

(0)No Reviews yet
$15.27
SKU: Neutrik NAC3FX-W-TOP

Details

The powerCON TRUE1 TOP is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.


Keyed for Power IN, screw terminals, up to 16 A (USA: 20A)


The powerCON TRUE1 TOP is a single-phase connector with breaking capacity (CBC).

Features & Benefits:

  • IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable cable retention
  • Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
  • Superior NEUTRIK quality standard

Technical Information:

  • Title: NAC3FX-W-TOP
  • Connector series: powerCON TRUE1TOP

Electrical:

  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electrical contacts: 2 + PE
  • Rating: UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC

Mechanical:

  • Cable O.D.: 6 - 12 mm (0.23 – 0.47 inches)
  • Lifetime: > 5000 mating cycles
  • Wiresize: 1.0 - 2.5 mm²
  • Wiresize: 12 AWG

Material:

  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn0.2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: ZuAl4Cu1
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)

Environmental:

  • Flammability: UL 94 V-0
  • Temperature range: -30 °C to +80 °C

Assembly Instruction - powerCON TRUE1 TOP NAC3FX-W-TOP.pdf
Safety Notice - powerCON TRUE1 TOP.pdf
Neutrik NAC3FX-W-TOP Dimensional Drawing.pdf
