Neutrik Receptacle EtherCON CAT5 D Series - Black

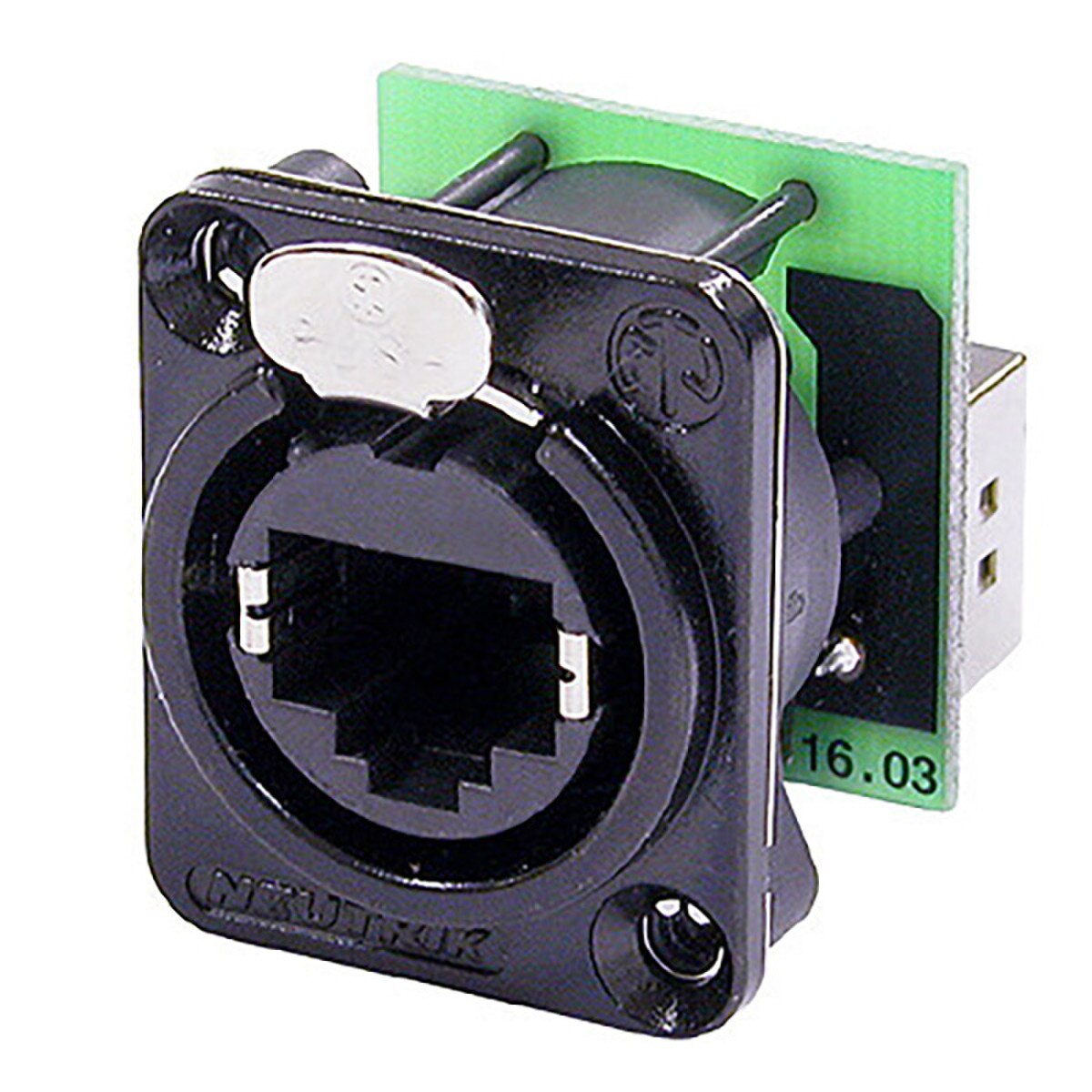

RJ45 feedthrough receptacle, black D-shape metal flange with the latch lock, mounting screws included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

*Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits:

• Accommodates NE8MC* or any standard RJ45 plug
• Approved latch lock system
• Mountable from the front or rear of the panel
• CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Technical Information

Product:

• Title: NE8FDP-B
• Gender: female

Electrical:

• Contact resistance: < 50 mΩ
• Dielectric strength: 1 kVdc
• Frequencyrange: 1 - 100 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1,5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT5e acc. to TIA/EIA 568A/B component specifications
• CAT5e acc. to ISO/IEC 11801 component specifications
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical:

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel thickness: max. 4 mm 0.16'
• Wiring: Feedthrough
• Locking device: Latch lock
• Chassis shape: D

Material:

• Contact plating: 0.2 µm Au over Ni plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black KTL

Environmental:

• Flammability: UL 94 V-0
• Temperature range: -30 °C to +80 °C

Standard compliance:

• ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• IEC 60603-7-3 Ed.2.0 (2010-04)
• IEC 60512-99-002 Ed.2.0 (2022-01)
• IEC 60512-9-3 (2011-06)
