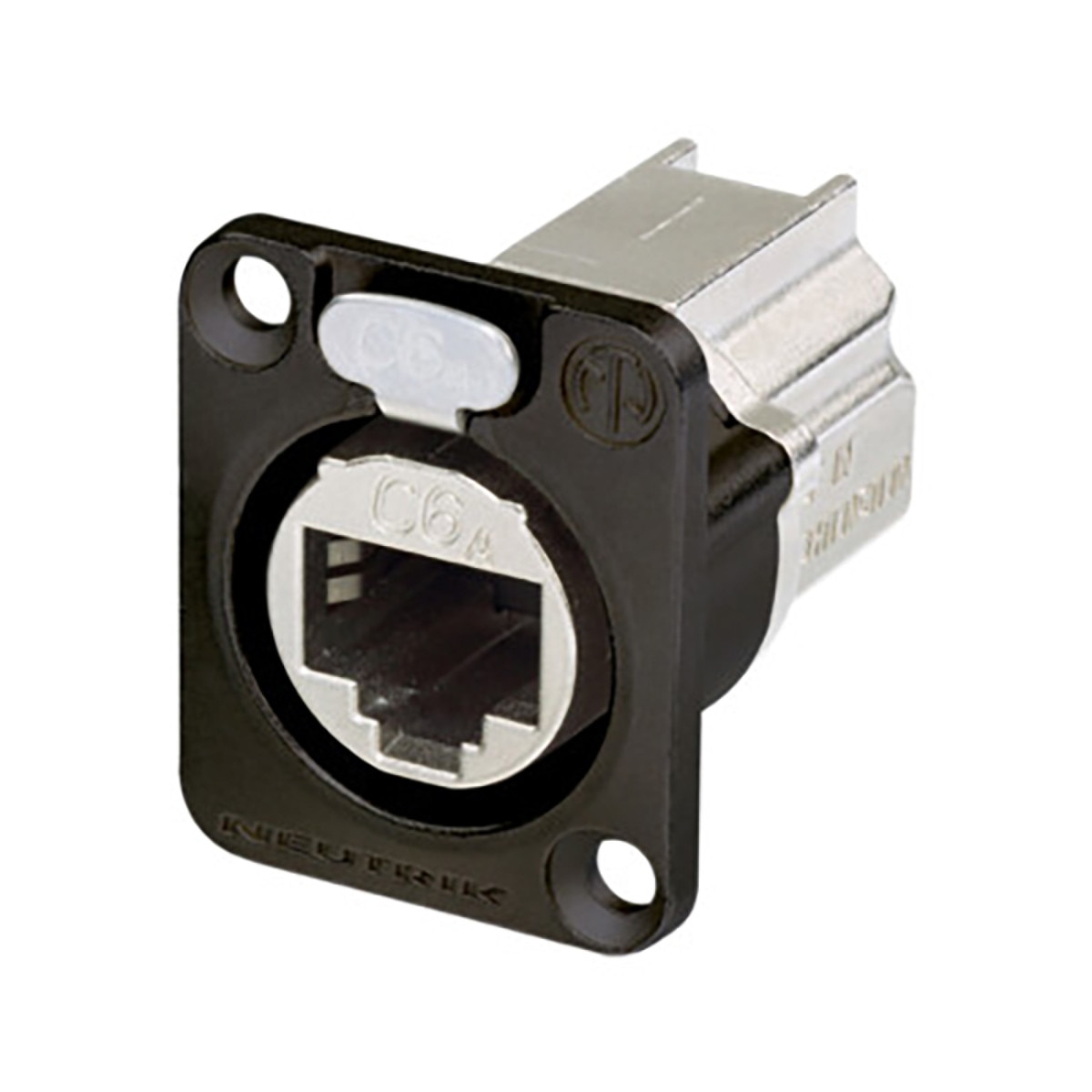

Neutrik Shielded Feedthrough Receptacle Cat6A D Series - Black

D-shape CAT6A panel connector, shielded, feedthrough, black chromium housing

*Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits:

• Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt
• Rugged latch lock system million fold proven
• Intermateable with the existing etherCON CAT5 range
• Shielded system - high noise immunity and EMI protection
• CAT6e / Class EA according to TIA/EIA 568C and ISO/IEC 11801

Technical Information

Product:

• Title: NE8FDX-P6-B
• Gender: Female

Electrical:

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT6A acc. to TIA/EIA 568C channel specifications, CLASS EA acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical:

• Lifetime: > 1000 mating cycles
• Wiring: Feedthrough
• Locking device: Latch lock
• Mounting direction: Front mounting

Material:

• Contact plating: Au
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell planting: Black KTL

Environmental:

• Flammability: UL 94 V-0, EN 45545 R26
• Temperature range: -40 °C to + 70 °C

Standard compliance:

• ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• IEC 60603-7-3 Ed.2.0 (2010-04)
• IEC 60512-99-002 Ed.2.0 (2022-01)
• IEC 60512-9-3 (2011-06)
• EN 45545-2:2020+A1:2023 (R26, clause 4.2, clause 4.3.2)
