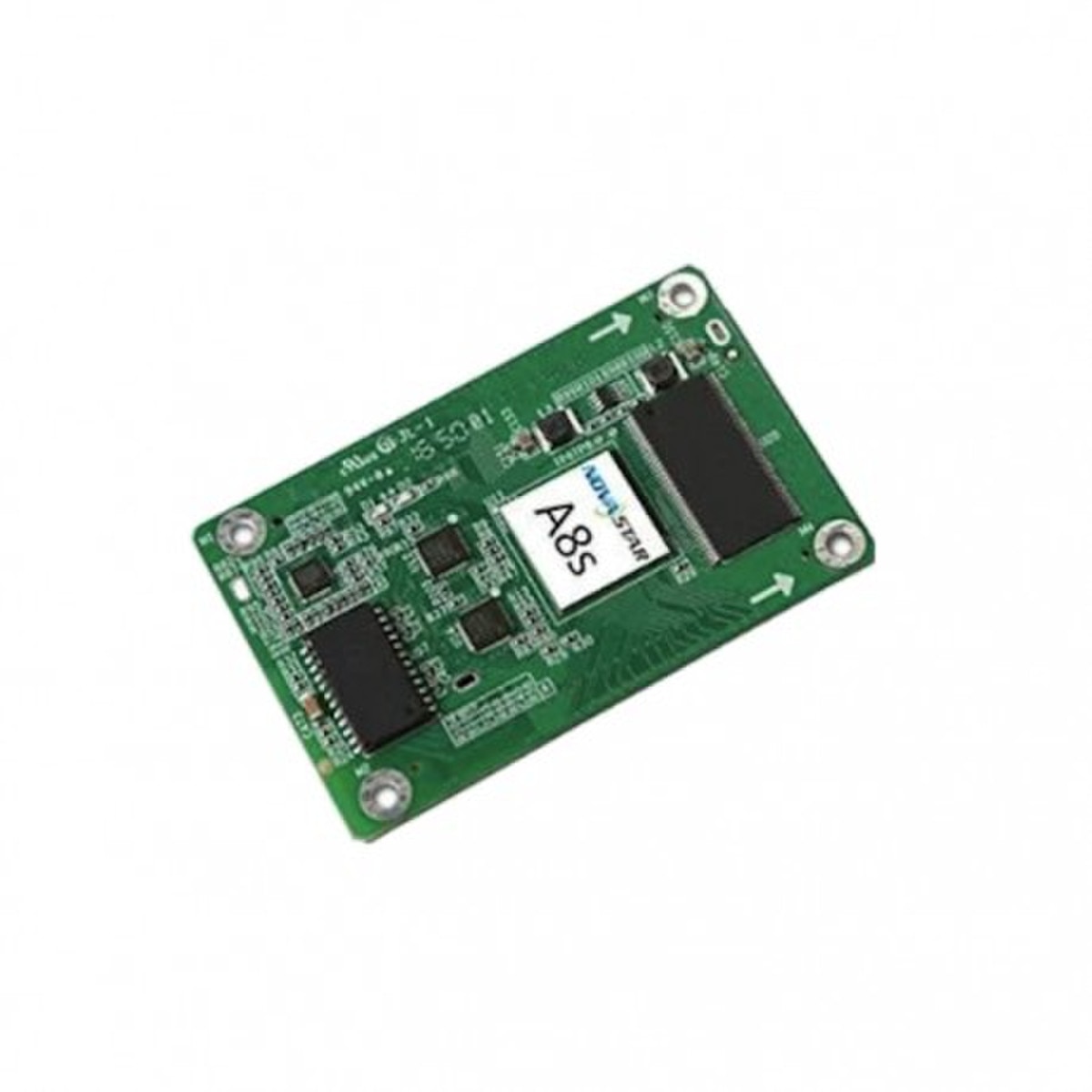

NovaStar A8s Armor Receiving Card

A8s is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with a single card loading up to 512×256 pixels (PWM IC). It supports up to 32 parallel data groups and 128 serial data groups. A8s can work with the independent controller MCTRL R5, making display rotate at any angle. A8s can also work with the independent controller MCTRL4K featuring large loading capacity and support HDR10 compliant video input, realizing larger dynamic brightness range and larger color space, and making the image smoother. A8s supports pixel-level brightness and chroma calibration by working with NovaLCT and NovaCLB to realize calibration on each pixel. It can effectively remove color difference and greatly improve LED display image consistency, presenting smoother images to users. In addition, it also supports image rotation in 90° increments, creating richer images and improving visual experiences. Software and hardware designs of the A8s concern the user deployment as well as operating and maintenance scenarios, enabling easier deployment, more stable operating and more efficient maintenance.

Features

• The small-size hardware design saves cabinet space and is suitable for a variety of application scenarios
• Use high-density connector which is resistant to dust and vibration and features high stability and high reliability
• Assembly network transformer features simple design and improved magnetic compatibility
• Support for...
  • Up to 1/64 scan.
  • Extension of 128 serial data groups.
  • The following functions by working with NovaLCT (V5.2.0 or later):
  • Random order scanning
  • Lighting modules with extracting channels
  • Precise grayscale correction
  • Individual Gamma adjustment for RGB
  • Bit error detection
  • HDR
  • Low latency
  • 18Bit+
  • ClearView
  • LVDS transmission (Supported by dedicated firmware program)
  • Smart module (Supported by dedicated firmware program)
  • Quick seam correction
  • 3D function
  • Auto module calibration
  • Mapping function
  • Pre-stored image setting of the receiving card
  • Module Flash management
  • Monitoring voltage and temperature of itself without using other peripherals
  • Monitoring of Ethernet cable communication status
  • 5-pin LCD module
  • Image rotation in 90° increments
  • Screen rotation at any angles

Specifications

• Input Voltage: DC 3.3 V–5.5 V
• Rated Current 0.6 A
• Rated Power Consumption: 3.0 W
• Temperature: -20°C–+70°C
• Humidity: 10% RH–90% RH, non-condensing
• Environment Temperature: -25°C–+125°C
• Packing Specifications: Each card is shipped with an antistatic bag and anti-collision foam
• Packing Box Dimensions: 14.88 x 7.48 x 0.08 in. (378.0 × 190.0 × 120.0 mm)
• Dimensions: 2.76 x 1.77 x 0.29 in. (70.0 × 45.0 × 7.3 mm)
• Net Weight: 0.04 lbs. (17.3 g)
• Certifications:
  • RoHS
  • EMC Class B
