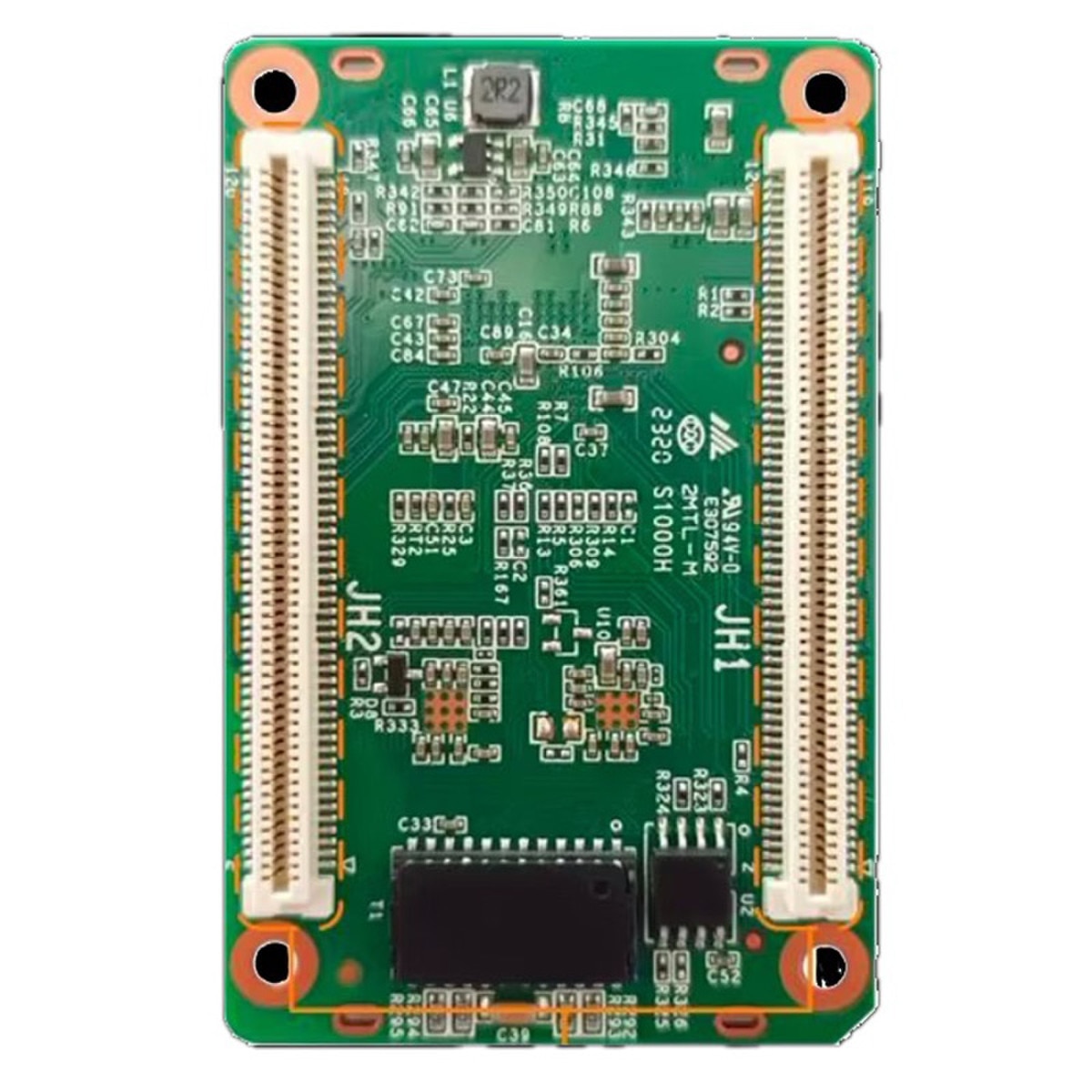

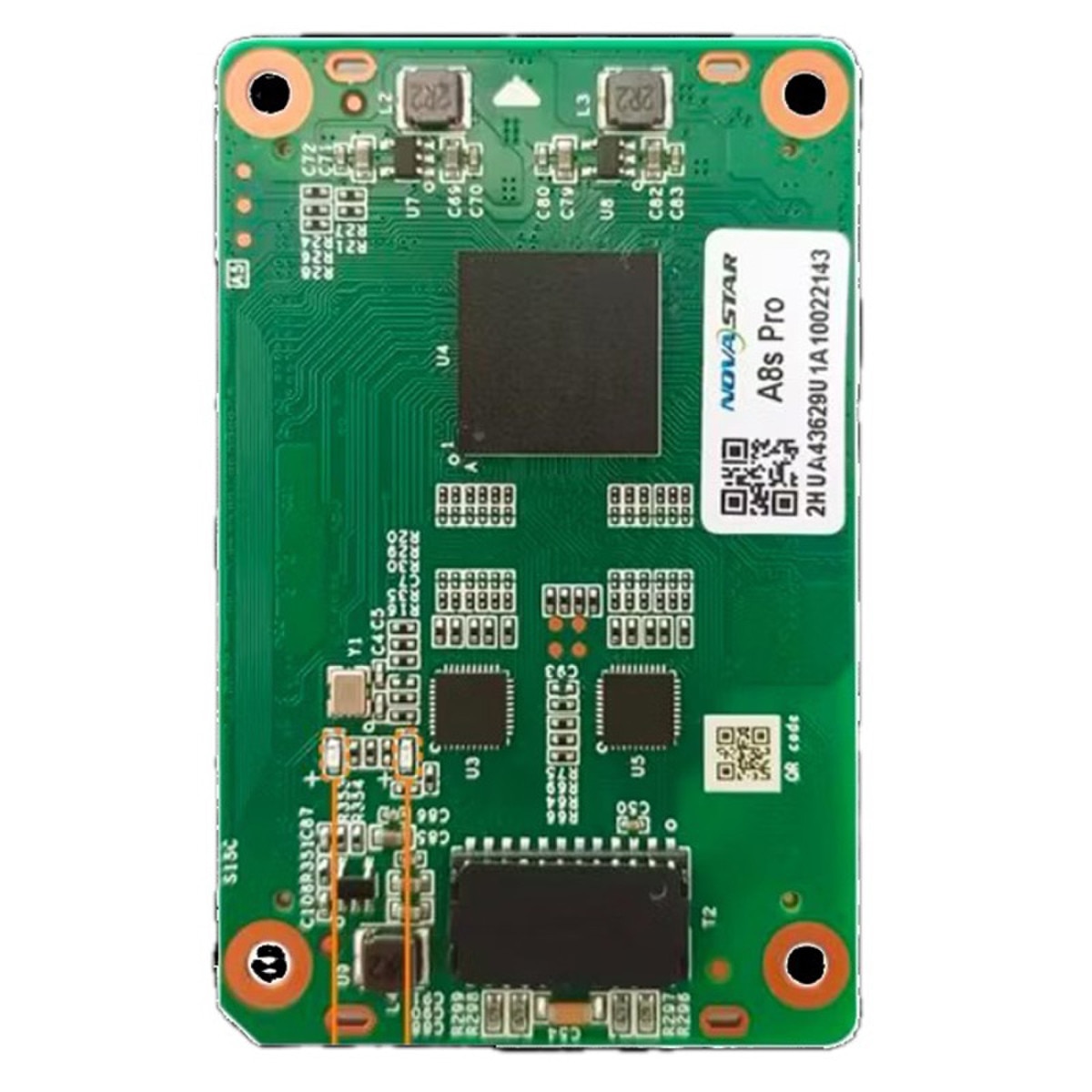

NovaStar A8s Pro Receiving Card

General:

The A8s Pro is a high-end small receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). A single A8s Pro supports resolutions up to 512×512@60Hz.

This receiving card supports the exclusive Multi-Layer Calibration and Image Booster technologies of NovaStar. With other various functions, such as HDR, seam brightness correction, low latency, pixel level brightness and chroma calibration, 3D, individual gamma adjustment for RGB, 90° image rotation, and free image rotation, this receiving card can greatly improve the brightness, grayscale and color performance from every aspect, offering users an ultimate visual experience with a uniform, smooth and lifelike image.

The A8s Pro uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 40 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the A8s Pro has improved electromagnetic compatibility and is suitable for various on-site setups that have high requirements

Specifications

Maximum Resolution:

• 512×512@60Hz

Electrical Parameters:

• Input voltage: DC 3.8 V to 5.5 V
• Rated current: 0.5 A
• Rated power consumption: 2.5 W

Operating Environment:

• Temperature: –20°C to +70°C
• Humidity: 10% RH to 90% RH, non-condensing

Storage Environment:

• Temperature: –25°C to +125°C
• Humidity 0% RH to 95% RH, non-condensing

Physical Specifications:

• Dimensions: 70.0 mm × 45.0 mm × 8.3 mm
• Net weight:17.2 g
• Note: It is the weight of a single receiving card only.

Packing Information:

• Packing specifications: Each receiving card is packaged in a blister pack. Each packing box contains 80 receiving cards.
• Packing box dimensions: 378.0 mm × 190.0 mm × 120.0 mm

Certifications:

• RoHS
• EMC Class B
