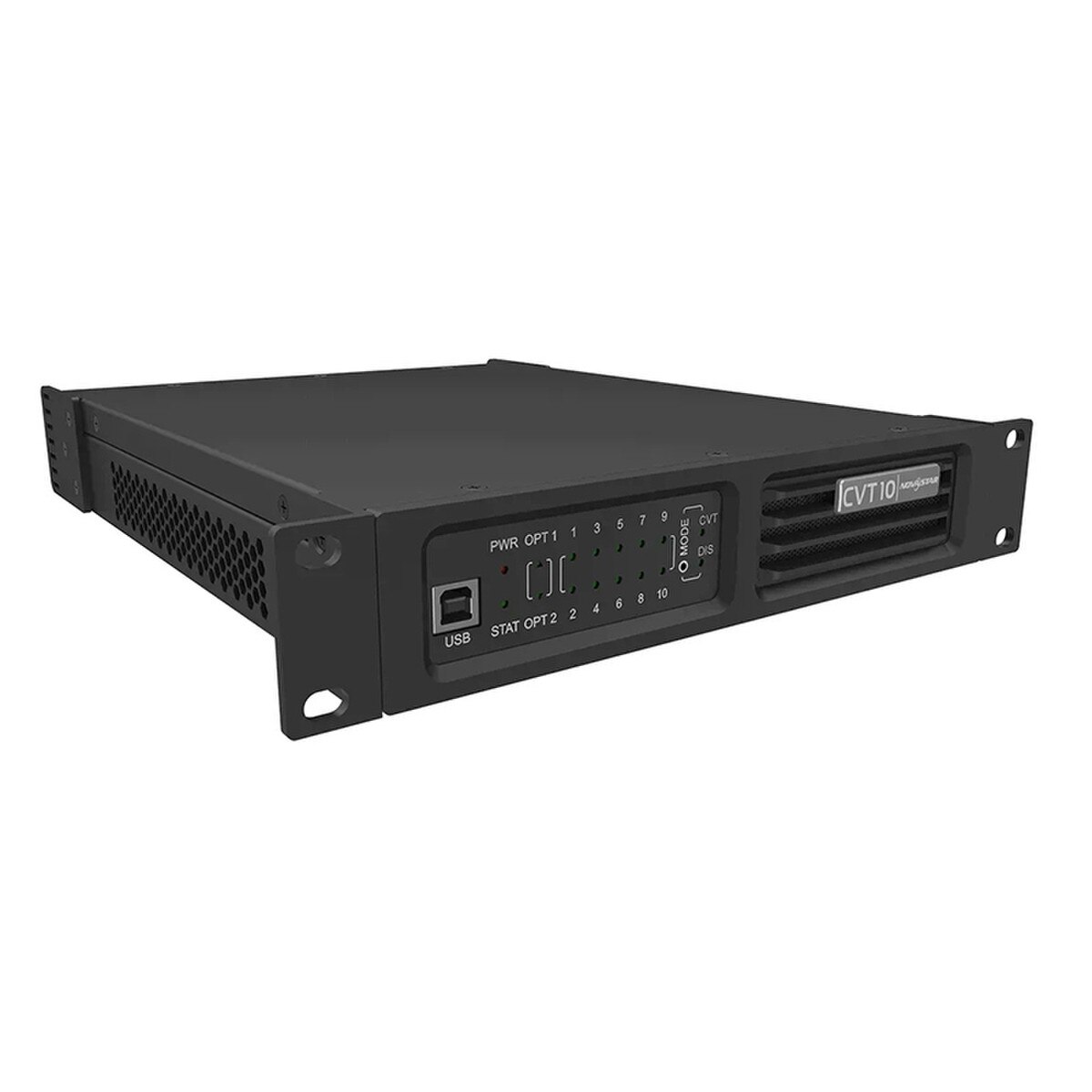

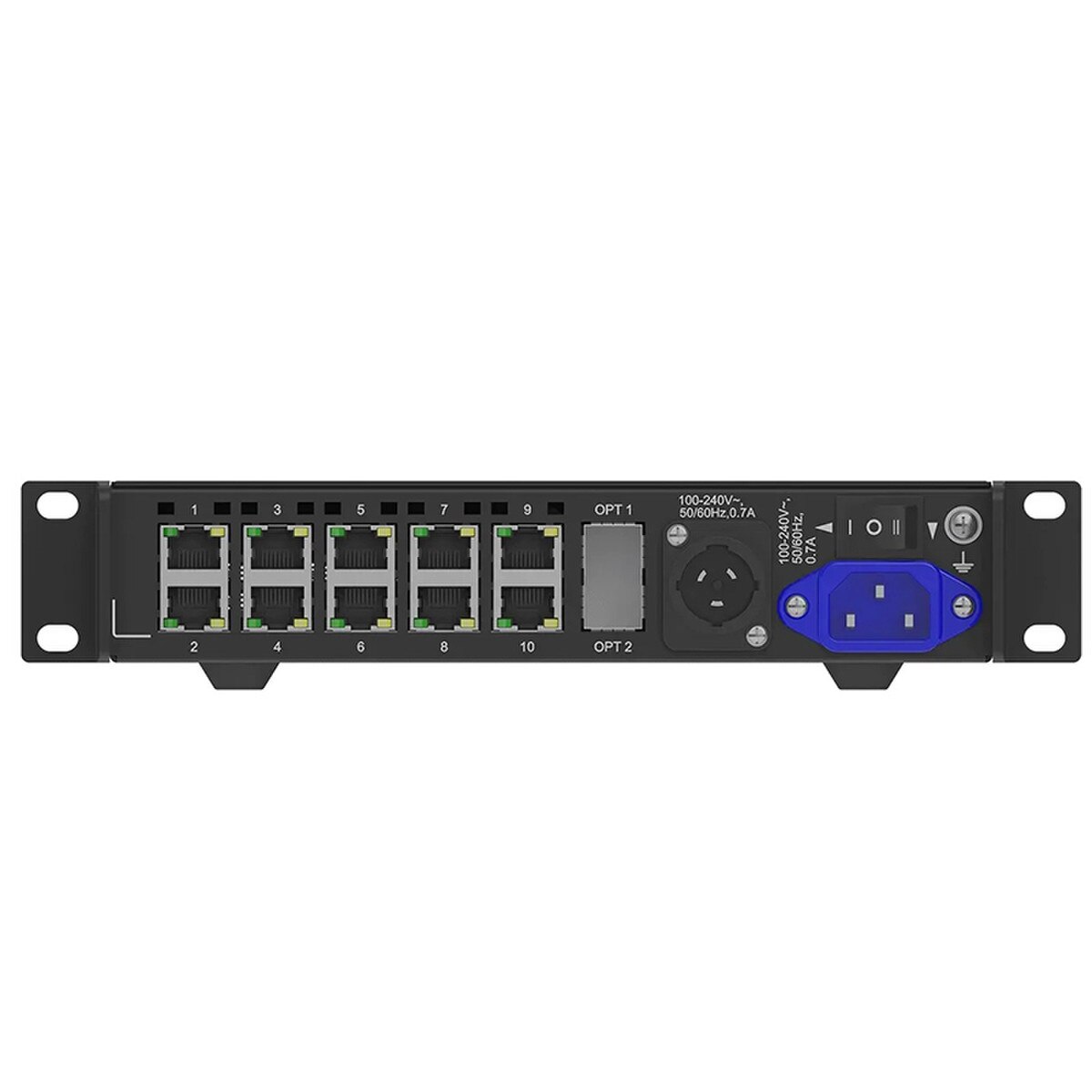

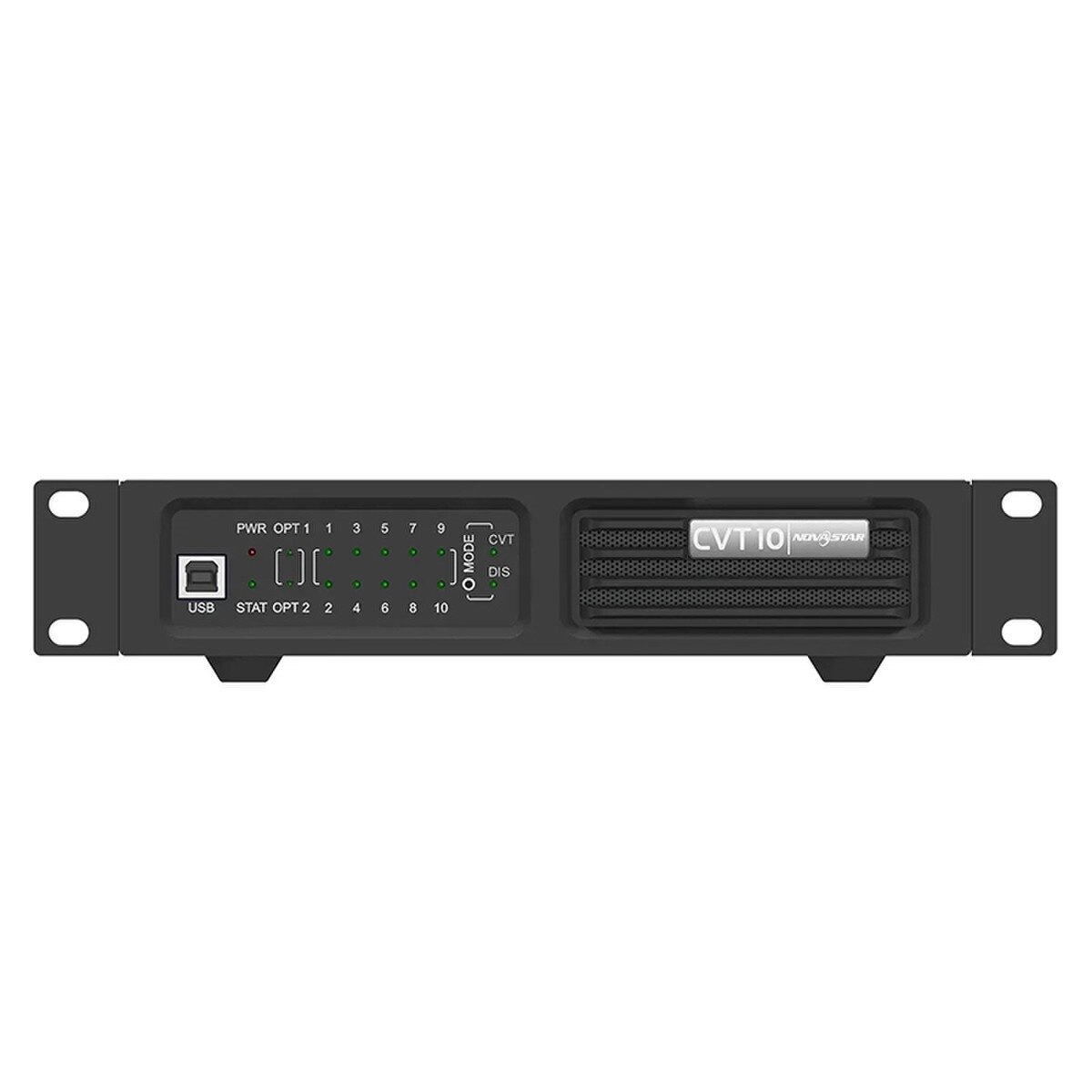

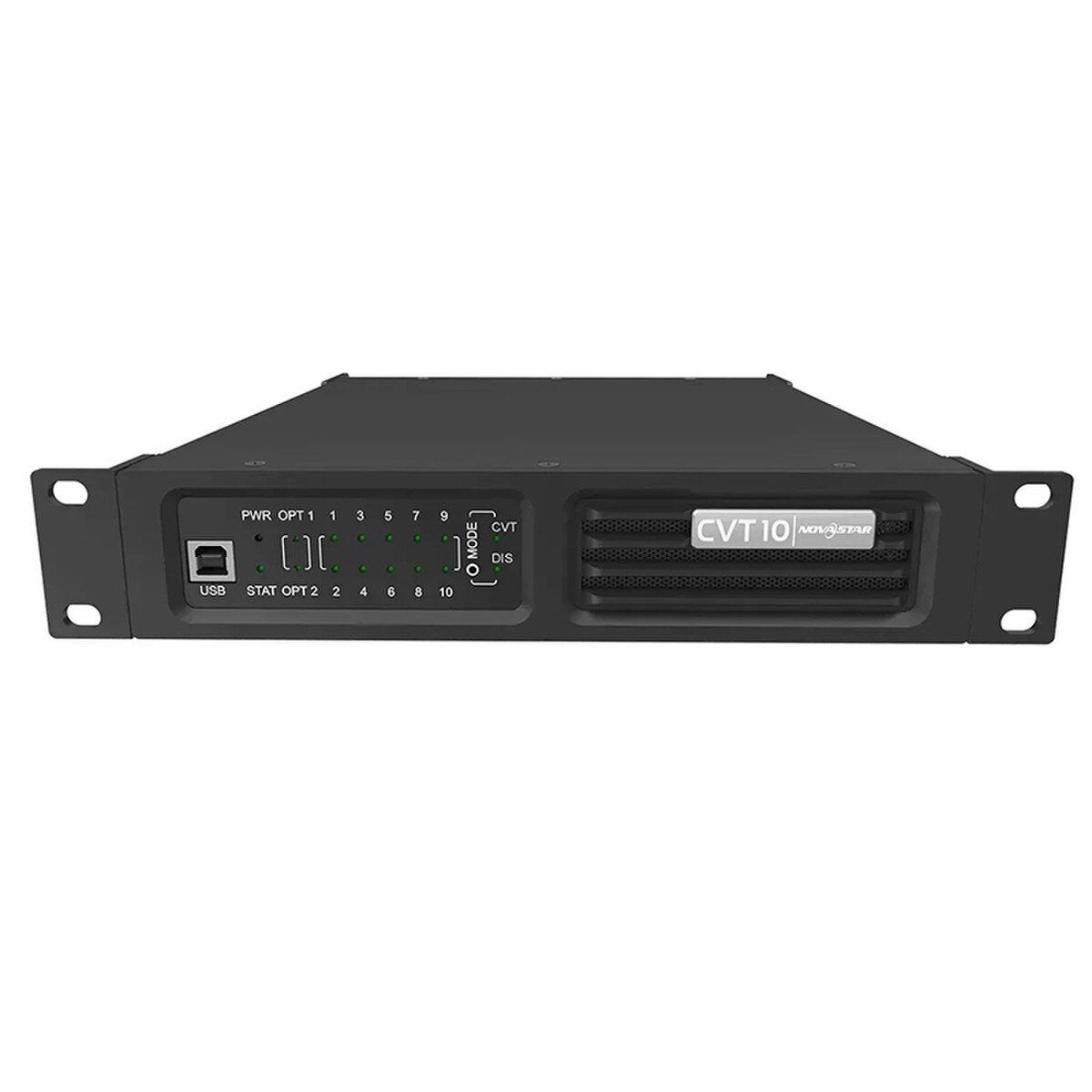

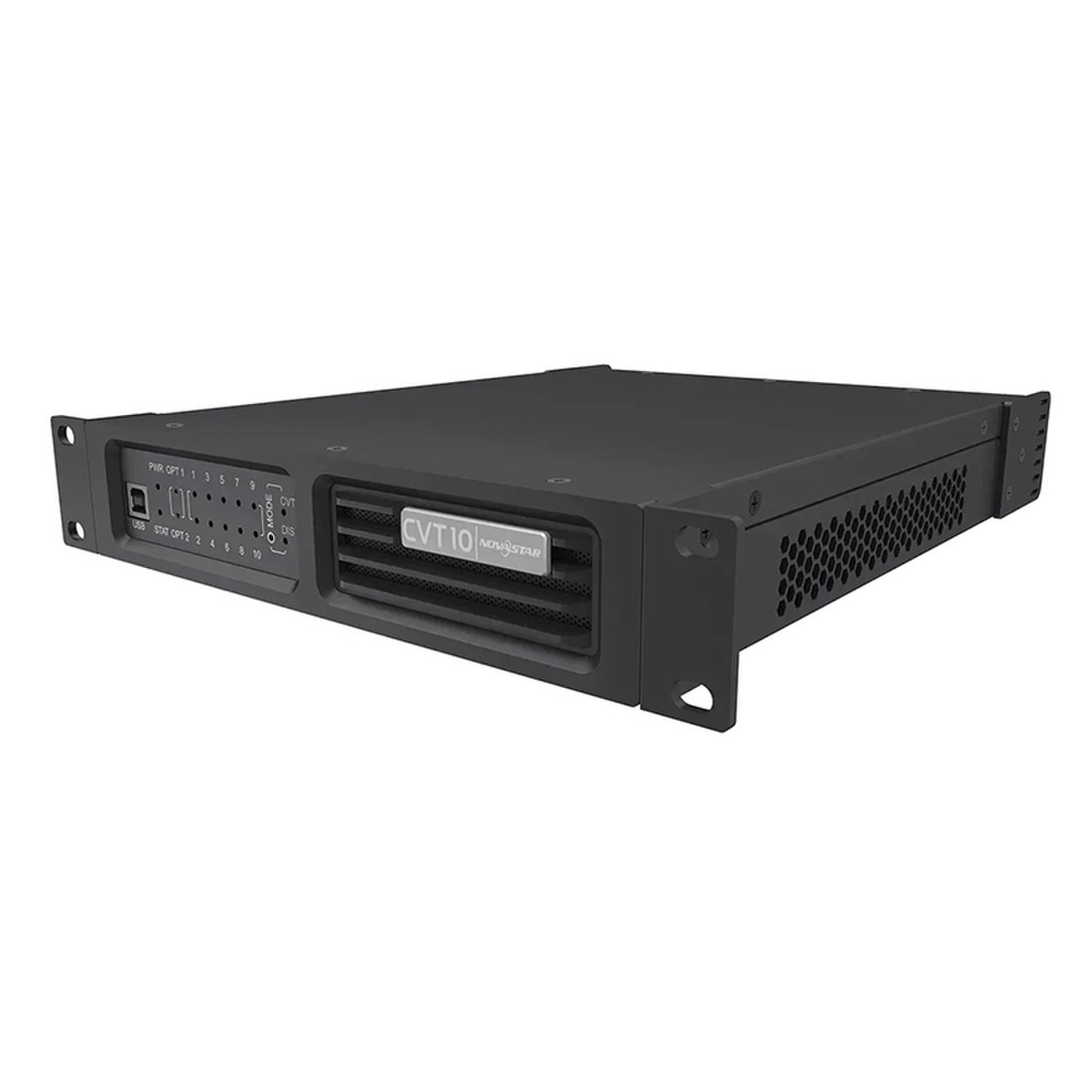

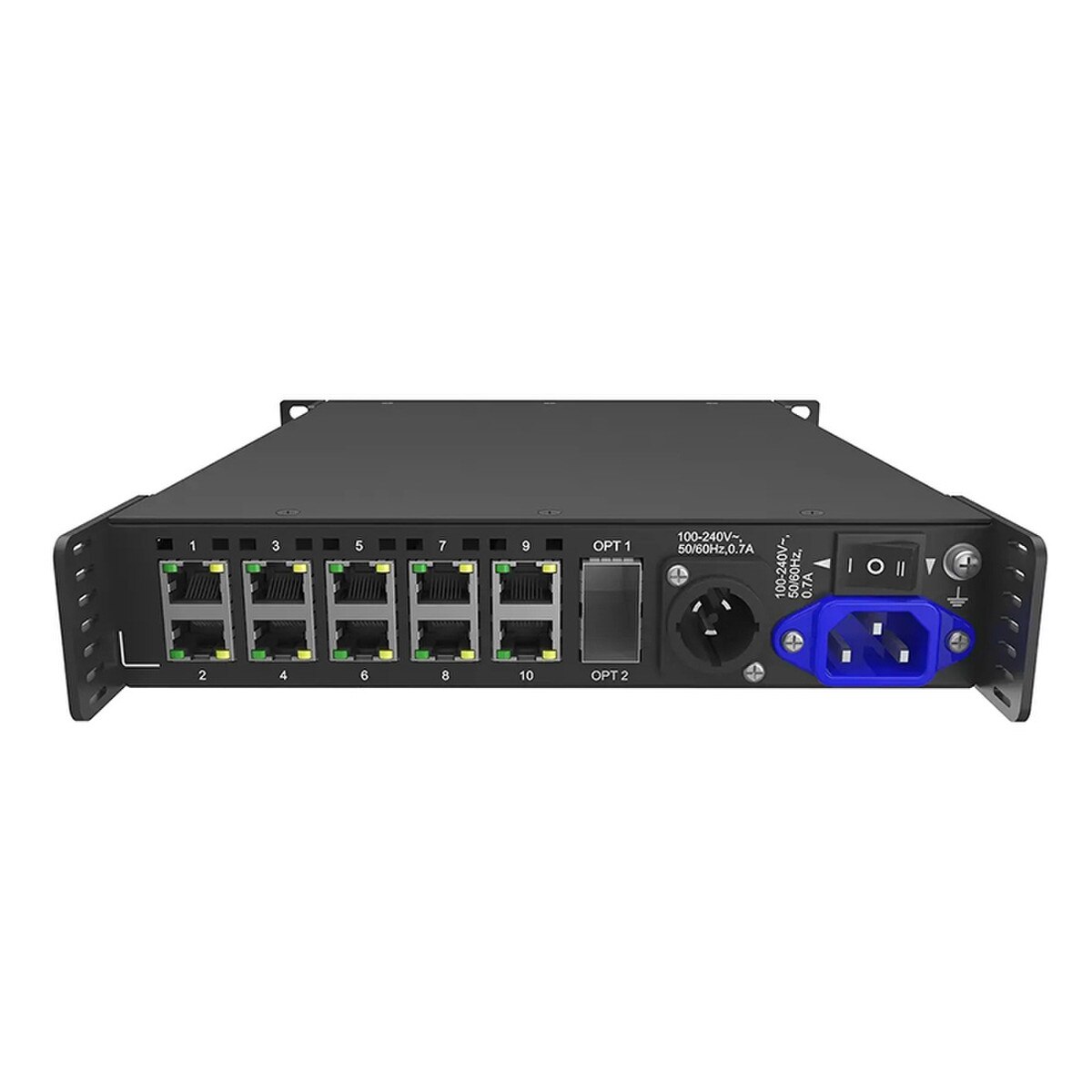

NovaStar CVT10-M Fiber Converter

At A Glance:

• 2x optical ports with bandwidth of up to 10 Gbit/s
• 10x Gigabit Ethernet ports, bandwidth up to 1 Gbit/s
• Fiber in and Ethernet out: 8x Ethernet ports

The CVT10-M offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering full-duplex, efficient and stable data transmission that is not easily interfered with, it is ideal for long-distance transmission. Two CVT10 devices can be combined into one assembly that is one rack unit in width.

Tech Specs

Power & Current:

• Input voltage: 100-240 VAC, 50/60Hz
• Consumption: 22W

Dimensions:

• 1.8" x 11.5" x 10"
• 4.7lbs

General Specs:

• Operating temperature: -20°C ~ 70°C
• Operating humidity: 10 ~ 95%
• Wavelength: 850 nm
• Transmission distance: 300m

Warranty:

• 3 Year
