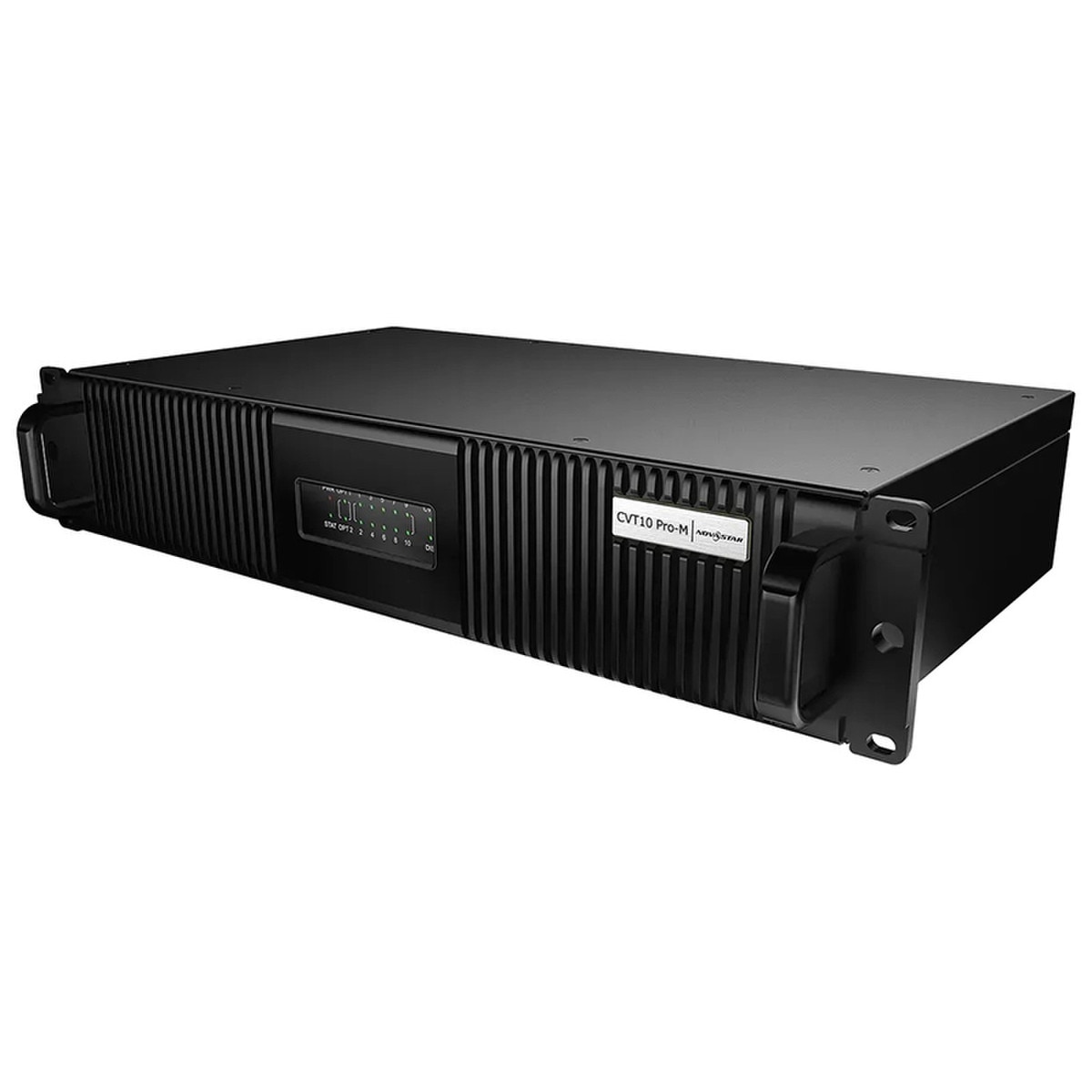

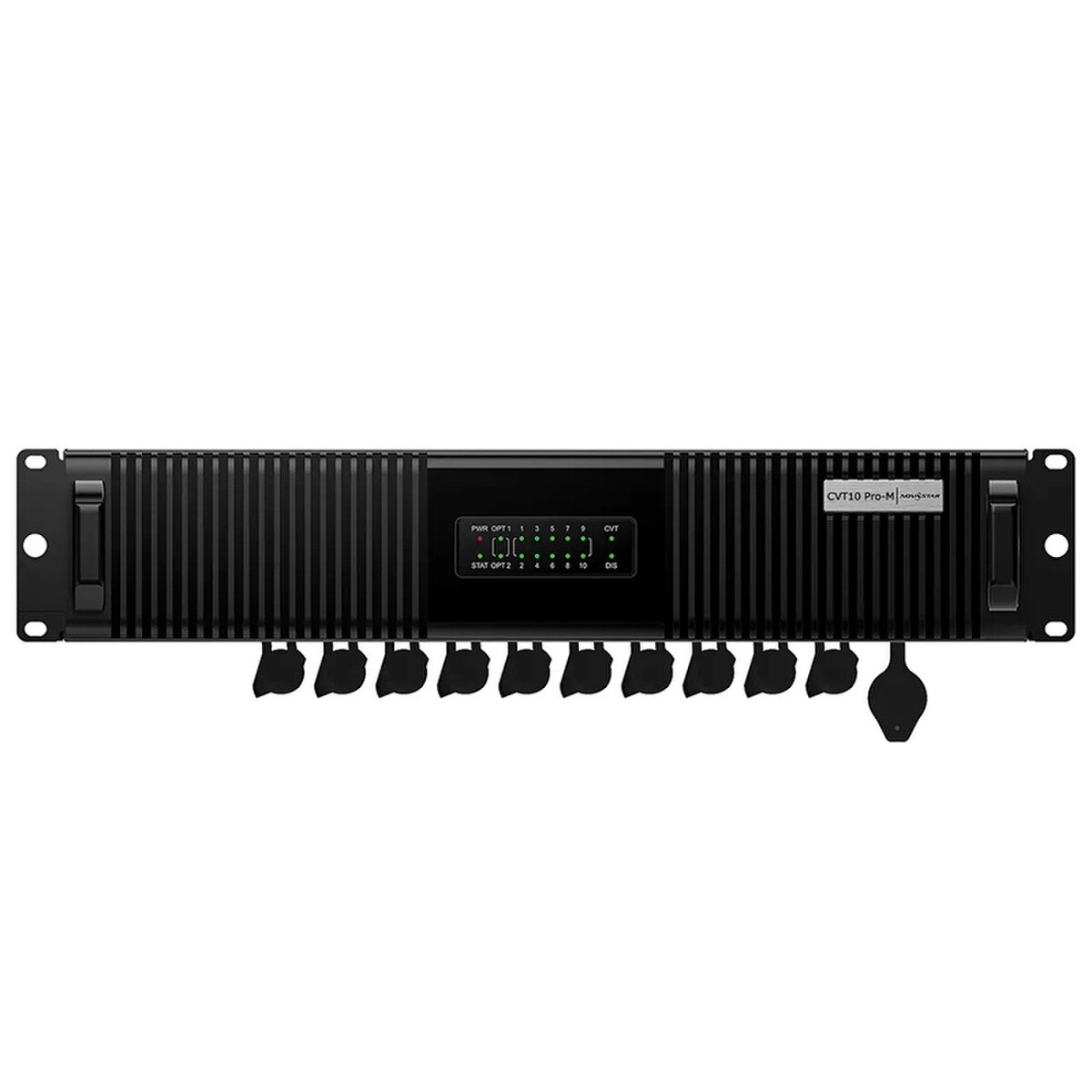

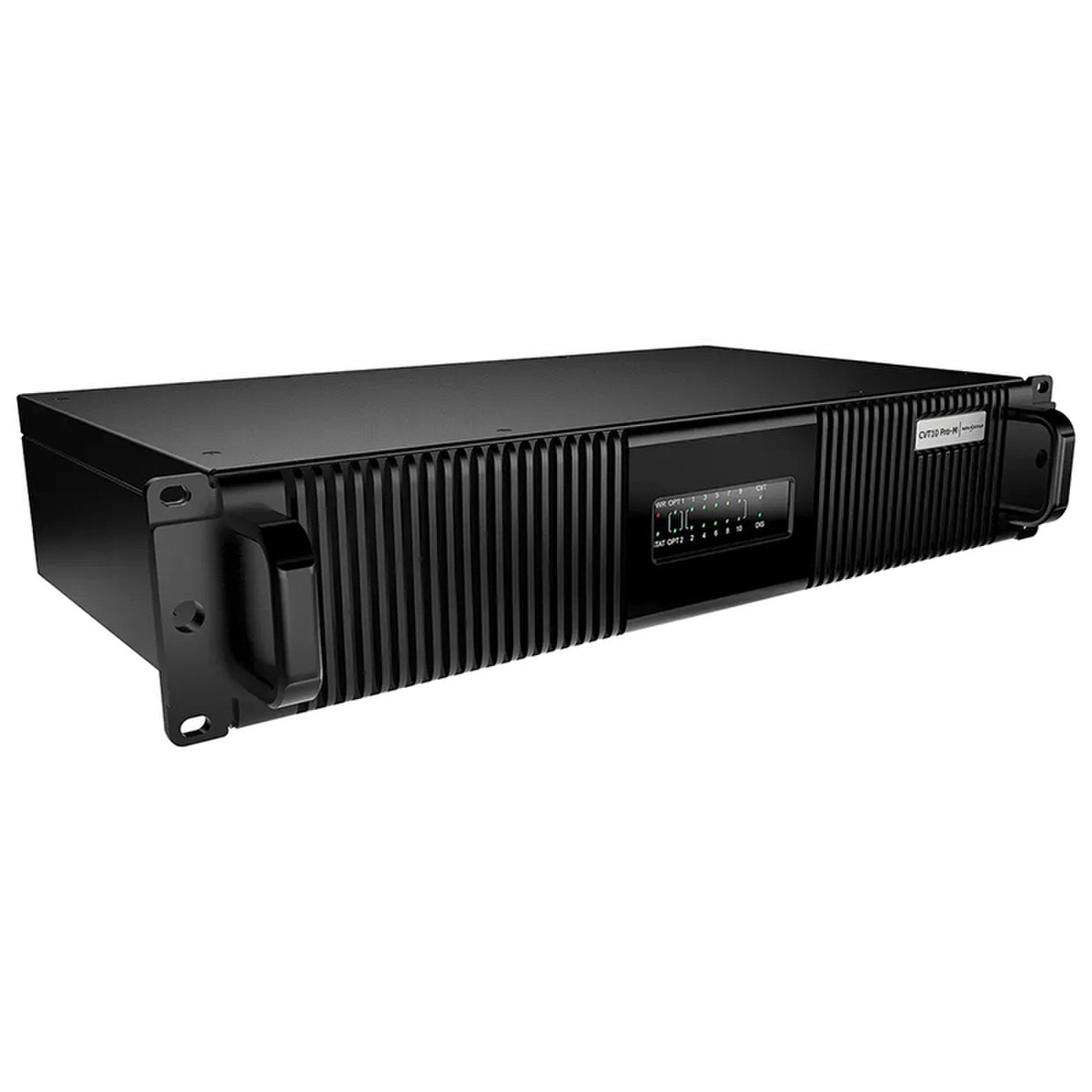

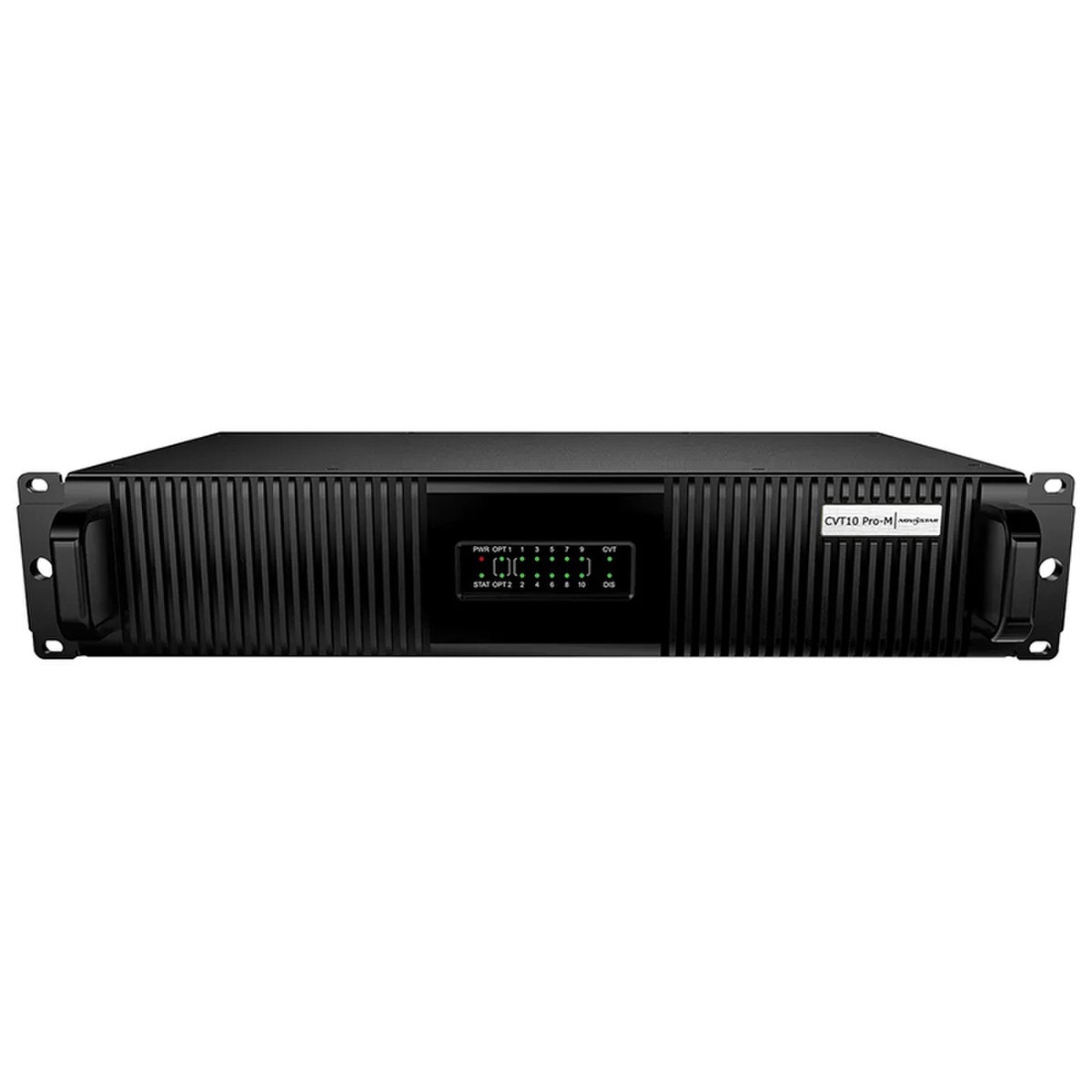

NovaStar CVT10 Pro-M IP65 Rated Fiber Converter

At A Glance:

• 2x optical ports with bandwidth of up to 10 Gbit/s
• 10x Gigabit Ethernet ports, bandwidth up to 1 Gbit/s
• IP65 rated, suitable for outdoor use

Tech Specs

Efficient Data Transmission:

CVT10 Pro-M (multi-mode) meets the needs of various long-distance transmission scenarios and works with all NovaStar™ processors. It supports 10x Gigabit Ethernet ports when working with MX40 Pro, and 8x Gigabit Ethernet ports while paired with other controllers.

IP65, Outdoor Rated:

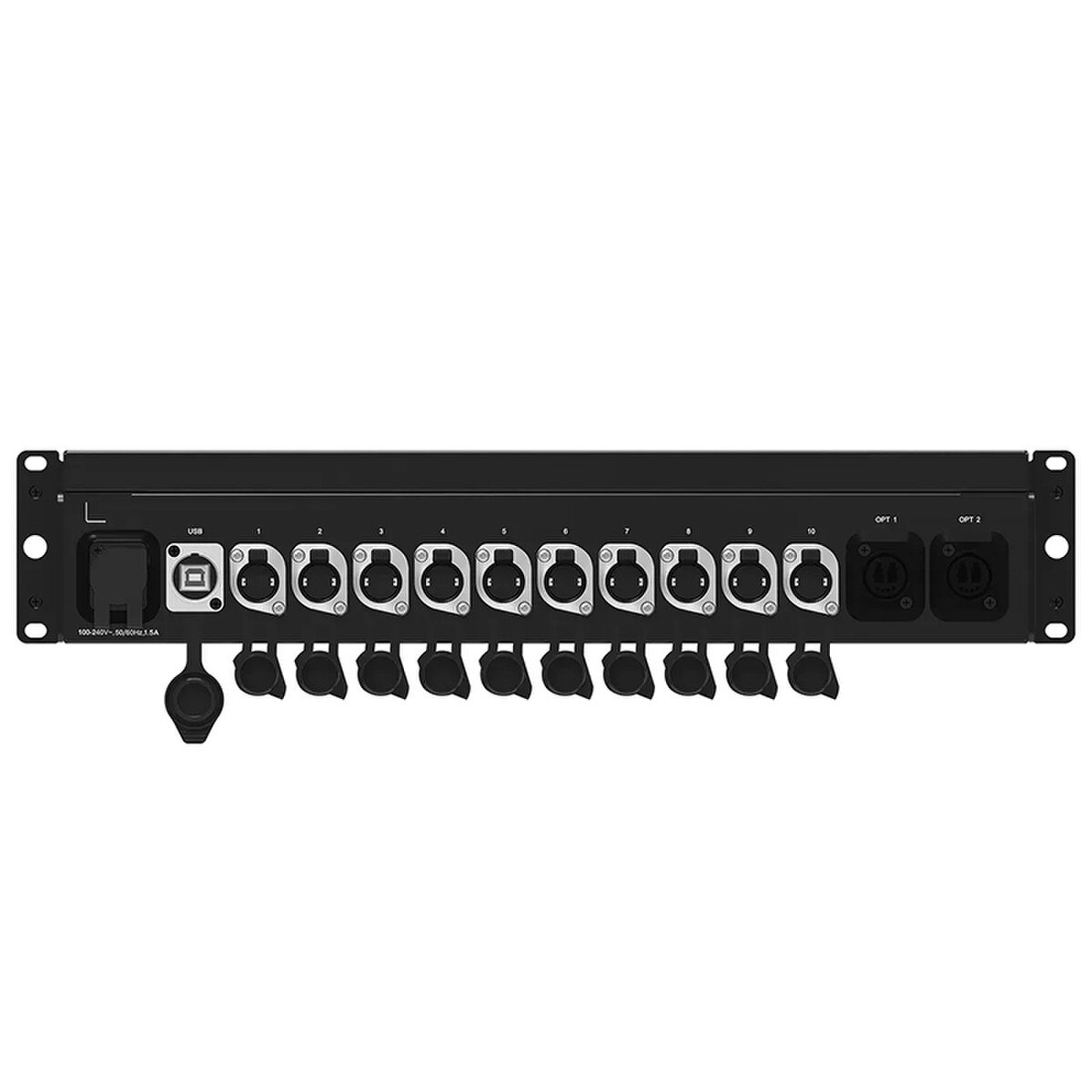

This 19-inch 2U rack mount device is also suitable for outdoor operation with an IP65 rating. It meets or exceeds all IP65 requirements in use, or while the protective covers are closed on its Neutrik™ power socket, USB port, network ports, or while its two fiber optic ports are connected.

Power & Current:

• Input voltage: 100-240 VAC, 50/60Hz
• Consumption: 22W

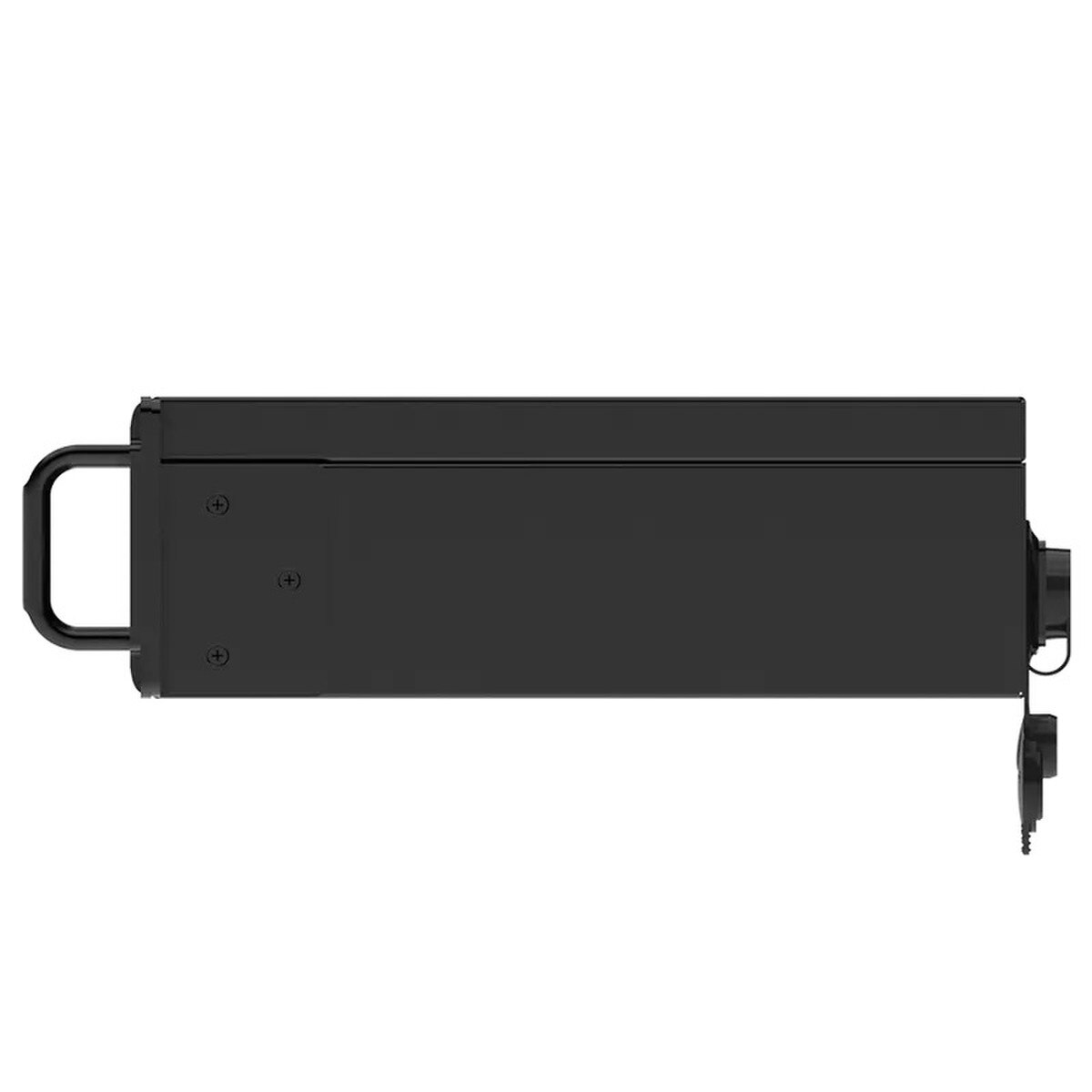

Dimensions:

• 3.5" x 19" x 11"
• 13lbs

General Specs:

• Multi-mode, twin-core
• Transmission rate: 9.95 Gbit/s to 11.3 Gbit/s
• Distance: 300 m
• Hot swappable optical module
• Wavelength: 850 nm

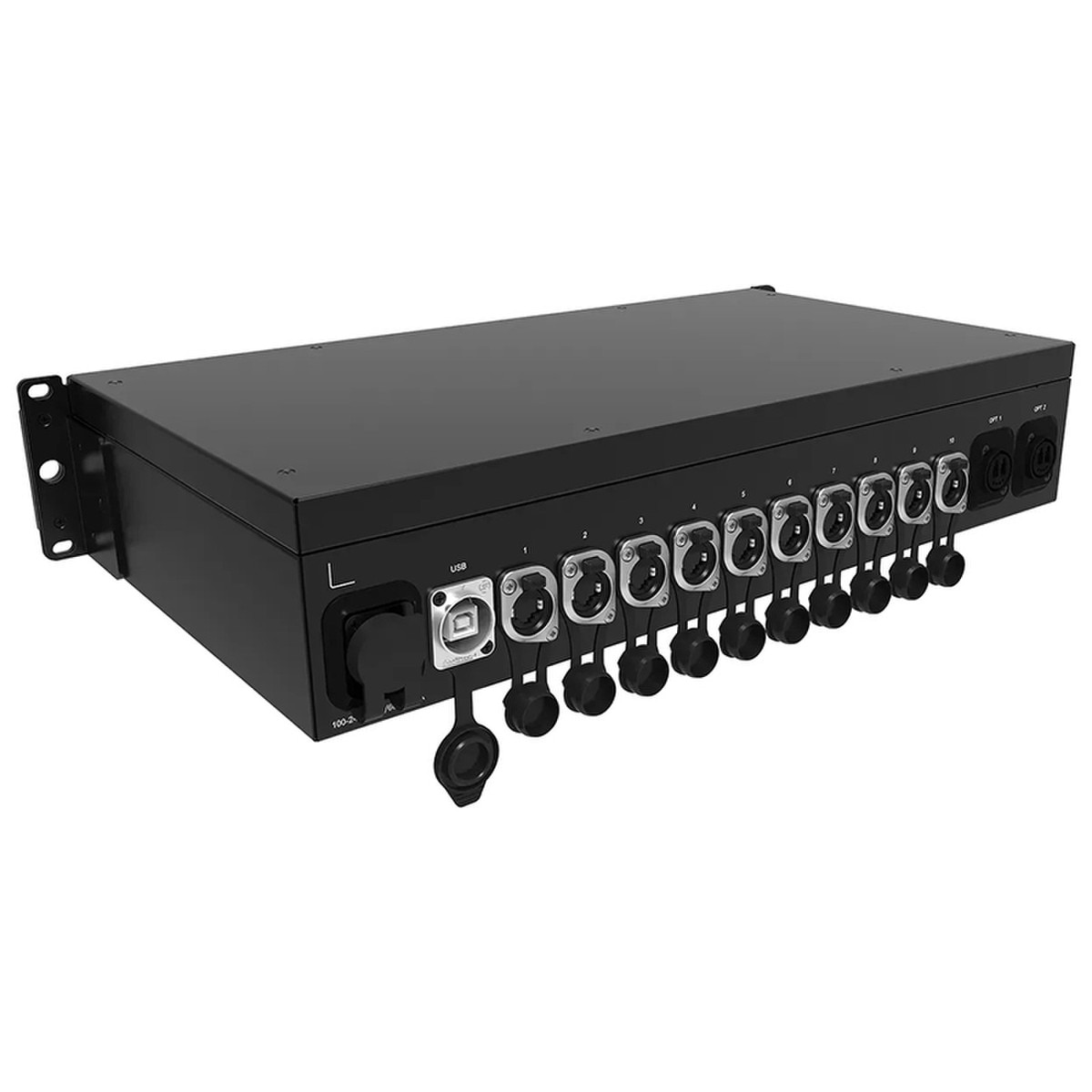

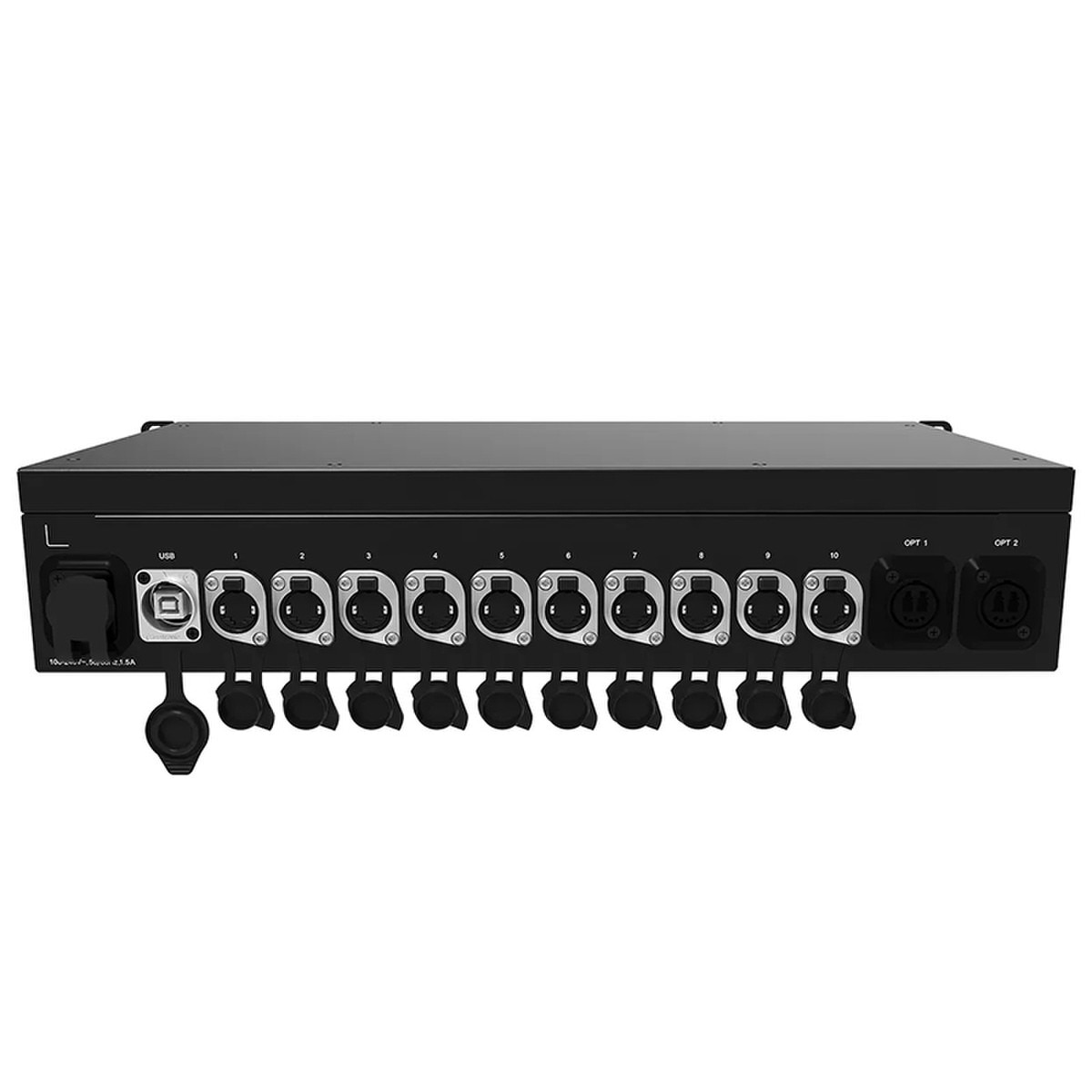

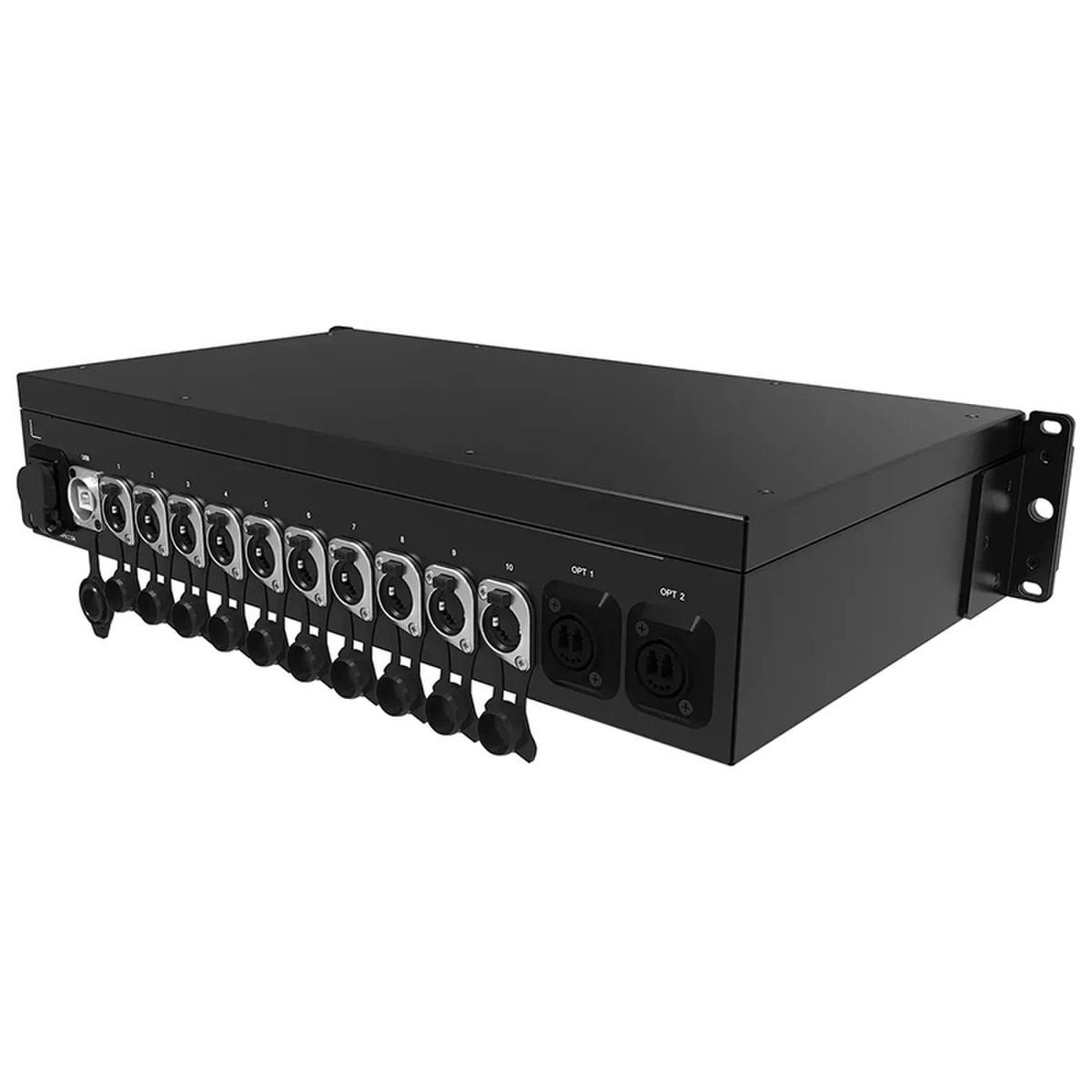

Connectors:

• 10x Gigabit Ethernet ports
• 1x Type-B USB control port
• 2x 10G optical ports

Warranty:

• 3 Year
