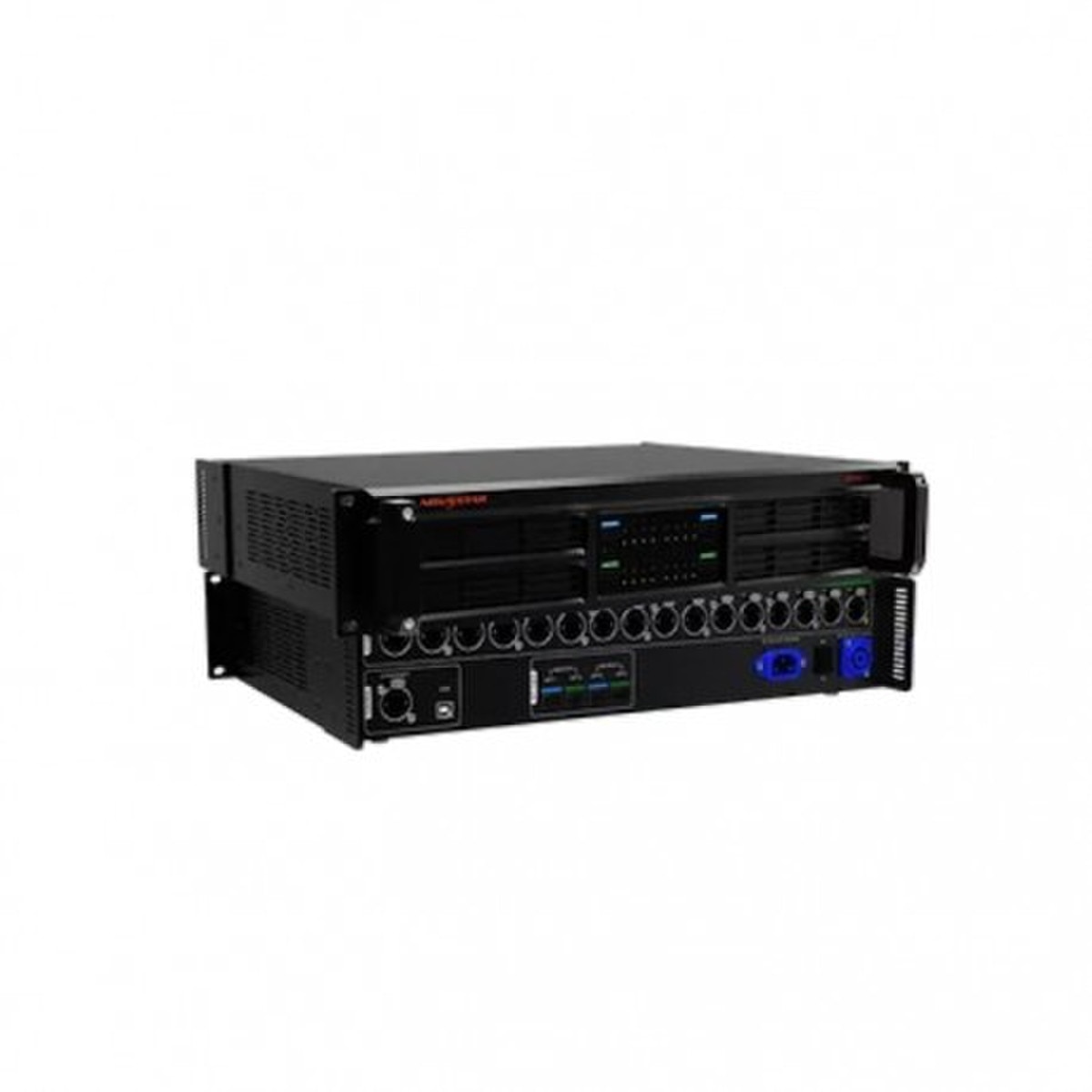

NovaStar CVT4K-S Fiber Converter

The CVT4K-S is a high-performance fiber converter developed by NovaStar independently. Featuring photoelectric conversion of signals, the CVT4K-S realizes signal transmission via optical fiber and twisted pair. It allows long-distance signal transmission that is stable and not be easily interfered. Being easy to use, the CVT4K-S makes it convenient to connect terminal devices as well as simpler for
onsite wiring connections.

Features

• Supports 16 Neutrik Ethernet inputs and outputs
• Supports 4 optical fiber inputs and outputs. Two of them are master inputs and outputs and the other two are the backups
• Features dual-power redundancy backup inside for more stability and reliability
• Features 2 types of power connectors (3-pin power socket and PowerCON), satisfying different needs of customers.
• Features various indicators on the front panel, showing device statuses clearly
• Features USB and Ethernet control connectors, making it more flexible and much easier to connect the control computer

Specifications

• Input Voltage: 100–240 VAC, 50/60 Hz
• Rated Power Consumption: 10 W
• Operating Temperature: –20°C to 60°C
• Storage Temperature: –20°C to 70°C
• Operating Hu(more...)
