NovaStar CX40 Pro

(0)No Reviews yet
$10,582.00
SKU: NovaStar CX40 Pro

Details

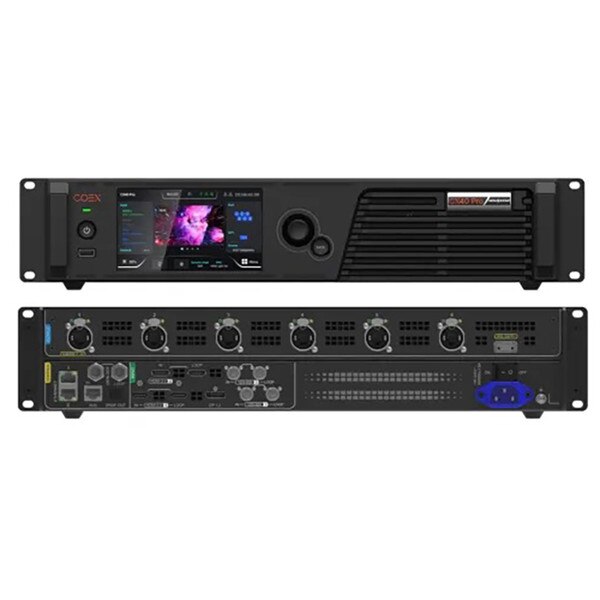

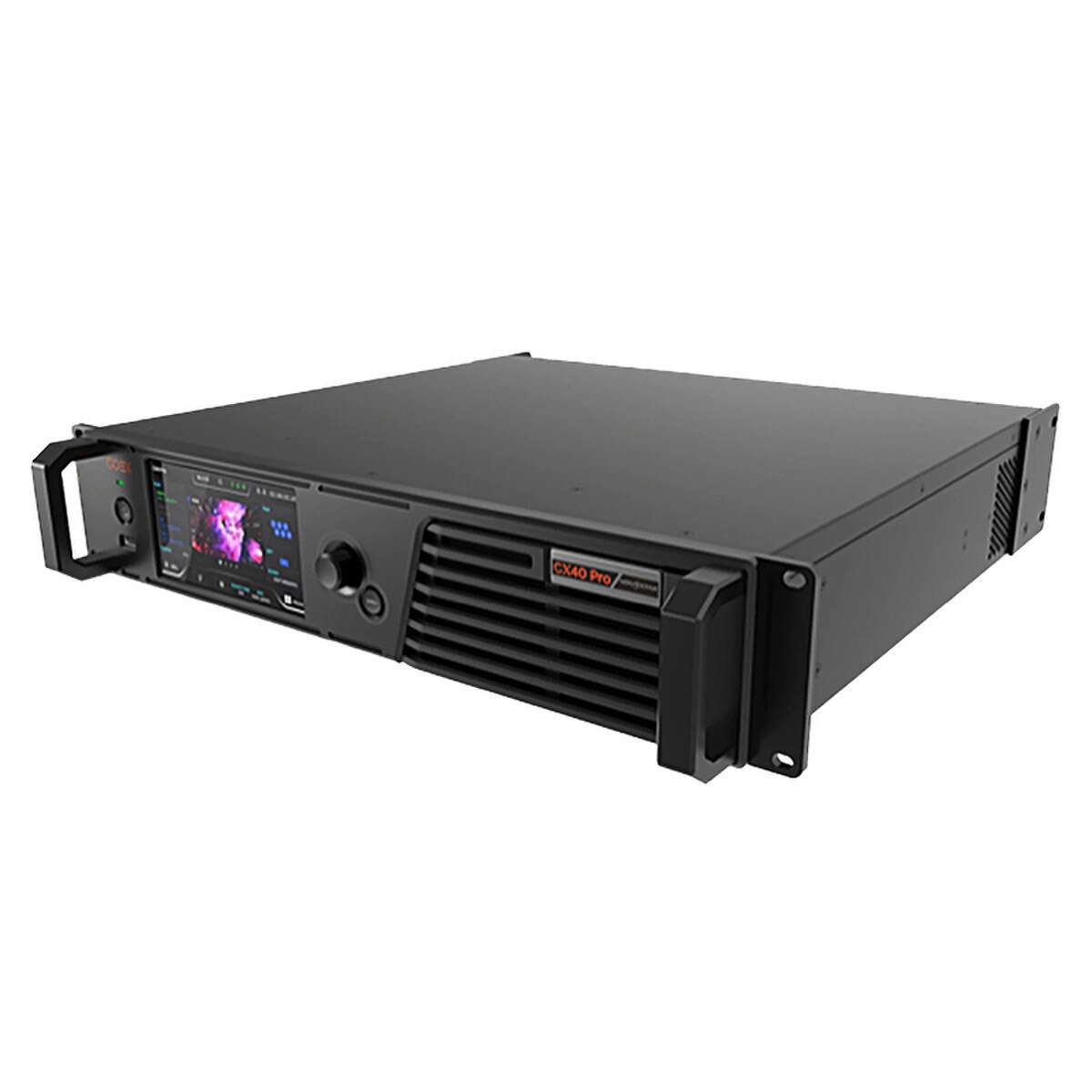

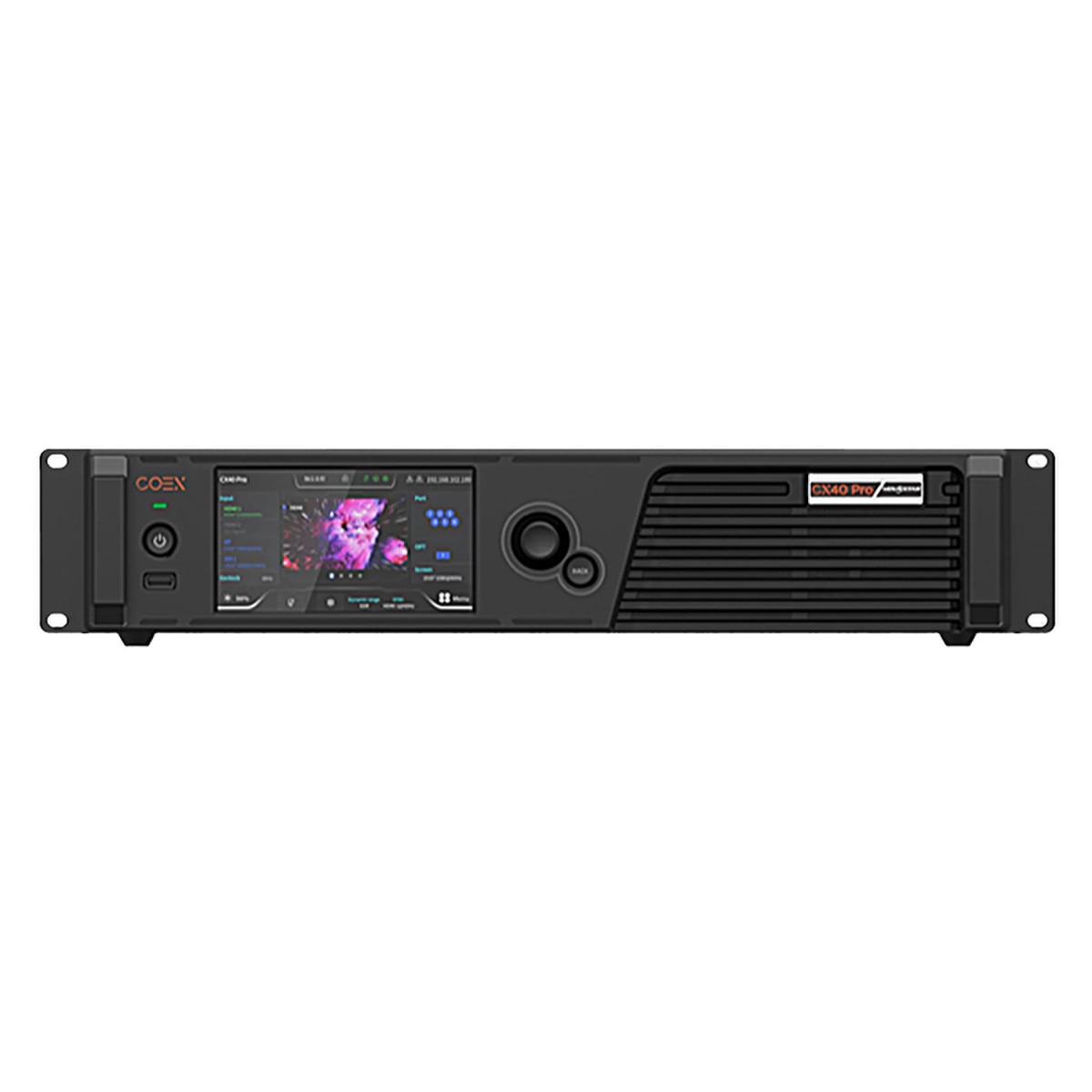

The CX40 Pro is a 4K LED display controller in the brand-new COEX series. This controller offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI) and supports 5Gbps output via Ethernet port and 40Gbps remote transmission via optical port.

It also works with NovaStar's new VMP software.

The CX40 PRO includes features such as:

  • Genlock
  • Image Scaling
  • Color Replacement
  • 14CH Color Correction
  • 3D LUT
  • Dynamic Booster
  • Full Greyscale Calibration
  • HDR
  • Low Latency (1 frame in All-In-One Controller working mode)
  • Frame Rate Adaptive


NOTE: The CX40 PRO controller is only compatible with 5G receiving cards

Function Limitations:

The Frame Rate Adaptive function only works with the CA50E, CA50C, and XA50 receiving cards. Currently supported driver ICs include MBI5264, ICND2055, ICND2065, and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.


The Dynamic Booster function only works with the CA50E, CA50C, and XA50 receiving cards. Before operation, brightness correction by using the CA410-VP427, CA410-P427, or EYE2-400 color analyzer is recommended.


The Full Grayscale Calibration function only works with the CA50E and CA50C receiving cards.


Using the HDR function reduces the CX40 load capacity by less than half when the CX40 works with the CA50E, CA50C, and XA50 receiving cards.

Built-In Scaling (Auto Fit Content to Wall):

  • Yes

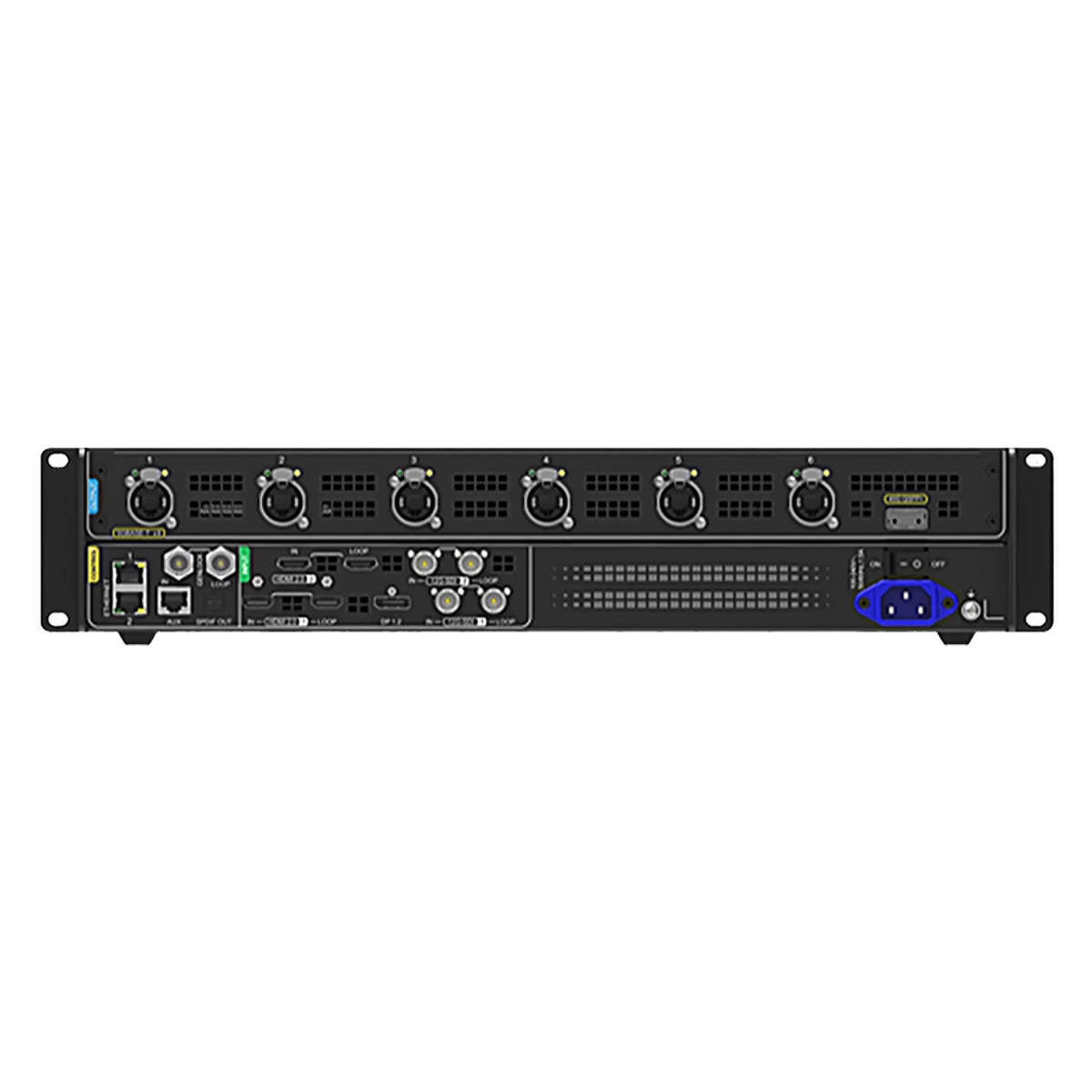

Inputs:

  • 2x HDMI 2.0
  • 1x DP 1.2
  • 2x 12G-SDI

Outputs:

  • LED Outputs - 6

Genlock:

  • Yes

Built In Fiber Slots:

  • Yes - 1x 40G OPT Ports

Control:

  • Ethernet(2x ports)

Loading Capacity:

  • Max Pixels Per LED Output at 60Hz: 2,592,000 pixels (8-bit), 2,073,000 pixels (10-bit), or 1,728,000 pixels (12-bit)

Total Pixel Load Capacity:

  • 9 Million pixels

Maximum Input Resolution:

  • 4096 x 2160


NovaStar CX40 Pro User Manual.pdf
NovaStar CX40 Pro Controller Specifications.pdf
