NovaStar CX80 Pro-124463

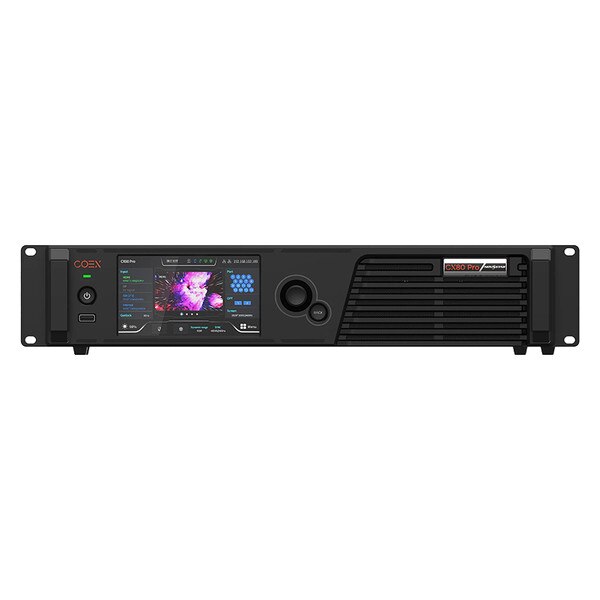

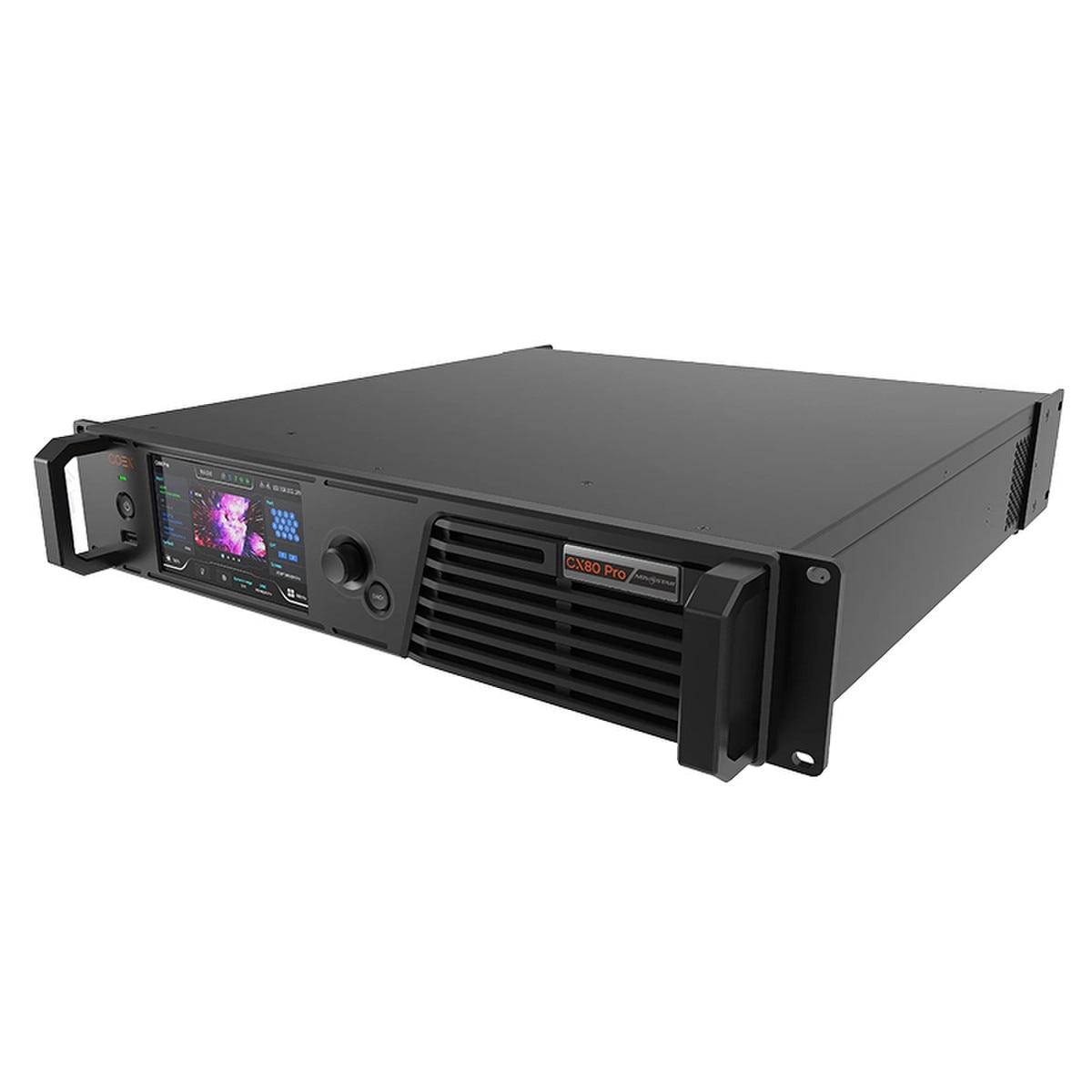

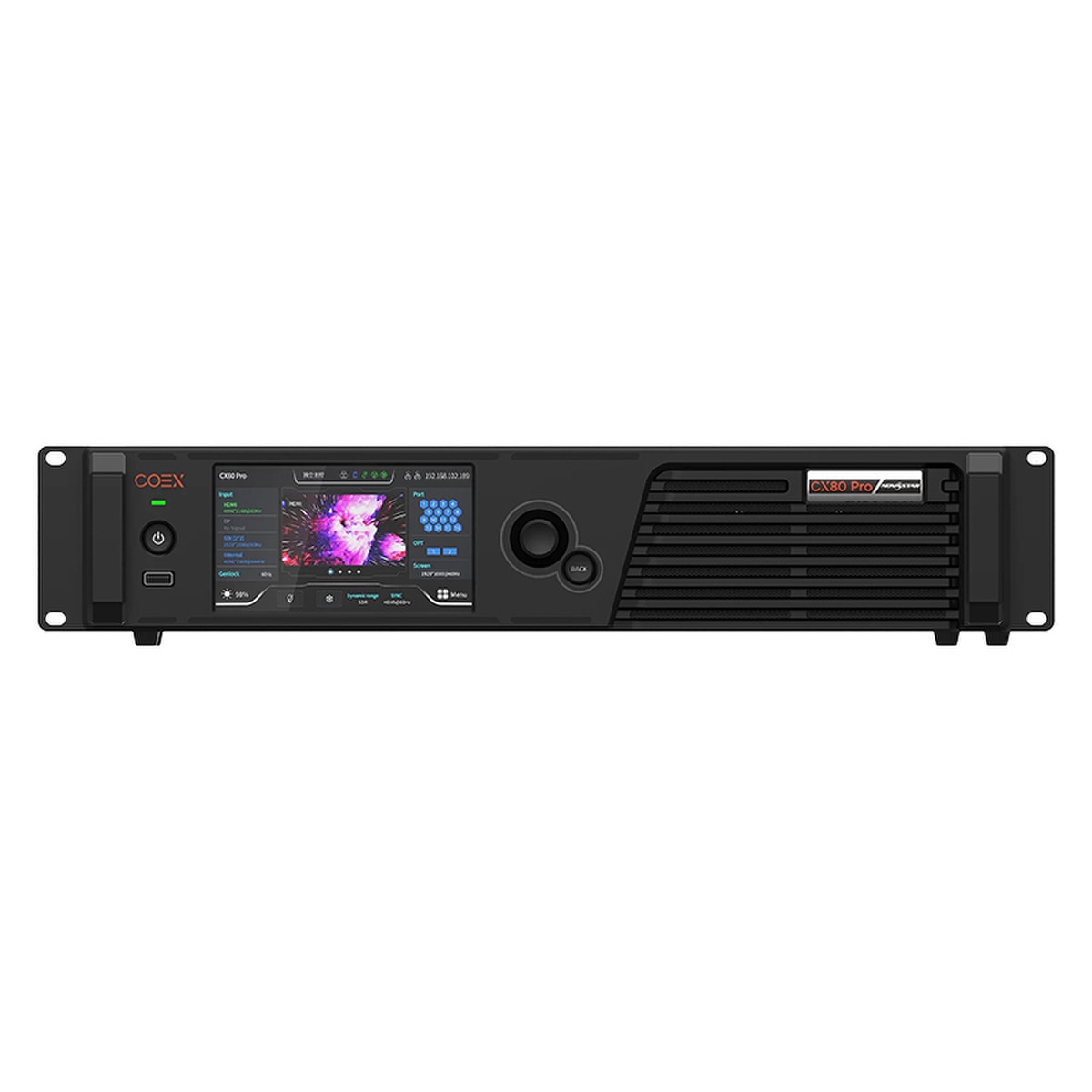

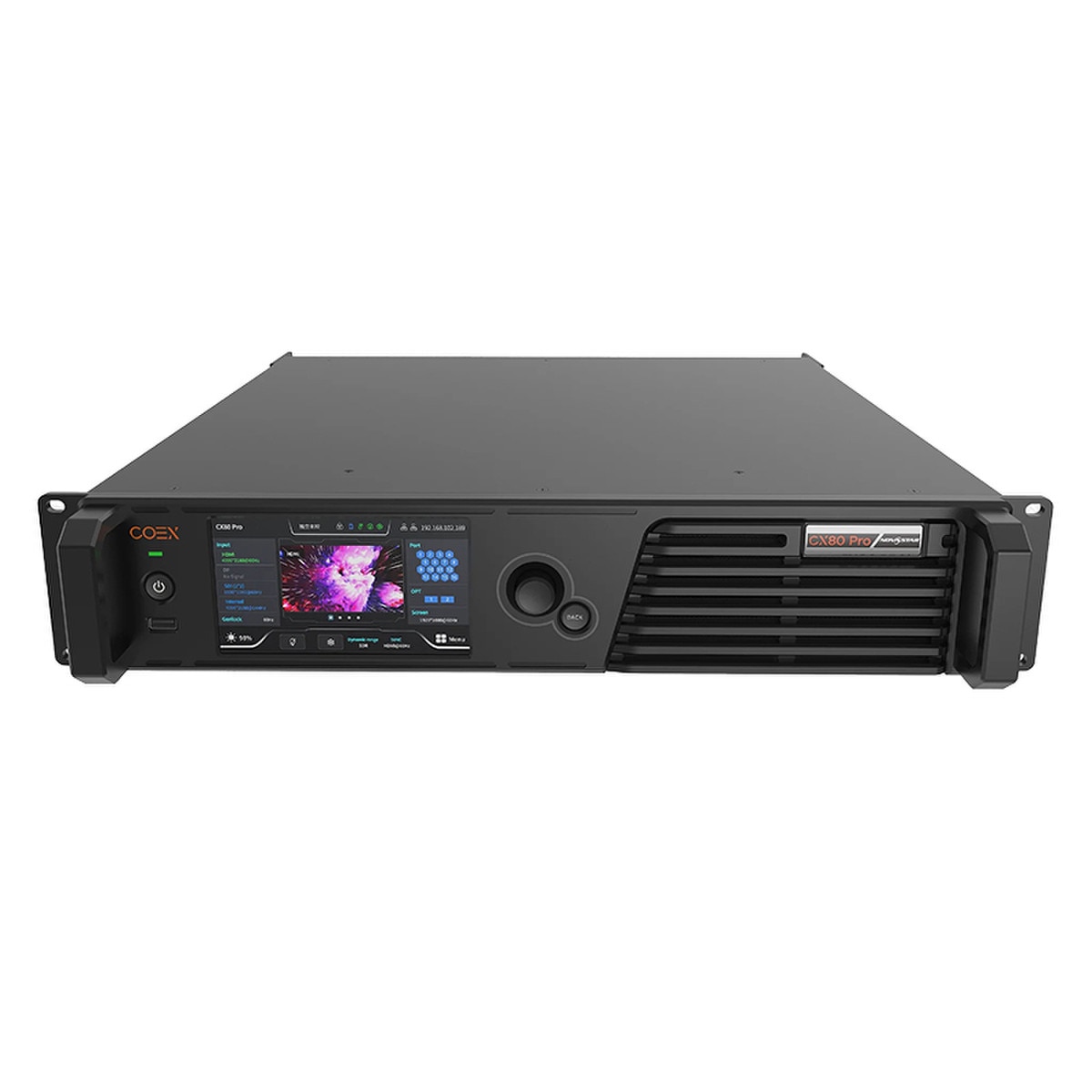

The CX80 Pro is NovaStar's new 8k LED display controller in their new COEX series. This controller offers rich video input connections (HDMI 2.0, HDMI 2.0, DP 1.4, and 12G-SDI) and supports 5Gbps output via ethernet ports. It also works with NovaStar's new VMP software.

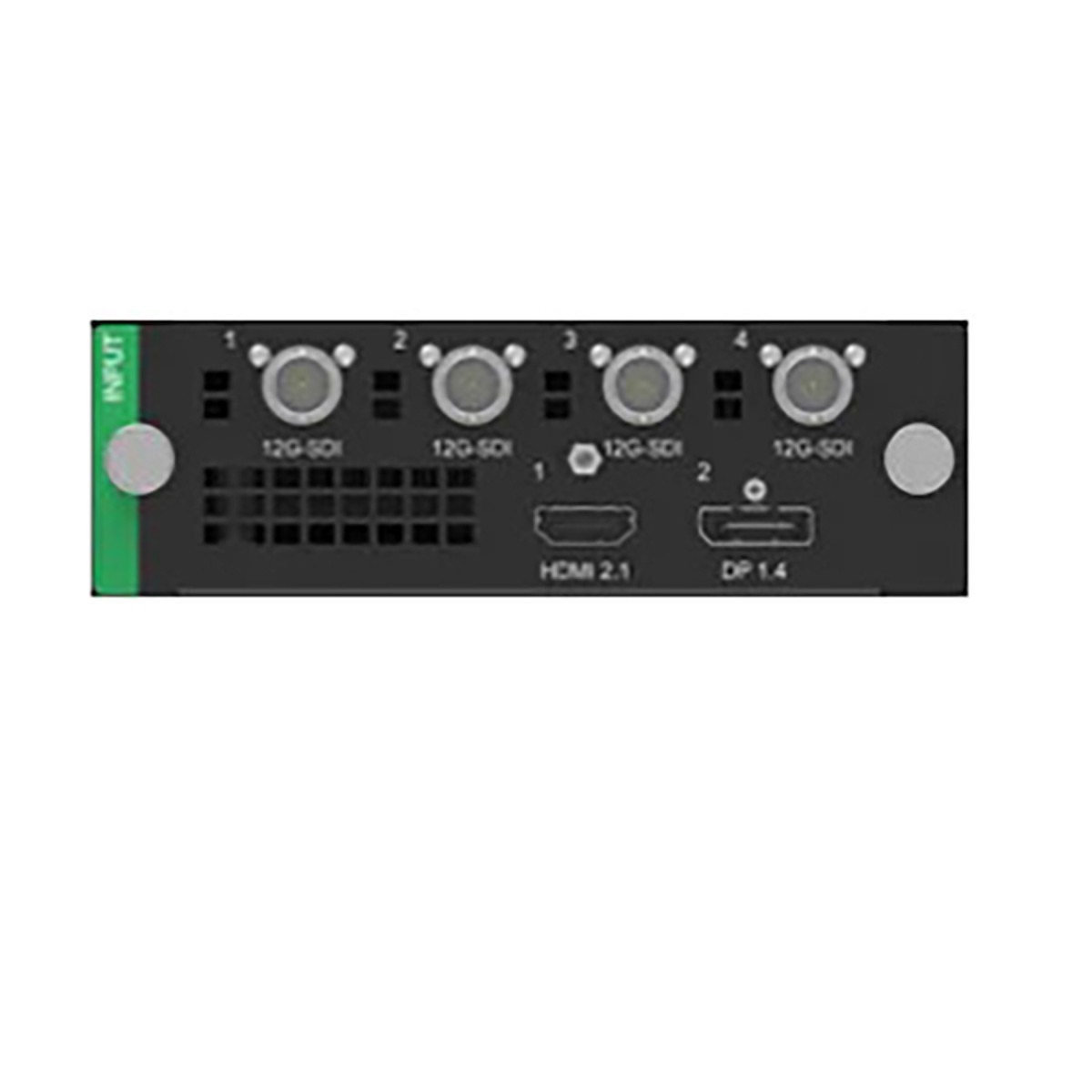

Option 1 Input card for NovaStar CX80 PRO controller:

• 8K@60Hz Max

Included Connectors:

• 1X HDMI 2.1
• 1X DP 1.4
• 4X 12G-SDI
• NOTE: The CX80 PRO controller is only compatible with 5G receiving cards

The CX80 PRO includes features such as:

• Genlock
• Image Scaling
• Color Replacement
• 14CH Color Correction
• 3D LUT
• Dynamic Booster
• Full Greyscale Calibration
• HDR
• Low Latency (1 frame in All-In-One Controller working mode)

Built in Scaling (Auto Fit Content to Wall):

• Yes

Inputs:

• 1x HDMI 2.1
• 1x DP 1.4
• 4x 12G-SDI
• 4x HDMI 2.0
• 4x 12G-SDI

Outputs:

• LED Outputs - 16

Genlock:

• Yes

Image Mosiac (Mult. Processors on 1 Wall):

• Yes

Built in Fiber Slots:

• Yes - 2 40G OPT Ports

Control:

• Ethernet (2x ports)

Loading Capacity:

• Max Pixels per LED Output at 60Hz: 2,592,000 pixels (8-bit), 2,073,000 pixels (10-bit), or 1,728,000 pixels (12-bit)

Total Pixel Load Capacity: 35,389,440 pixels

• Maximum Input Resolution: 7680 x 4320 using HDMI 2.1 Input
• Max Output Width/Height: 32,768 pixels x 32,768 pixels (W x H or H x W)
